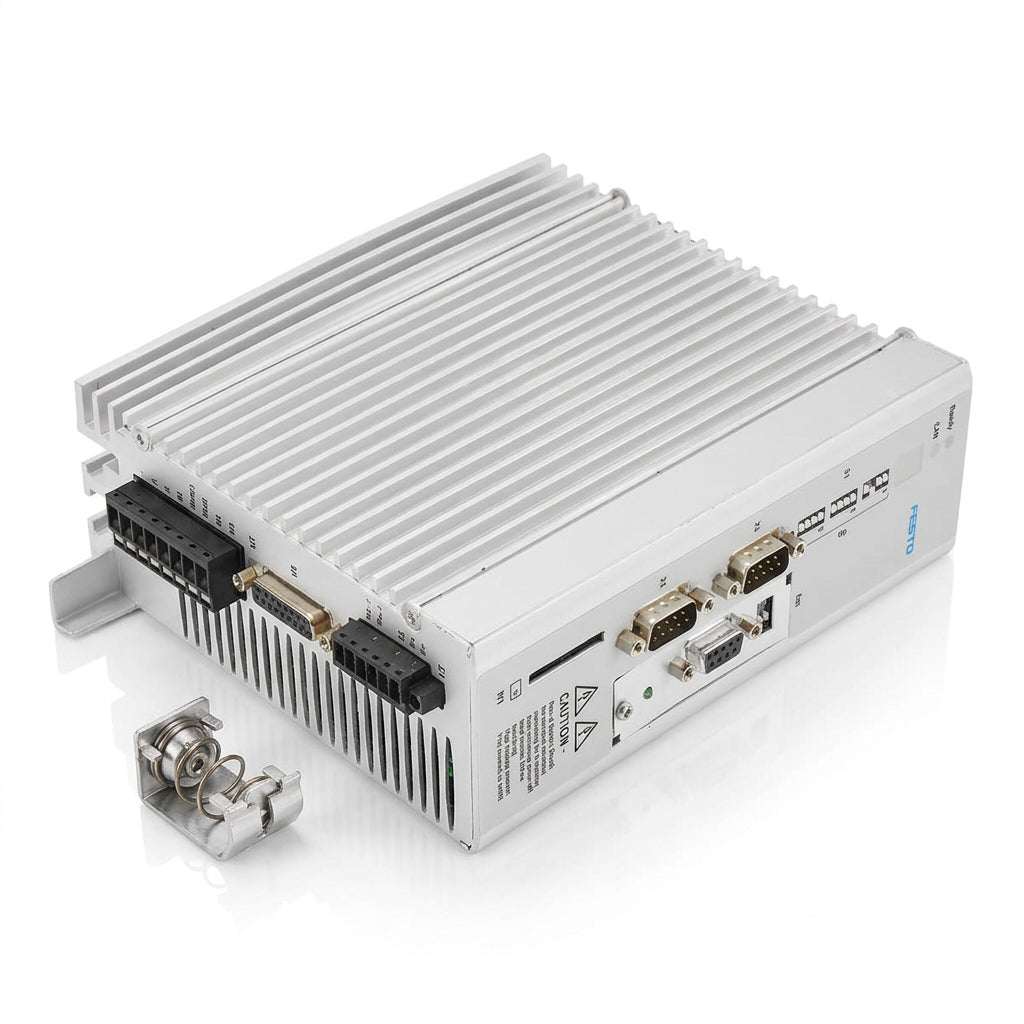

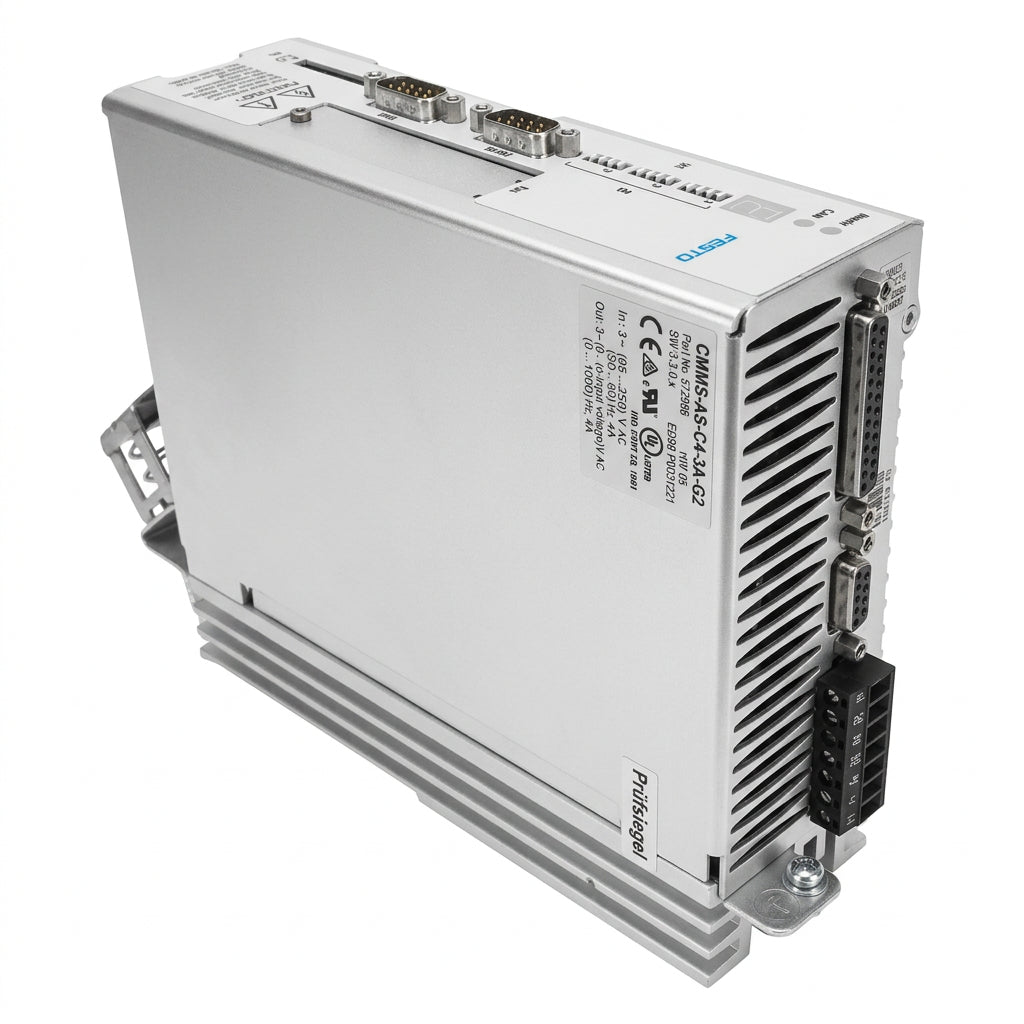

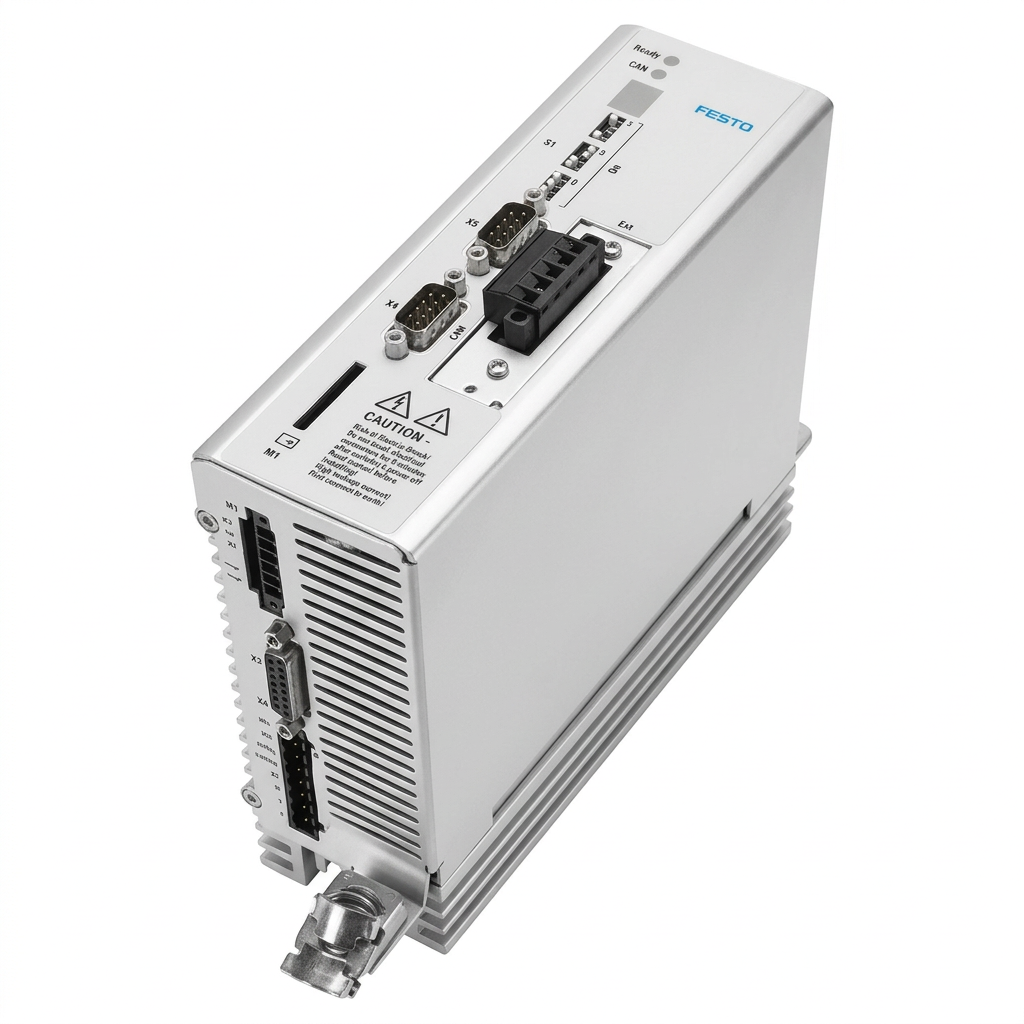

Festo CMMS-AS-C4-3A-G2 Servo Motor Controller 230 V AC 4 A
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CMMS-AS-C4-3A-G2
Description
The Festo CMMS-AS-C4-3A-G2 is a servo motor controller designed to regulate motor position, speed, and current in industrial automation systems. Rated for a nominal output current of 4 A and single-phase AC input, it supports precise motion control, integrated safety functions, and communication with compatible automation controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Industrial Automation & Control |
| Part Number | CMMS-AS-C4-3A-G2 |
| Subcategory | Servo Motor Controllers |
| Manufacturer Part Number | 572986 |
| Product Type | Servo motor controller |
| Compatible Motor Type | AC synchronous servo motors |
| Nominal Input Voltage | 230 V AC, single-phase |
| Input Voltage Range | 95–250 V AC |
| Line Frequency | 50–60 Hz |
| Nominal Output Current | 4 A |
| Peak Output Current | 10 A |
| Nominal Controller Power | 600 VA |
| Peak Power | 1,200 VA |
| Output Frequency | 0–1,000 Hz |
| Logic Supply Voltage | 24 V DC |
| Integrated Safety Function | Safe Torque Off (STO) |
| Safety Classification | Category 3, Performance Level d |
| Integrated Communication | CANopen, RS-485 |
| Parameterization Interface | RS-232 |
| Digital Inputs | 14 |
| Digital Outputs | 5 logic outputs |
| Display | Seven-segment diagnostic display |
| Mounting | Mounting plate, bolted |
| Protection Rating | IP10 / IP20, depending on the specified protection area |
| Operating Temperature | 0–50 °C |
| Weight | 3.13 lb |
Information About CMMS-AS-C4-3A-G2
The CMMS-AS-C4-3A-G2 belongs to Festo’s CMMS-AS series of controllers for AC synchronous servo motors and carries manufacturer part number 572986. It operates with a nominal 230 V AC supply and uses a cascade control architecture with position, speed, and current regulation. Integrated CANopen and RS-485 interfaces support communication with compatible automation equipment, while optional interface modules provide PROFIBUS DP or DeviceNet connectivity. Its Safe Torque Off (STO) function is rated Category 3, Performance Level d, when correctly integrated into a suitable safety system.
Key Features:
-
Servo Motor Control: Designed to control compatible AC synchronous servo motors.
-
4 A Nominal Output Current: Supports motor applications within the controller’s specified electrical limits.
-
230 V AC Input: Operates from a single-phase supply with an input range of 95–250 V AC.
-
Cascade Control Architecture: Combines position, speed, and current control for motion regulation.
-
Integrated STO Safety Function: Provides Safe Torque Off with Category 3, Performance Level d classification under the specified safety requirements.
-
Industrial Communication: Includes CANopen and RS-485 interfaces, with optional PROFIBUS DP and DeviceNet modules.
-
Multiple I/O Options: Provides digital and analog inputs and outputs for machine control and monitoring.
-
Diagnostic Display: Uses a seven-segment display to show operating and fault information.
The CMMS-AS-C4-3A-G2 delivers controlled servo motion for industrial machinery, automated production lines, positioning systems, and precision handling equipment.
