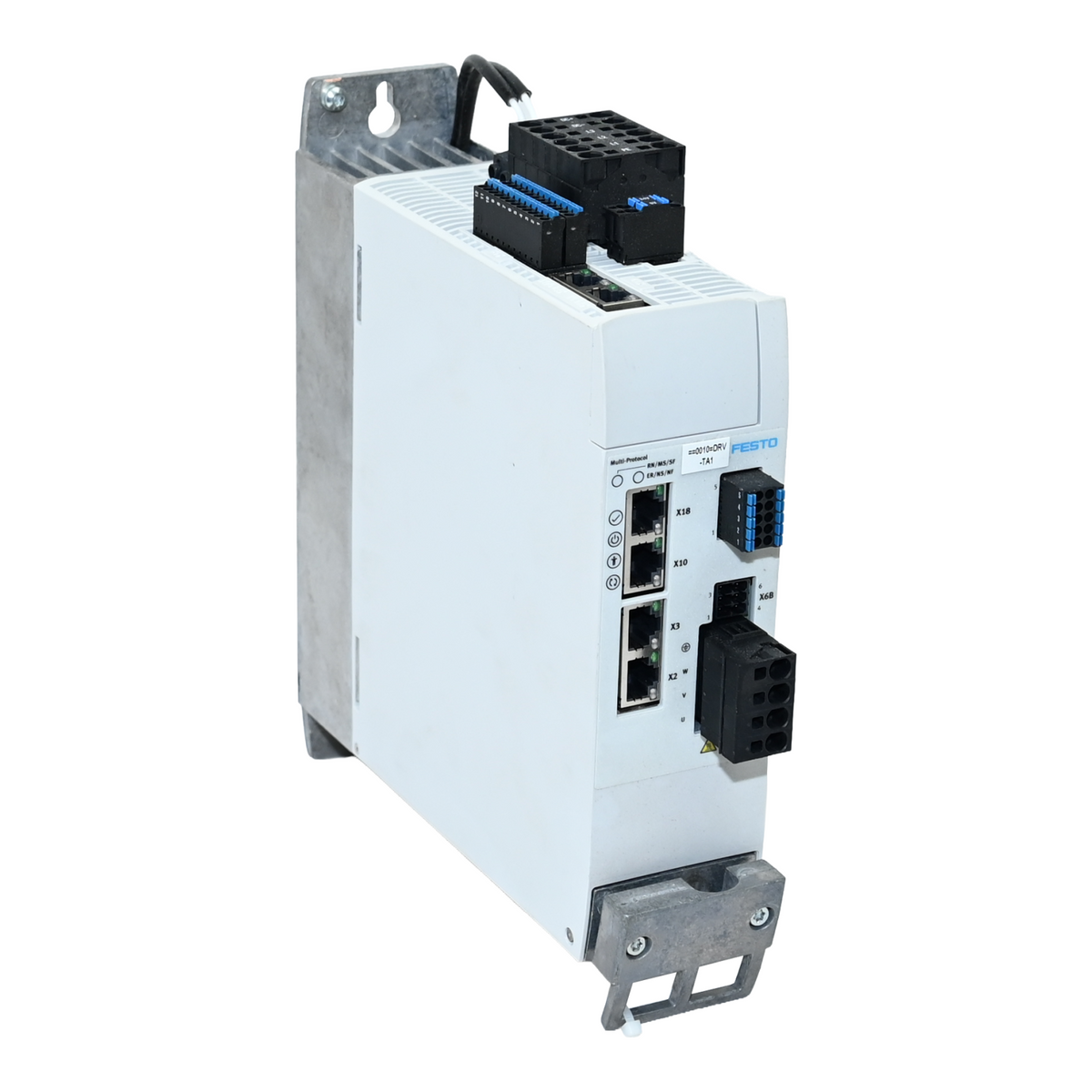

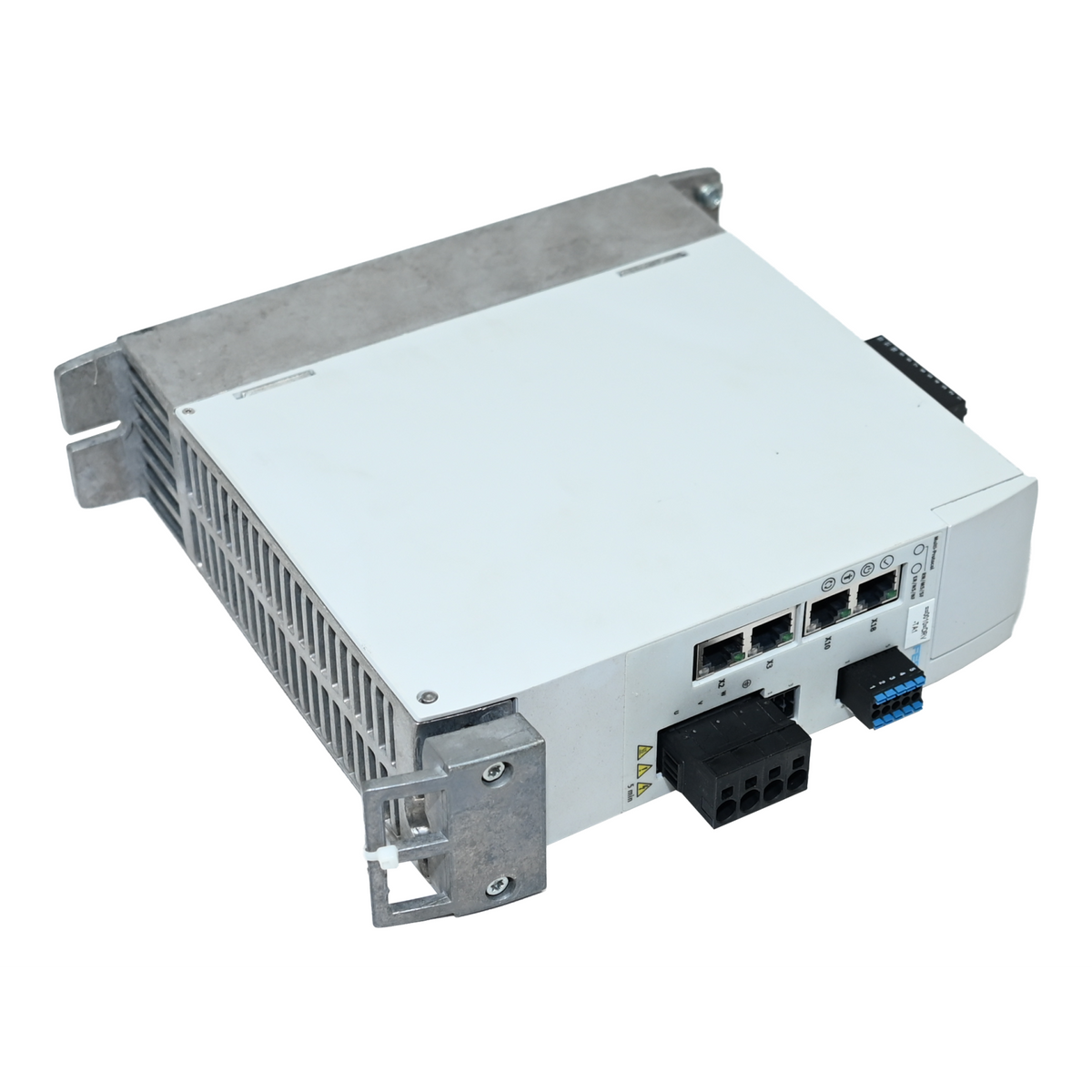

Festo CMMT-AS-C5-11A-P3-MP-S1 Multi-Protocol Servo Drive
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CMMT-AS-C5-11A-P3-MP-S1
Description
The Festo CMMT-AS-C5-11A-P3-MP-S1 is a servo drive for controlling compatible motors in automated positioning and motion systems. It provides field-oriented control and supports multiple industrial Ethernet protocols for integration with machine controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Servo Products |
| Part Number | CMMT-AS-C5-11A-P3-MP-S1 |
| Subcategory | Servo Drive/Servo Control |
| Manufacturer Part Number | 8143167 |
| Series | CMMT-AS |
| Nominal Supply | 400 V AC, three-phase, ±10% |
| Logic Supply | 24 V DC, ±20% |
| Nominal Controller Power | 2,500 W |
| Peak Power | 7,500 W |
| Nominal Output Current | 5 A RMS per phase |
| Peak Output Current | 15 A RMS per phase; maximum duration 2 s |
| Control Method | Field-oriented control |
| Fieldbus Protocols | EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT/RT |
| Fieldbus Connections | 2 RJ45 ports |
| Encoder Support | BiSS-C, EnDat 2.1/2.2, HIPERFACE, incremental, Nikon, SIN/COS |
| Analog Setpoint Input | 1 differential input, ±10 V |
| Protection Rating | IP20 |
| Operating Temperature | 0–50 °C; power derating of 3%/°C above 40 °C |
| Weight | 2.2 kg |
Information About CMMT-AS-C5-11A-P3-MP-S1
The CMMT-AS-C5-11A-P3-MP-S1 is part of the Festo CMMT-AS series and operates from a nominal 400 V AC three-phase supply. A separate 24 V DC logic supply powers its control electronics. Its encoder interfaces support several feedback technologies for closed-loop motor operation. The drive mounts vertically on a mounting plate and provides LED status indication for commissioning and diagnostics.
Key Features:
- Servo Motor Control: Uses field-oriented regulation for compatible industrial motion applications.
- Nominal Output: Provides a controller power rating of 2.5 kW.
- Overload Capability: Supports 15 A RMS peak current per phase for up to two seconds.
- Multi-Protocol Connectivity: Supports EtherCAT, EtherNet/IP, Modbus/TCP, and PROFINET communication.
- Encoder Compatibility: Accepts multiple feedback types, including BiSS-C, EnDat, and incremental encoders.
- Ethernet Commissioning: Provides TCP/IP connectivity for parameterization and setup.
- Analog Setpoint Input: Accepts a differential ±10 V command for speed or current/force control.
- Cabinet Installation: Features IP20 protection and screw-mounted installation on a mounting plate.
The CMMT-AS-C5-11A-P3-MP-S1 delivers the reliability and precision required for coordinated servo motion in automated machinery.
