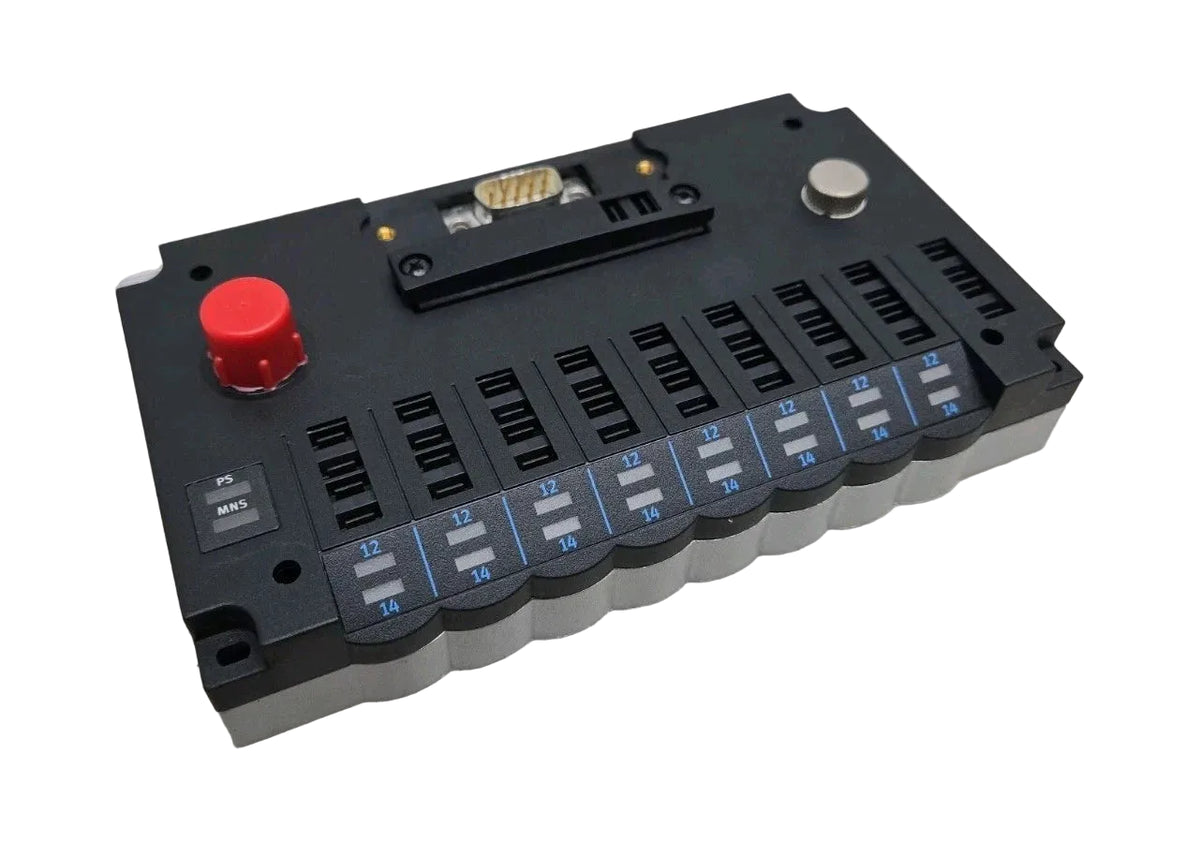

Festo CPV14-GE-DN2-8 DeviceNet Electrical Interface Module
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPV14-GE-DN2-8
Description
The Festo CPV14-GE-DN2-8 is an electrical interface module designed for Festo CPV14 pneumatic valve terminals in industrial automation systems. It supports DeviceNet communication and provides connectivity for up to 16 inputs and 8 outputs, or up to 16 valves, depending on the configuration. The interface supports a 24 V DC system and uses a 5-pin M12 connection option for fieldbus communication.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Valves |
|
Part Number |
CPV14-GE-DN2-8 |
|
Subcategory |
Valve Interfaces |
|
Manufacturer Part Number |
525878 |
|
Series |
CPV14 |
|
Application |
Pneumatic valve terminal control |
|
Fieldbus Protocol |
DeviceNet |
|
System Voltage |
24 V DC |
|
Input Capacity |
Up to 16 inputs |
|
Output Capacity |
Up to 8 outputs or 16 valves, depending on configuration |
|
Fieldbus Connector |
M12 × 1, 5-pin, A-coded option |
|
Alternative Connection Options |
5-pin screw terminal strip or 9-pin Sub-D socket, depending on configuration |
|
Diagnostics |
Missing module, short circuit, overload, and undervoltage monitoring |
|
Configuration Support |
EDS file and graphic symbol |
|
Weight |
0.64 lb |
Information About CPV14-GE-DN2-8
The CPV14-GE-DN2-8 belongs to Festo’s CPV14 valve-terminal system and is identified by manufacturer part number 525878. It enables communication between a compatible control system and the connected valve terminal or I/O modules. Diagnostic functions can monitor conditions such as missing modules, short circuits, overloads, and undervoltage. Configuration support includes an EDS file and a graphic symbol for integration with compatible DeviceNet control systems.
Key Features:
-
Electrical Interface: Connects a compatible controller to a Festo CPV14 valve-terminal system.
-
DeviceNet Communication: Supports fieldbus communication with compatible automation controllers.
-
Input Capacity: Supports up to 16 inputs.
-
Output Capacity: Supports up to 8 outputs or up to 16 valves, depending on configuration.
-
24 V DC System: Designed for use in compatible 24 V DC control installations.
-
M12 Connection: Supports a 5-pin M12 fieldbus connector option.
-
Diagnostic Functions: Supports monitoring for module faults, short circuits, overloads, and undervoltage.
-
Configuration Support: Provides EDS-file and graphic-symbol support for system configuration.
The CPV14-GE-DN2-8 delivers the reliability and precision required for communication and control within compatible Festo pneumatic automation systems.
