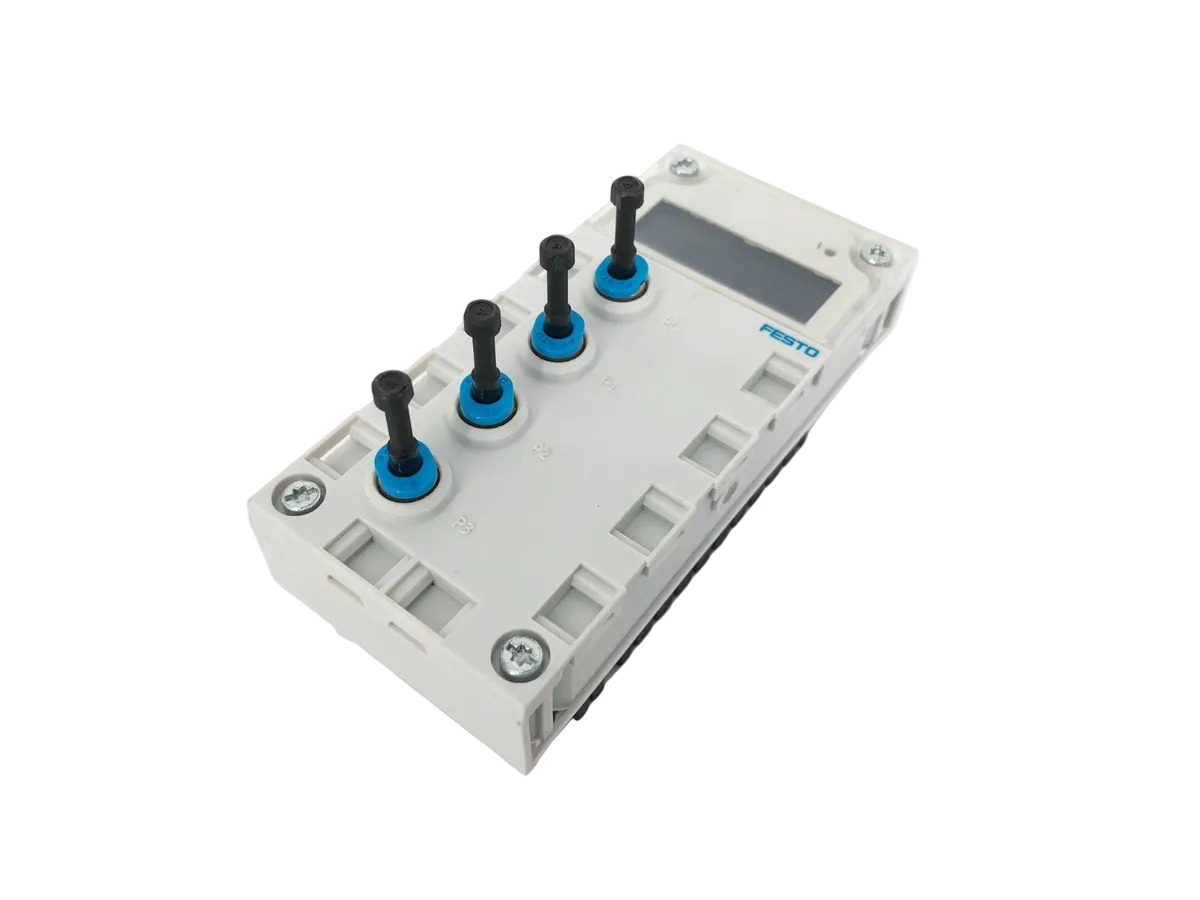

Festo CPX-4AE-P-D10 Analog Pressure Input Module
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPX-4AE-P-D10
Description
The Festo CPX-4AE-P-D10 is an analogue pressure input module designed for the Festo CPX automation platform. It provides four pressure-measurement inputs with a 0–10 bar range, enabling pneumatic pressure data to be monitored and transmitted to a compatible control system for industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Industrial Automation |
| Part Number | CPX-4AE-P-D10 |
| Subcategory | Analogue Input Modules |
| Manufacturer Part Number | 560362 |
| Module Type | Analogue pressure input module |
| Number of Inputs | 4 |
| Pressure Measurement Range | 0–10 bar |
| Differential Pressure Measurement | Up to 2 channels |
| Nominal Supply Voltage | 24 V DC |
| Operating Voltage Range | 18–30 V DC |
| Internal Cycle Time | 5 ms |
| Pneumatic Connection | QS-4, for 4 mm tubing |
| Protection Rating | IP65/IP67 |
| Weight | 0.25 lb |
Information About CPX-4AE-P-D10
The CPX-4AE-P-D10 is part of Festo’s CPX modular electrical terminal system and is designed for analogue pressure acquisition. It supports four relative-pressure measurements or two differential-pressure measurements by pairing channels. The module uses QS-4 push-in pneumatic connections and operates from a nominal 24 V DC supply. Integrated diagnostics help identify channel limit violations, sensor-limit conditions, and parameterization errors.
Key Features:
-
Four Pressure Inputs: Processes pressure readings from up to four channels.
-
0–10 bar Measurement Range: Measures relative pressure within the specified operating range.
-
Differential Pressure Measurement: Supports two differential measurements by combining input channels.
-
24 V DC Supply: Operates within an 18–30 V DC supply range.
-
QS-4 Connections: Uses push-in pneumatic connections for 4 mm tubing.
-
Integrated Diagnostics: Reports channel limit violations, sensor limits, and parameterization errors.
-
Fast Sampling Cycle: Provides a 5 ms internal cycle time.
-
IP65/IP67 Protection: Offers protection when correctly installed in a compatible CPX system.
The CPX-4AE-P-D10 delivers pressure monitoring and diagnostic capabilities required for pneumatic automation, machine control, and industrial process monitoring.
