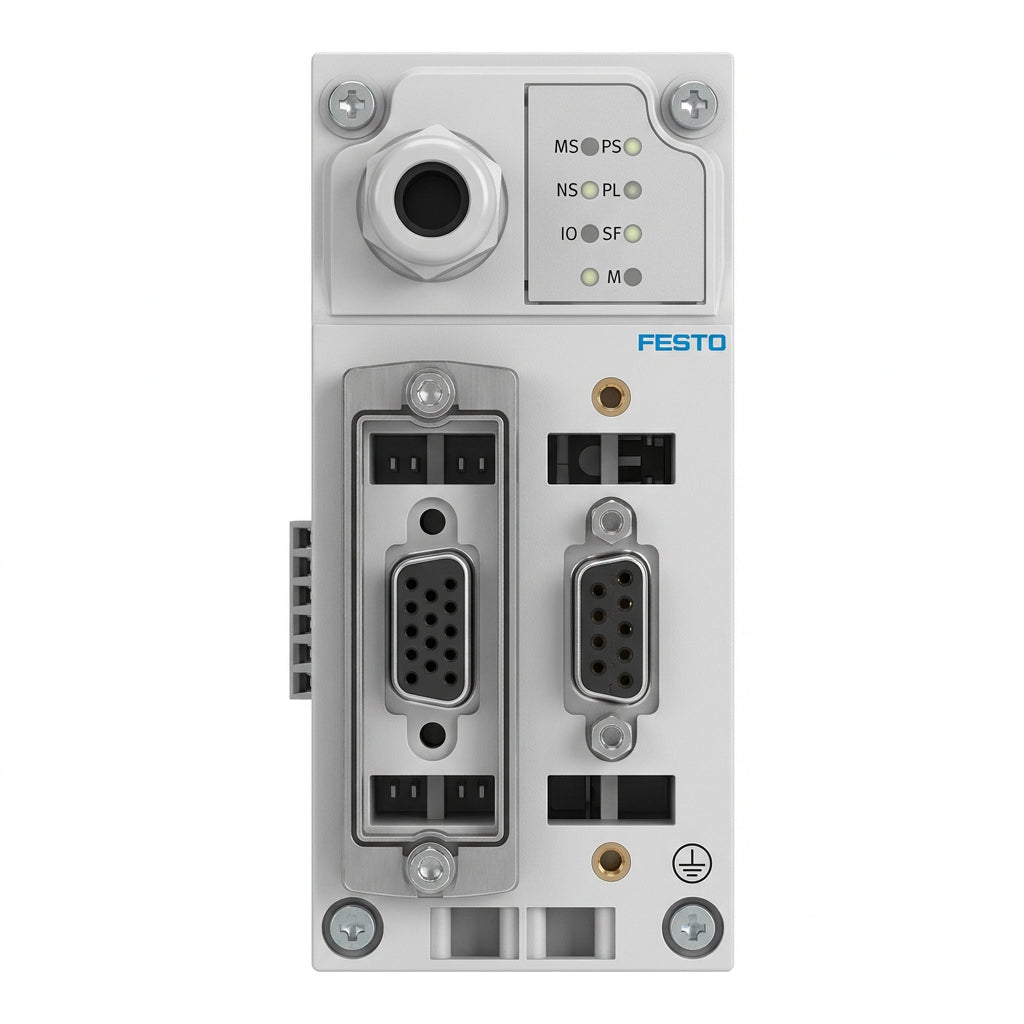

Festo CPX-FB11 526172 DeviceNet Bus Node Module
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPX-FB11 526172
Description
The Festo CPX-FB11 (526172) is a DeviceNet bus node designed to connect Festo CPX modular electrical terminals and compatible valve-terminal systems to an industrial automation network. It enables data exchange between the CPX system's input/output modules and a higher-level controller using the DeviceNet protocol. Diagnostic indicators and configurable communication parameters support commissioning, monitoring, and troubleshooting in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Industrial Automation |
| Part Number | CPX-FB11 |
| Subcategory | Fieldbus Communication Modules |
| Festo Part Number | 526172 |
| Product Type | DeviceNet Bus Node |
| Communication Protocol | DeviceNet |
| Baud Rates | 125, 250, 500 kbit/s |
| Maximum Input Data | 64 bytes |
| Maximum Output Data | 64 bytes |
| Operating Voltage | 24 V DC (permissible range 18–30 V DC) |
| Maximum Current Consumption | 200 mA |
| Protection Rating | IP65/IP67, connection-dependent |
| Operating Temperature | −5 to +50 °C |
| Dimensions (W × L × H) | 50 × 107 × 50 mm, including interlinking block |
| Weight | 0.26 lb |
Information About CPX-FB11 526172
The CPX-FB11 is part of Festo's CPX modular electrical terminal platform and serves as its DeviceNet communication interface. It supports communication modes including polled I/O, change-of-state or cyclic communication, strobed I/O, and explicit messaging. The node supports baud rates of 125, 250, and 500 kbit/s, with addressing configured through DIL switches. Diagnostic functions include module- and channel-oriented diagnostics and storage of recent errors for troubleshooting.
Key Features:
-
DeviceNet Communication: Connects compatible Festo CPX systems to DeviceNet industrial networks.
-
Modular CPX Integration: Designed for Festo CPX electrical terminals and compatible valve-terminal assemblies.
-
Multiple Communication Modes: Supports polled I/O, change-of-state, strobed I/O, and explicit messaging.
-
Selectable Baud Rates: Supports 125, 250, and 500 kbit/s communication speeds.
-
Configurable Addressing: Uses DIL switches to set the network address.
-
I/O Data Capacity: Supports up to 64 bytes of input data and 64 bytes of output data.
-
Diagnostic Indicators: LEDs display module, network, I/O, and system status.
-
Industrial Protection: Supports IP65/IP67 protection with the appropriate connection configuration.
The CPX-FB11 delivers the network communication and diagnostic capabilities required for compatible Festo CPX industrial automation systems.
