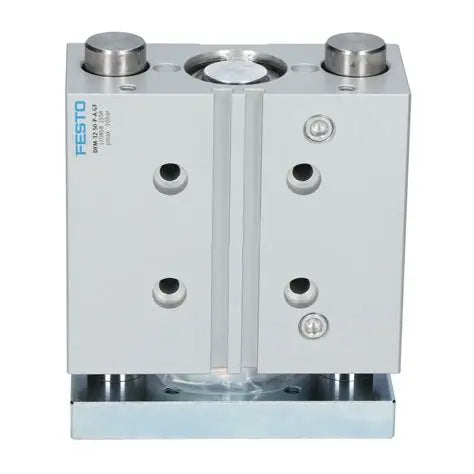

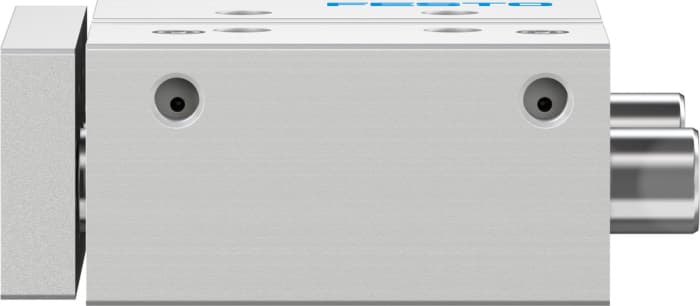

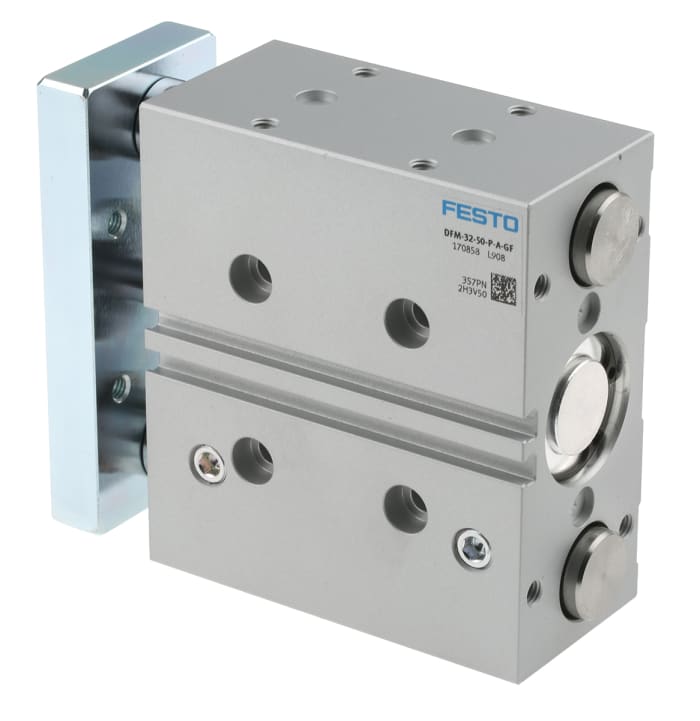

Festo DFM-32-50-P-A-GF Guided Pneumatic Cylinder
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DFM-32-50-P-A-GF
Description
The Festo DFM-32-50-P-A-GF is a double-acting guided pneumatic drive with a 32 mm piston diameter and a 50 mm stroke. Its integrated sliding guide helps maintain stable linear movement and handle transverse loads, making it suitable for clamping, lifting, positioning, and stopping applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DFM-32-50-P-A-GF |
| Subcategory | Guided Drives |
| Manufacturer Part Number | 170858 |
| Product Type | Guided pneumatic drive |
| Mode of Operation | Double-acting |
| Piston Diameter | 32 mm |
| Stroke Length | 50 mm |
| Operating Pressure | 1.5–10 bar |
| Pneumatic Connection | G1/8 |
| Maximum Speed | 0.8 m/s |
| Theoretical Force at 6 bar | 482 N advancing; 415 N retracting |
| Weight | 4.97 lb |
Information About DFM-32-50-P-A-GF
The DFM-32-50-P-A-GF belongs to Festo’s DFM series of guided pneumatic drives, which combine the drive and guide in a single housing. It uses compressed air for both extension and retraction and features a sliding guide to support controlled motion. Elastic cushioning rings or plates at both ends help reduce impact at the stroke limits. The unit has a G1/8 pneumatic connection and supports position detection using proximity sensors.
Key Features:
-
Integrated Guide: Combines the actuator and guide in one compact assembly.
-
Double-Acting Operation: Uses compressed air for both forward and return strokes.
-
32 mm Piston Diameter: Provides pneumatic actuation force for industrial equipment.
-
50 mm Stroke: Supports short, controlled linear travel.
-
Sliding Guide: Helps maintain stable motion under transverse loads.
-
End-Position Cushioning: Elastic rings or plates reduce impact at both ends.
-
Proximity Sensor Compatibility: Enables position detection with compatible sensors.
-
G1/8 Pneumatic Connection: Connects to compatible compressed-air fittings.
The DFM-32-50-P-A-GF delivers the guided motion and repeatable actuation required for industrial clamping, lifting, positioning, and material-handling systems.
