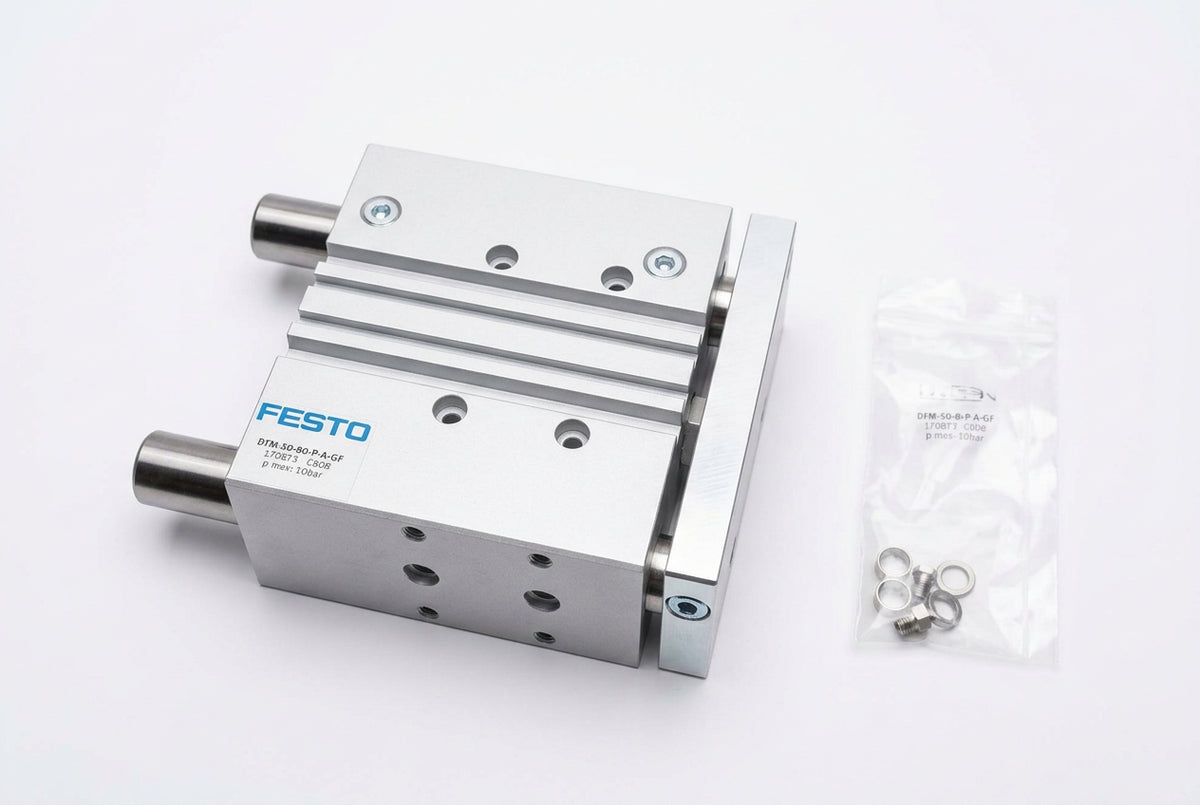

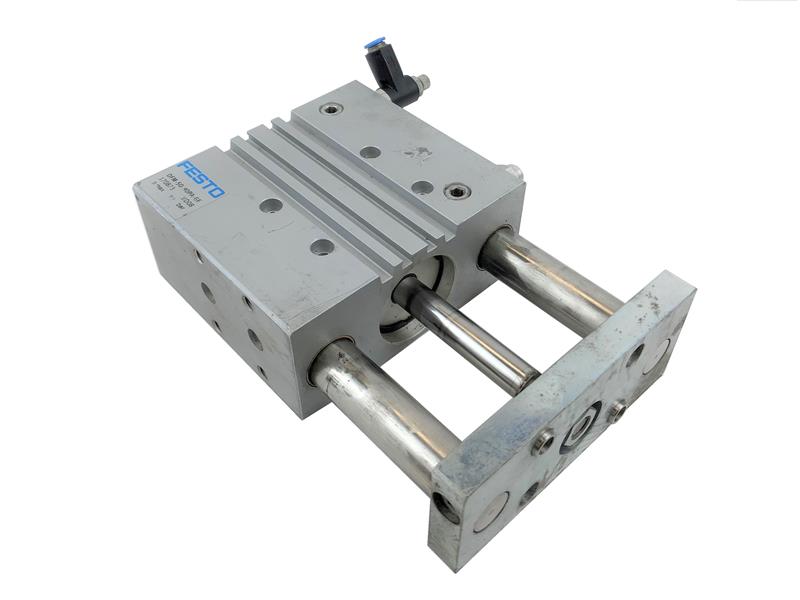

Festo DFM-50-80-P-A-GF Guided Pneumatic Cylinder
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DFM-50-80-P-A-GF
Description
The Festo DFM-50-80-P-A-GF is a double-acting guided pneumatic drive with a 50 mm piston diameter and an 80 mm stroke. Its integrated plain-bearing guide supports stable linear movement and resistance to transverse loads, making it suitable for clamping, lifting, positioning, and stopping applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DFM-50-80-P-A-GF |
| Subcategory | Guided Drives |
| Manufacturer Part Number | 170873 |
| Product Type | Guided pneumatic drive |
| Mode of Operation | Double-acting |
| Piston Diameter | 50 mm |
| Stroke Length | 80 mm |
| Operating Pressure | 1–10 bar |
| Maximum Speed | 0.6 m/s |
| Pneumatic Connection | G1/4 |
| Theoretical Force at 6 bar | 1,178 N advancing; 1,057 N retracting |
| Maximum Effective Load | 234 N at the specified reference distance |
| Weight | 11.05 lb |
Information About DFM-50-80-P-A-GF
The DFM-50-80-P-A-GF belongs to Festo’s DFM series of guided pneumatic drives, which combine the actuator and guide in one housing. It operates using compressed air for both extension and retraction and features a plain-bearing guide for controlled linear movement. Elastic cushioning rings or plates at both ends help reduce impact when the drive reaches its stroke limits. The unit supports proximity-sensor position detection and uses a G1/4 pneumatic connection.
Key Features:
-
Integrated Guide: Combines the pneumatic actuator and guide in one assembly.
-
Double-Acting Operation: Uses compressed air for both forward and return strokes.
-
50 mm Piston Diameter: Provides pneumatic force for industrial applications.
-
80 mm Stroke: Supports controlled linear travel.
-
Plain-Bearing Guide: Helps maintain stable motion under transverse loads.
-
End-Position Cushioning: Elastic rings or plates help absorb impact at both ends.
-
Position Sensing Compatibility: Supports detection with compatible proximity sensors.
-
G1/4 Pneumatic Connection: Connects to compatible compressed-air fittings.
The DFM-50-80-P-A-GF delivers the guided movement and actuation force required for industrial clamping, lifting, positioning, and material-handling systems.
