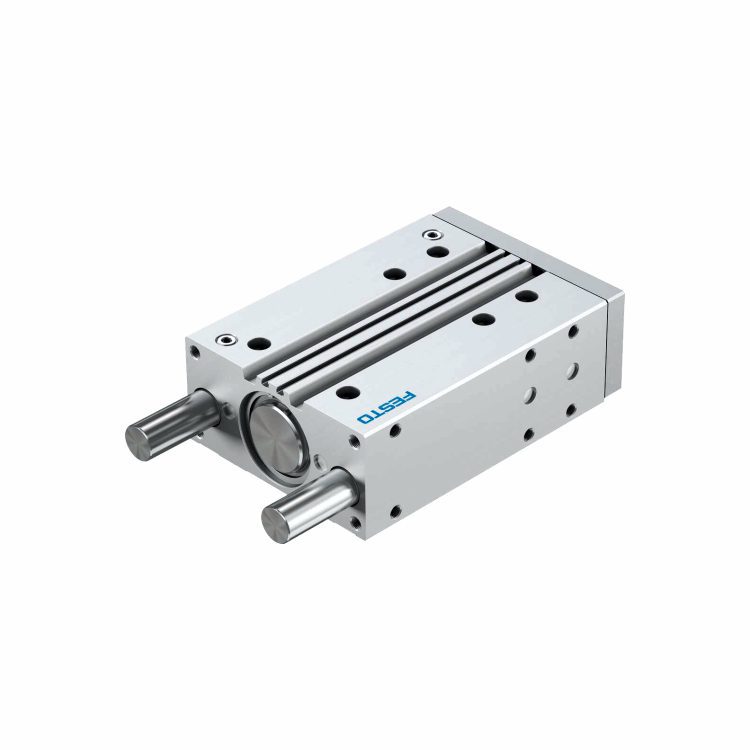

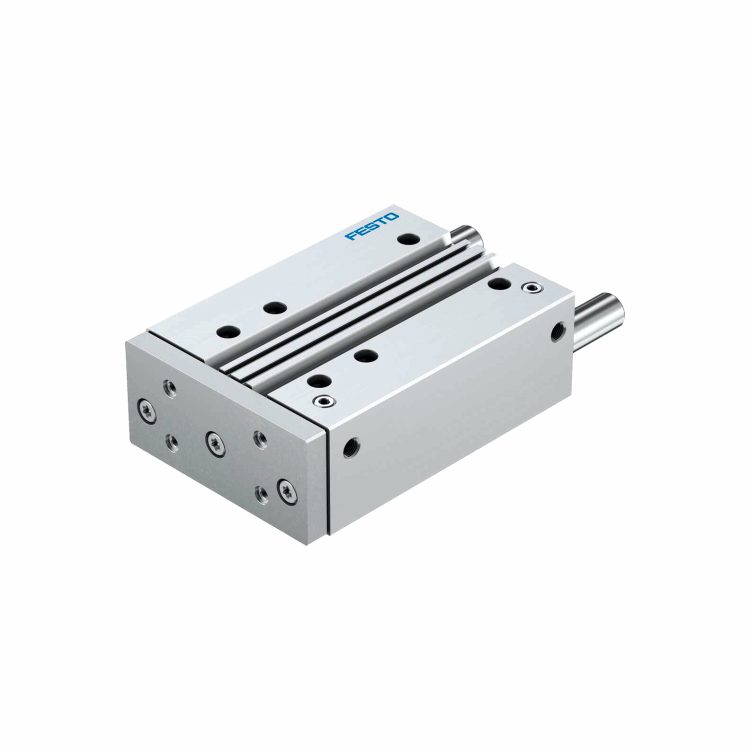

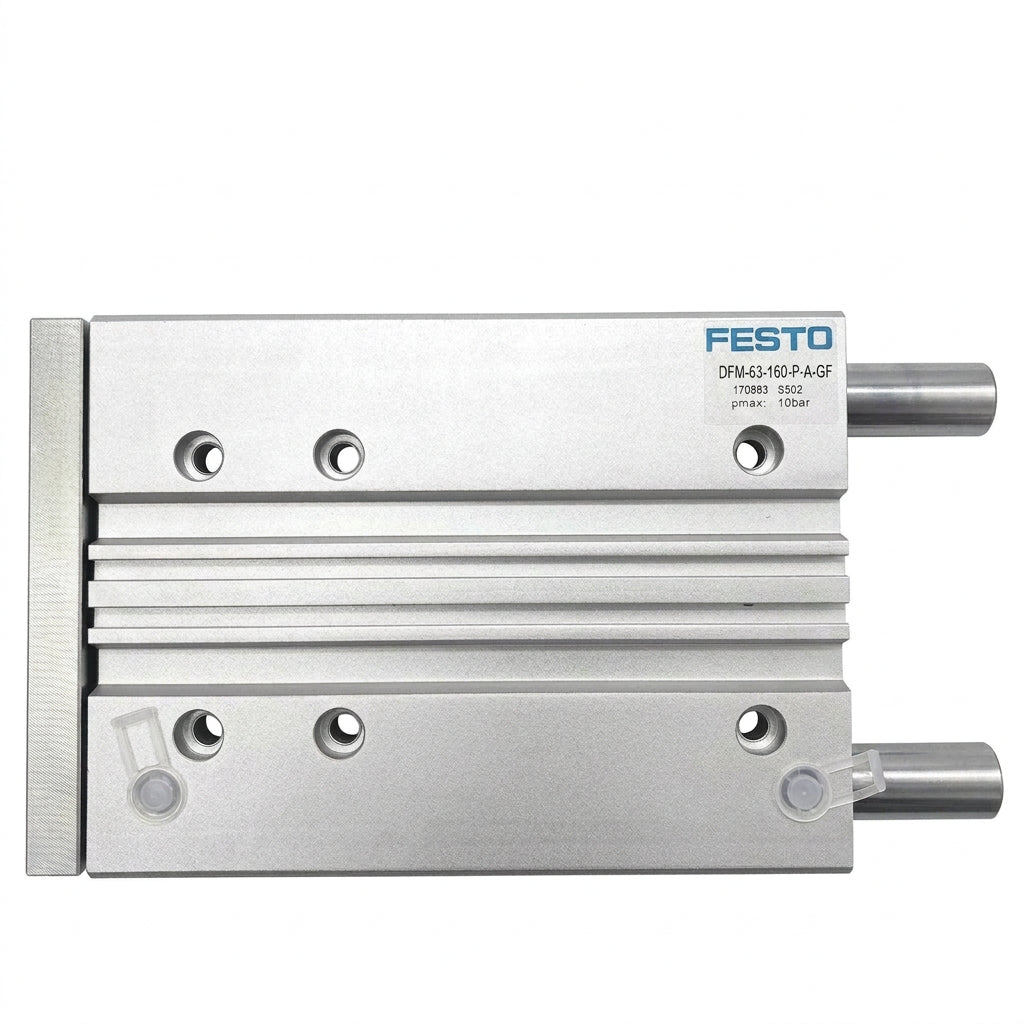

Festo DFM-63-160-P-A-GF Pneumatic Guided Cylinder
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DFM-63-160-P-A-GF
Description
The Festo DFM-63-160-P-A-GF is a double-acting pneumatic guided drive with a 63 mm piston diameter and a 160 mm stroke. Its integrated guide provides stable linear movement and resistance to transverse loads, making it suitable for clamping, lifting, positioning, and stopping applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DFM-63-160-P-A-GF |
| Subcategory | Guided Drives |
| Manufacturer Part Number | 170883 |
| Product Type | Guided pneumatic drive |
| Mode of Operation | Double-acting |
| Piston Diameter | 63 mm |
| Stroke Length | 160 mm |
| Pneumatic Connection | G1/4 |
| Operating Pressure | 1–10 bar |
| Maximum Speed | 0.6 m/s |
| Weight | 19.63 lb |
Information About DFM-63-160-P-A-GF
The DFM-63-160-P-A-GF belongs to Festo’s DFM series of guided pneumatic drives, which combine the actuator and guide in a single housing. It operates in both directions using compressed air and features a plain-bearing guide for controlled movement. Elastic cushioning rings or plates at both ends help reduce impact during the stroke, while proximity sensors can be used for position detection. The 160 mm stroke, 63 mm piston diameter, and G1/4 pneumatic connection make this model suitable for demanding machine-handling tasks.
Key Features:
-
Integrated Guide: Combines the pneumatic drive and guide in one compact assembly.
-
Double-Acting Operation: Uses compressed air for both extension and retraction.
-
63 mm Piston Diameter: Provides substantial pneumatic actuation force.
-
160 mm Stroke: Supports controlled linear travel across the specified distance.
-
Plain-Bearing Guide: Helps maintain stable movement under transverse loads.
-
End-Position Cushioning: Elastic cushioning rings or plates reduce impact at both ends.
-
Position Sensing: Supports proximity-sensor-based position detection.
-
G1/4 Pneumatic Connection: Connects to compatible compressed-air fittings.
The DFM-63-160-P-A-GF delivers the guided motion and load-handling stability required for industrial clamping, lifting, positioning, and material-handling systems.
