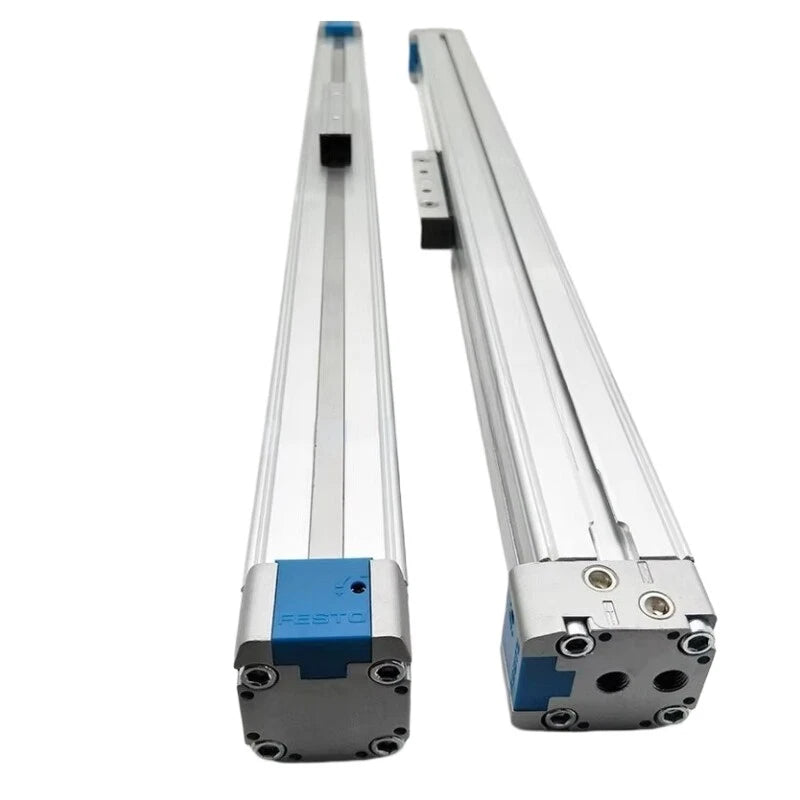

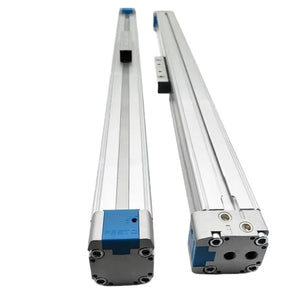

Festo DGP-25-800-PPV-A-B Rodless Pneumatic Linear Drive
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DGP-25-800-PPV-A-B
Description
The Festo DGP-25-800-PPV-A-B is a double-acting rodless pneumatic linear drive designed for transferring and positioning loads over an 800 mm stroke. Its mechanically coupled slide provides linear movement without an extending piston rod, while adjustable pneumatic cushioning reduces impact at both ends.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DGP-25-800-PPV-A-B |
| Subcategory | Pneumatic Actuator |
| Manufacturer Base Part Number | 161780 |
| Series | DGP |
| Drive Type | Mechanically coupled rodless linear drive |
| Piston Diameter | 25 mm |
| Stroke | 800 mm |
| Mode of Operation | Double-acting |
| Guide Type | Basic guide |
| Operating Pressure | 2–8 bar |
| Cushioning | PPV: adjustable pneumatic cushioning at both ends |
| Cushioning Length | 18 mm |
| Theoretical Force at 6 Bar | 295 N in both directions |
| Position Detection | Via compatible proximity sensor |
| Pneumatic Connection | G1/8 |
| Mounting Position | Any |
| Materials | Anodized aluminum housing; coated cast-aluminum covers; NBR and TPE-U(PU) seals |
| Ambient Temperature | −10–60 °C |
| Weight | 3.72 kg |
Information About DGP-25-800-PPV-A-B
The DGP-25-800-PPV-A-B is part of the Festo DGP series and uses a 25 mm piston diameter. A slotted aluminum profile mechanically connects the internal piston to the external carriage. The basic guide supports carriage travel, and proximity-sensor compatibility allows position monitoring. G1/8 pneumatic connections and flexible mounting orientation support integration into automated handling equipment.
Key Features:
- Rodless Construction: Provides linear travel without requiring clearance for an extending piston rod.
- Long Stroke: Offers 800 mm of movement for transfer and positioning tasks.
- Mechanical Coupling: Links the internal piston directly to the external carriage.
- Double-Acting Operation: Uses compressed air to drive movement in both directions.
- Adjustable Cushioning: Includes pneumatic end-position cushioning at both ends.
- Balanced Output Force: Provides a theoretical force of 295 N in either direction at 6 bar.
- Position Monitoring: Supports compatible proximity sensors for detecting carriage position.
- Threaded Connections: Uses G1/8 ports for connection to compatible pneumatic circuits.
The DGP-25-800-PPV-A-B delivers the reliability and precision required for pneumatic linear transfer in automated handling systems.
