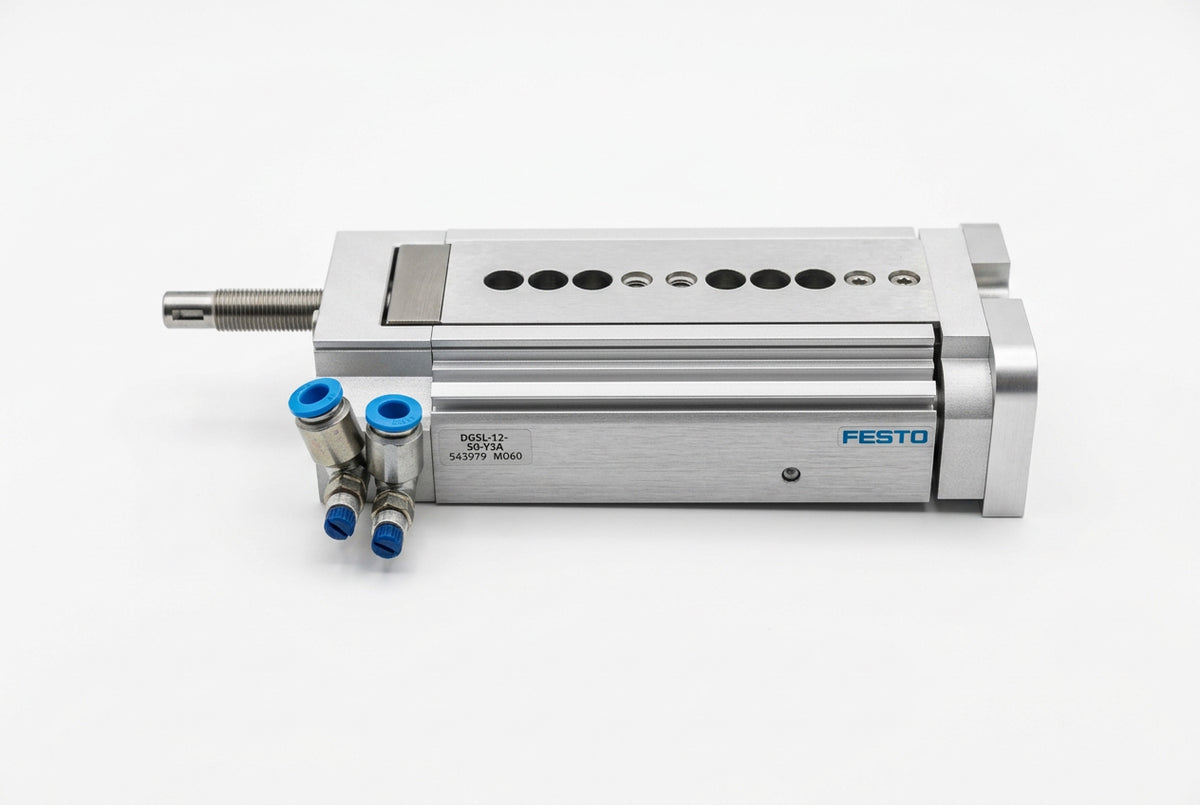

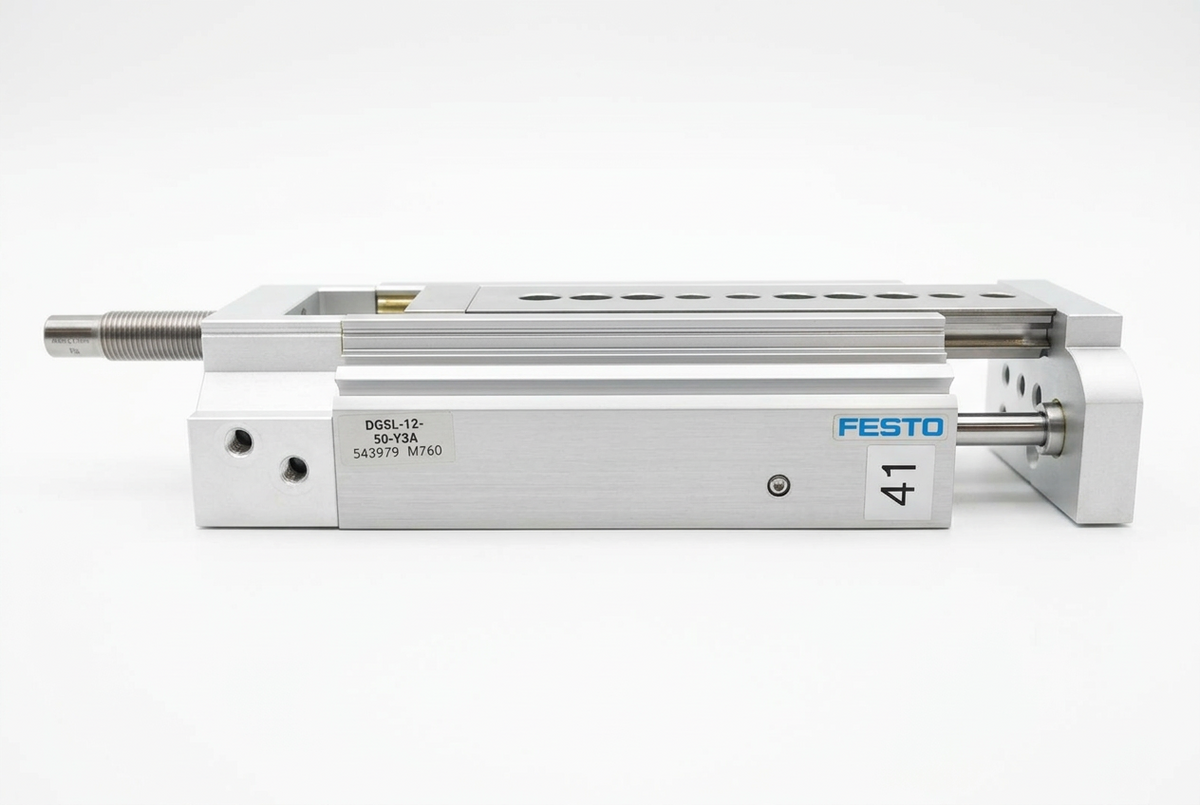

Festo DGSL-12-50-Y3A 12mm Bore 50mm Stroke Pneumatic Mini Slide Actuator
- Regular price
- $1,077.00
- Sale price
- $1,077.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DGSL-12-50-Y3A
Description
The Festo DGSL-12-50-Y3A mini slide is a precision pneumatic linear actuator featuring a 12 mm piston diameter and a 50 mm stroke length. Equipped with integrated progressive shock absorbers (Y3A), it delivers smooth deceleration and high positioning accuracy for heavy or fast-moving loads. Built with a high-rigidity cage guide and recirculating ball bearing system, this compact pneumatic slide ensures minimal deflection and reliable linear guidance in automated handling tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DGSL-12-50-Y3A |
| Subcategory | Pneumatic Actuator |
| Series | DGSL Mini Slide Series |
| Piston Diameter | 12 mm |
| Stroke Length | 50 mm |
| Cushioning Type | Y3A (Progressive Shock Absorber at Both Ends) |
| Operating Medium | Compressed Air |
| Guide Type | Recirculating Ball Bearing Cage Guide |
| Operating Pressure | 1 to 10 bar |
| Weight | 0.45 kg |
Information About DGSL-12-50-Y3A
The DGSL-12-50-Y3A belongs to Festo's DGSL Series of high-performance mini slides engineered for tight spaces requiring superior payload capacity and repeatability. Its dual-piston drive system generates high force output relative to its compact footprint, while the progressive shock absorbers effectively dampen end-position impacts to protect sensitive tooling. Compatibility covers standard 1/8" pneumatic fittings, Festo proximity sensors for end-position feedback, and modular pick-and-place mounting systems. It is widely applied in precision electronics assembly, automated testing equipment, small parts handling, and high-speed packaging machinery.
Key Features:
-
- Actuator Series: Festo DGSL Mini Slide Series
- Piston Diameter: 12 mm nominal bore size
- Stroke Length: 50 mm stroke displacement
- Cushioning System: Progressive shock absorbers (Y3A) at both end positions
- Guidance System: Precision ball bearing cage guide with high rigidity
- Operating Medium: Compressed air according to ISO 8573-1:2010
- Mounting Flexibility: Flexible mounting options on multiple surfaces
- Construction Weight: Lightweight 0.45 kg aluminum body construction
The DGSL-12-50-Y3A delivers the reliability and precision required for automated linear positioning and high-speed pick-and-place workflows.
