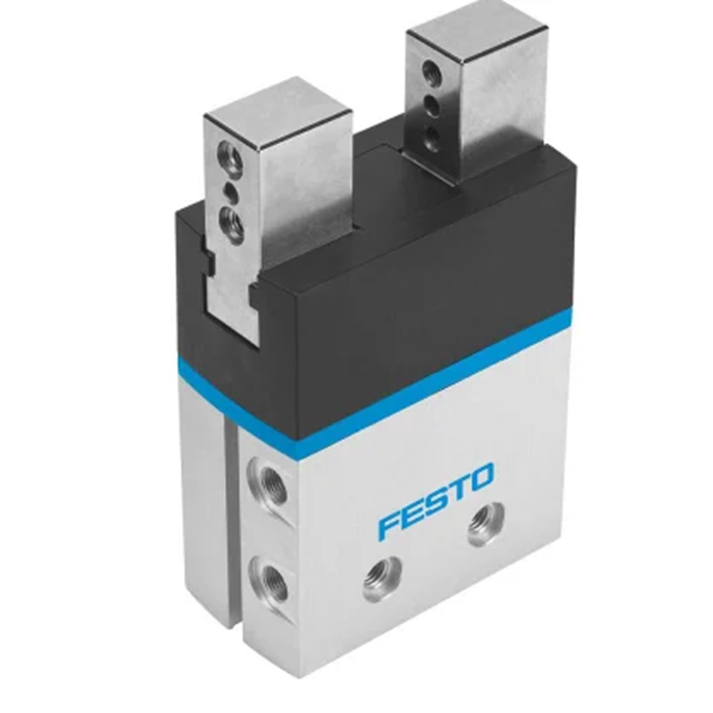

Festo DHPS-20-A Double-Acting Pneumatic Parallel Gripper
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DHPS-20-A
Description
The Festo DHPS-20-A is a double-acting pneumatic parallel gripper designed for handling, assembly, and pick-and-place operations. Its two jaws provide 6.5 mm stroke per jaw, with total gripping forces of 290 N when closing and 320 N when opening at 6 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DHPS-20-A |
| Subcategory | Pneumatic Gripper |
| Manufacturer Part Number | 1254046 |
| Series | DHPS |
| Size | 20 |
| Gripper Type | Two-jaw parallel gripper |
| Actuation | Pneumatic, double-acting |
| Stroke per Jaw | 6.5 mm |
| Operating Pressure | 2–8 bar |
| Total Closing Force | 290 N at 6 bar |
| Total Opening Force | 320 N at 6 bar |
| Repeatability | <0.02 mm |
| Maximum Operating Frequency | 3 Hz |
| Pneumatic Connection | M5 |
| Position Detection | Via compatible proximity switch |
| Materials | Hard-anodized wrought aluminum alloy housing; high-alloy stainless steel jaws |
| Ambient Temperature | 5–60 °C |
| Weight | 380 g |
Information About DHPS-20-A
The DHPS-20-A is a size 20 gripper in the Festo DHPS series. Its guided parallel jaw motion supports both external and internal gripping with suitable application-specific fingers. A hard-anodized aluminum alloy housing and stainless steel jaws provide a durable mechanical structure. Proximity-switch compatibility allows jaw position monitoring within automated handling systems.
Key Features:
- Parallel Gripping: Moves two jaws in parallel for controlled workpiece handling.
- Double-Acting Operation: Uses compressed air to drive both opening and closing movements.
- Jaw Stroke: Provides 6.5 mm travel per jaw for gripping different workpiece dimensions.
- Closing Force: Produces a total closing force of 290 N at 6 bar.
- Opening Force: Produces a total opening force of 320 N at 6 bar.
- Repeatable Motion: Offers gripping repeatability below 0.02 mm under specified conditions.
- Position Monitoring: Supports compatible proximity switches for detecting jaw position.
- Flexible Mounting: Allows installation using threaded holes or through-holes with centering sleeves.
The DHPS-20-A delivers the reliability and precision required for automated component handling and repeatable assembly operations.
