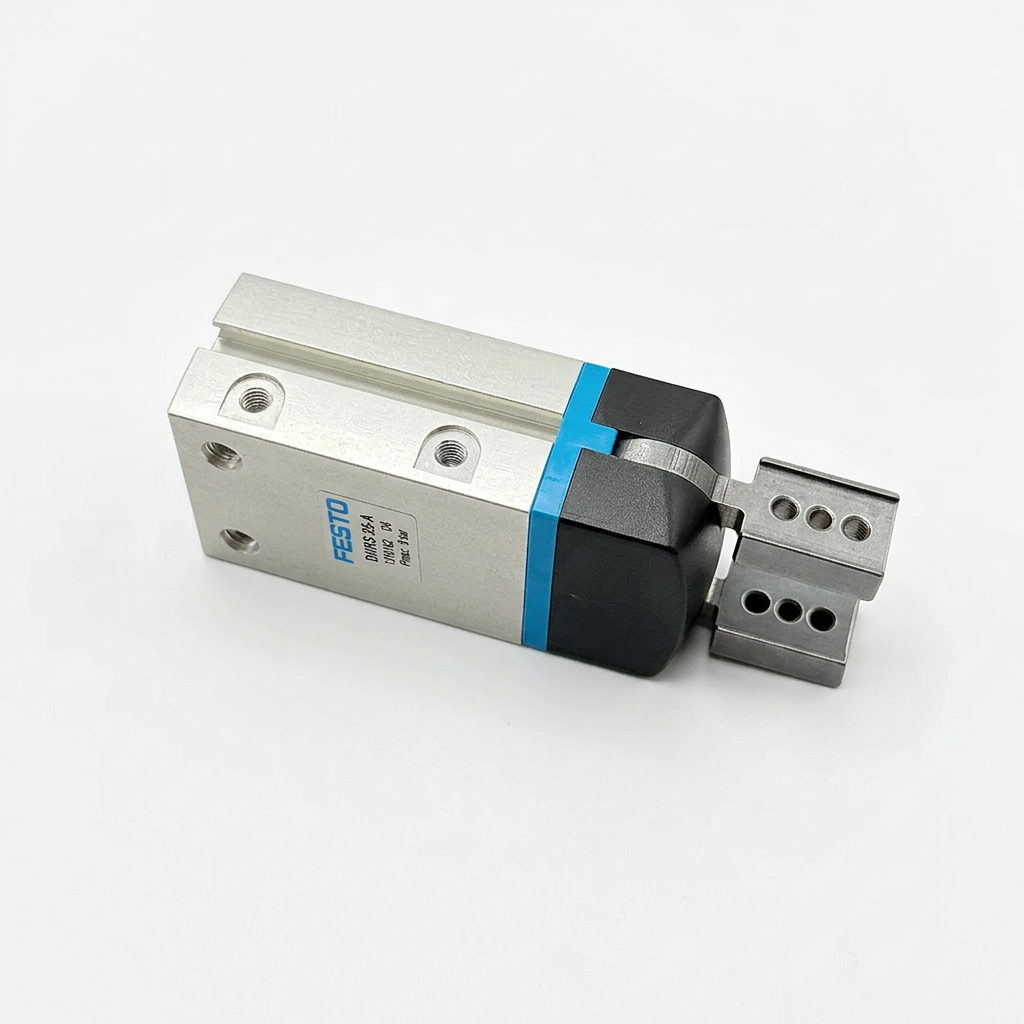

Festo DHRS-25-A 1310162 Double Acting Two-Jaw Pneumatic Radial Gripper
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DHRS-25-A 1310162
Description
The Festo DHRS-25-A 1310162 is a double-acting pneumatic radial gripper for handling workpieces in automated assembly and transfer equipment. Its two jaws open through a maximum angle of 180°, providing clearance for loading and releasing components. It operates at 2–8 bar and supports position detection using compatible proximity sensors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Grippers |
| Part Number | DHRS-25-A |
| Subcategory | Radial Grippers |
| Manufacturer Article Number | 1310162 |
| Series / Size | DHRS / 25 |
| Operating Mode | Double acting |
| Number of Jaws | 2 |
| Maximum Opening Angle | 180° |
| Operating Pressure | 2–8 bar |
| Pneumatic Connection | M5 |
| Repetition Accuracy | 0.1 mm |
| Total Opening / Closing Torque | 233 Ncm / 215 Ncm at 6 bar |
| Maximum Operating Frequency | 3 Hz |
| Minimum Opening / Closing Time | 102 ms / 105 ms at 6 bar |
| Position Detection | Via compatible proximity sensor |
| Housing / Jaw Material | Hard-anodized wrought aluminum alloy / high-alloy steel |
| Ambient Temperature | +5°C to +60°C |
| Mounting | Internal thread or through-hole with centering sleeves; any orientation |
| Weight | 0.260 kg (0.57 lb) |
Information About DHRS-25-A 1310162
The DHRS-25-A is a size 25 gripper from Festo’s DHRS radial gripper series. Its positively driven mechanism coordinates the movement of both jaws. A hard-anodized aluminum housing and high-alloy steel jaws form the mechanical assembly. Threaded or through-hole mounting with centering sleeves supports installation in any orientation.
Key Features:
- Radial Jaw Motion: Opens and closes two jaws through an angular gripping movement.
- Double-Acting Operation: Uses compressed air to power both opening and closing.
- Wide Opening Angle: Provides a maximum opening angle of 180°.
- Coordinated Movement: Uses a positively driven mechanism to synchronize jaw motion.
- Position Detection: Supports compatible proximity sensors for monitoring gripper position.
- Repeatable Gripping: Specifies pneumatic repetition accuracy of 0.1 mm.
- Durable Construction: Combines a hard-anodized aluminum housing with high-alloy steel jaws.
- Flexible Mounting: Allows installation in any orientation using suitable mounting and centering components.
The DHRS-25-A delivers the reliability and precision required for pneumatic workpiece gripping and transfer in automated handling systems.
