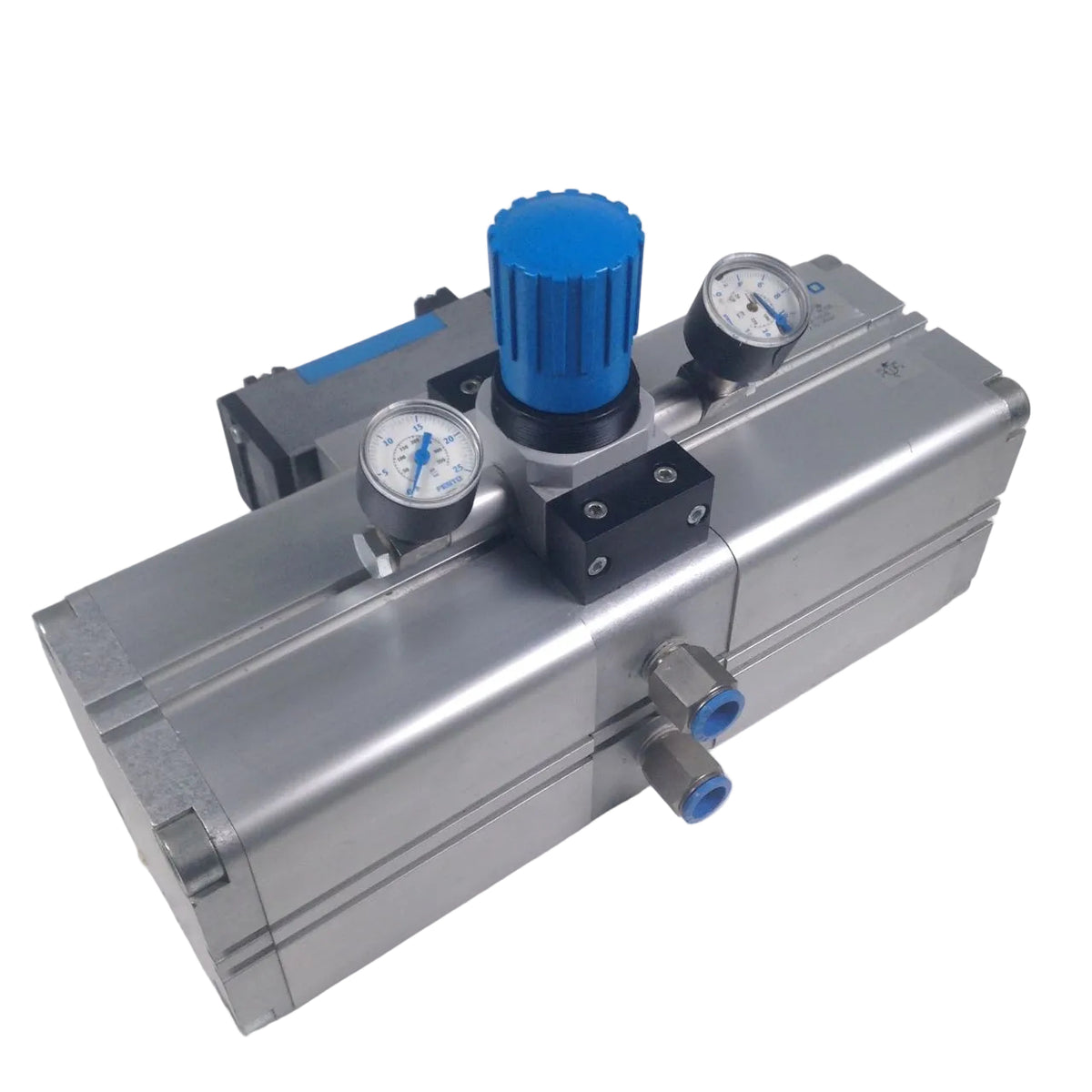

Festo DPA-100-16 Pneumatic Pressure Booster with G1/2 Connections
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DPA-100-16
Description
The Festo DPA-100-16 is a pneumatic pressure booster designed to increase compressed-air pressure for equipment requiring a higher local supply pressure. Its twin-piston mechanism accepts inlet pressure from 2 to 10 bar and provides an adjustable outlet pressure range of 4 to 16 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Controls & Indicators |
| Part Number | DPA-100-16 |
| Subcategory | Pressure Control |
| Manufacturer Part Number | 188399 |
| Series | DPA |
| Product Type | Pneumatic pressure booster |
| Design | Twin-piston pressure booster |
| Piston Diameter | 100 mm |
| Inlet Pressure | 2–10 bar |
| Outlet Pressure Regulation Range | 4–16 bar |
| Pneumatic Connections | G1/2, ports 1–3 |
| Pressure Gauge Connection | Prepared for G1/4 |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:3:4] |
| Lubrication | Lubricated operation not permitted |
| Mounting | Via internal threads; any mounting orientation |
| Ambient Temperature | 5–60 °C |
| Storage Temperature | 5–60 °C |
| Corrosion Resistance | CRC 2 — moderate corrosion stress |
| Weight | 13 kg |
Information About DPA-100-16
The DPA-100-16 is part of the Festo DPA series and uses a 100 mm piston diameter. Its pneumatic design raises pressure for a selected circuit within a larger compressed-air installation. G1/2 connections provide the supply, output, and exhaust interfaces. A prepared G1/4 connection allows a compatible pressure gauge or display to be fitted for monitoring.
Key Features:
- Pressure Boosting: Increases compressed-air pressure for applications requiring a higher local pressure level.
- Adjustable Output: Provides a regulated outlet pressure range of 4–16 bar.
- Inlet Pressure Range: Operates with a compressed-air supply of 2–10 bar.
- Twin-Piston Design: Uses a pneumatic booster mechanism with a 100 mm piston diameter.
- Threaded Connections: Includes G1/2 ports for supply, output, and exhaust.
- Gauge Connection: Provides a prepared G1/4 connection for compatible pressure indication.
- Flexible Installation: Supports mounting in any orientation using threaded mounting points.
- Air Quality Requirements: Uses compressed air meeting ISO 8573-1:2010 [7:3:4], without oil lubrication.
The DPA-100-16 delivers the reliability and precision required for localized compressed-air pressure boosting in industrial equipment.
