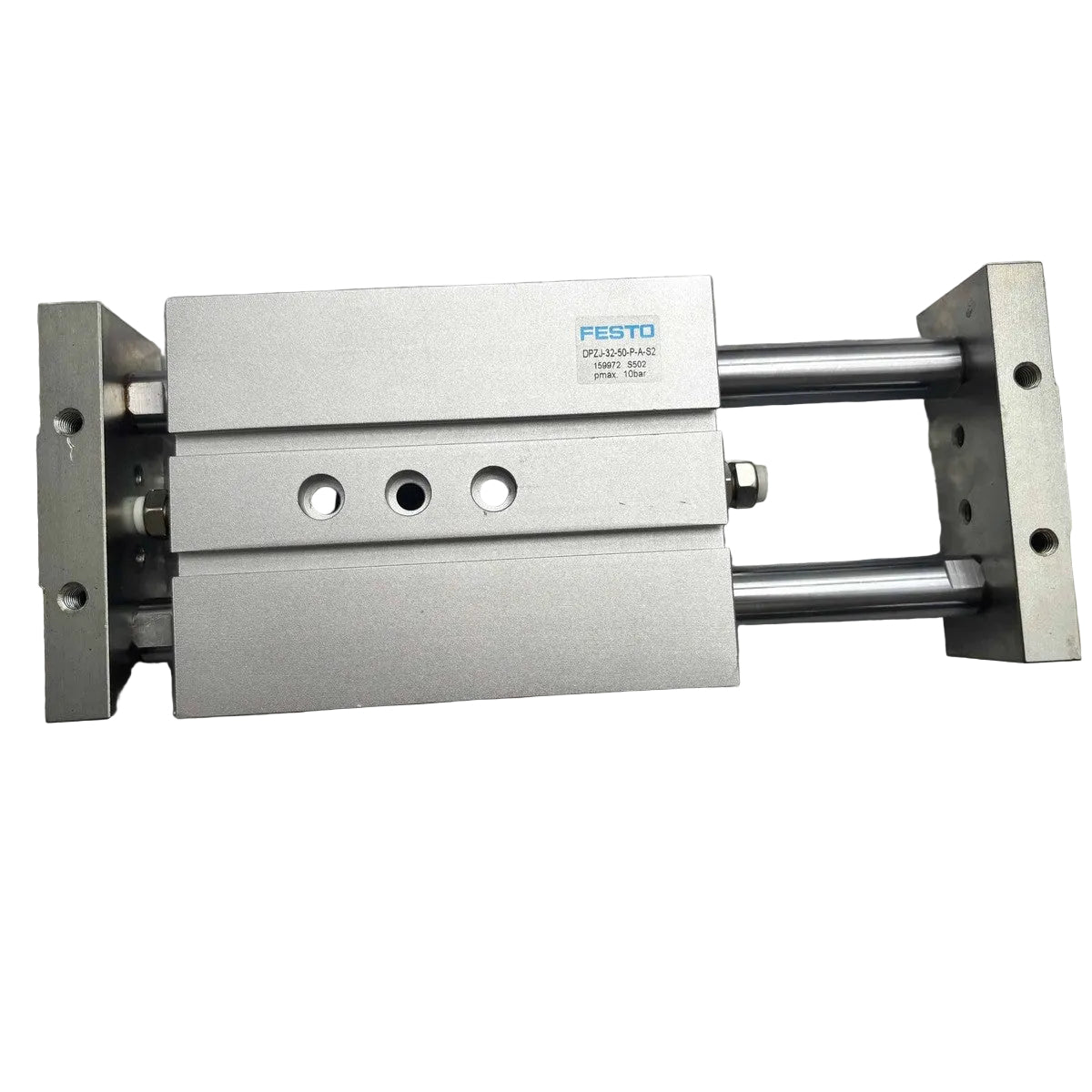

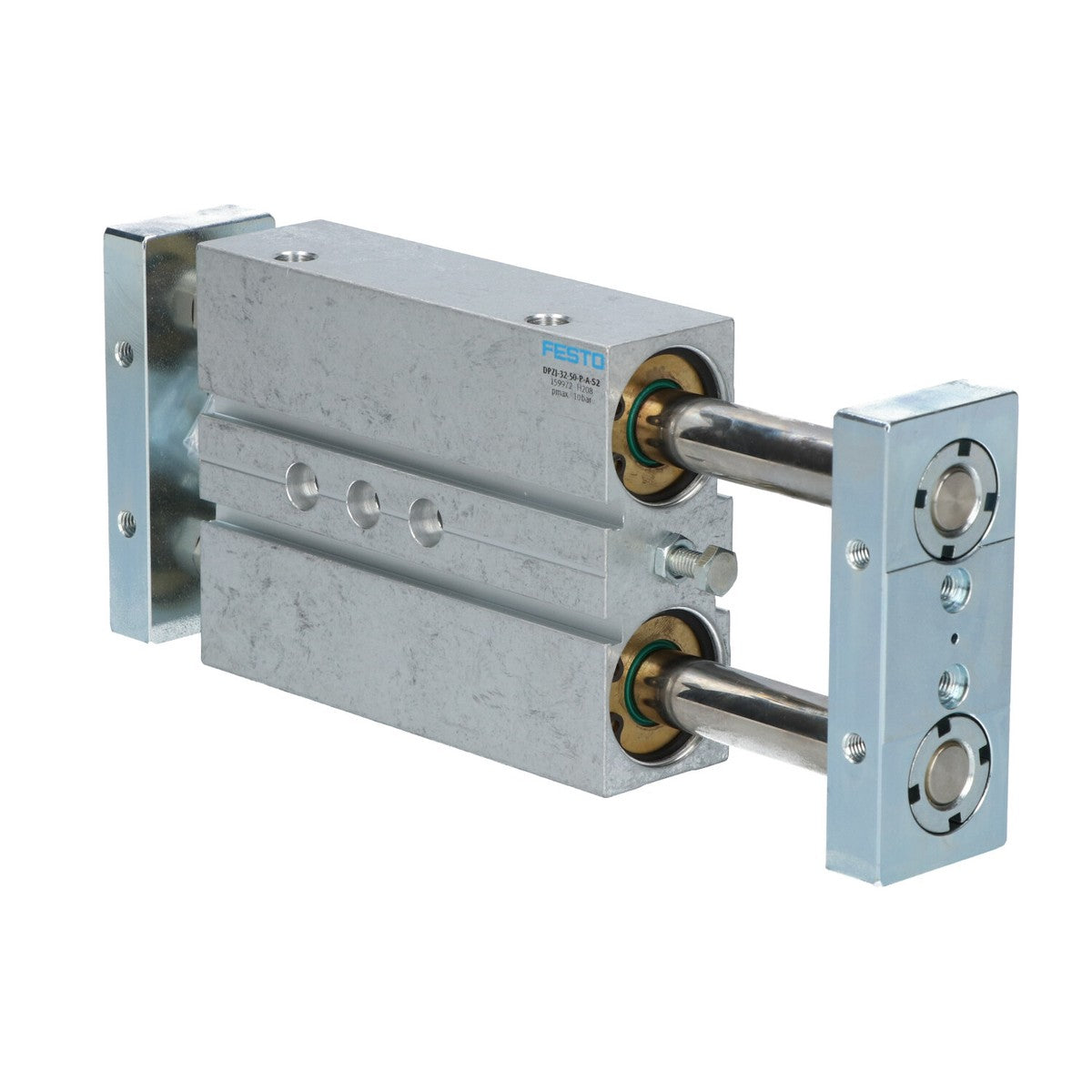

Festo DPZJ-32-50-P-A-S2 Double-Acting Guided Pneumatic Cylinder
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DPZJ-32-50-P-A-S2
Description
The Festo DPZJ-32-50-P-A-S2 is a double-acting pneumatic guided cylinder with 32 mm pistons and a 50 mm stroke. Its twin-piston arrangement and plain-bearing guide support linear transfer and positioning tasks in automated equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DPZJ-32-50-P-A-S2 |
| Subcategory | Pneumatic Cylinder |
| Manufacturer Order Number | 159972 |
| Series | DPZJ |
| Piston Diameter | 32 mm |
| Stroke Length | 50 mm |
| End-Position Adjustment Range | 10 mm |
| Operating Mode | Double-acting |
| Guide Type | Plain-bearing guide |
| Piston Rod Configuration | Through piston rods |
| Operating Pressure | 1–10 bar |
| Maximum Speed | 1 m/s |
| Theoretical Force at 6 Bar | Advancing: 724 N; retracting: 724 N |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Pneumatic Connection | G1/8 |
| Ambient Temperature | −20 °C to +80 °C |
| Materials | Wrought aluminum alloy housing and covers; NBR seals; high-alloy stainless steel piston rods |
| Weight | 5.7 lbs |
Information About DPZJ-32-50-P-A-S2
The DPZJ-32-50-P-A-S2 is part of Festo’s DPZJ series of twin cylinders with a yoke arrangement. This version combines through piston rods with a plain-bearing guide and elastic cushioning at both ends. G1/8 pneumatic connections allow integration into compressed-air systems operating between 1 and 10 bar. Proximity-switch compatibility supports position monitoring, while the 10 mm end-position adjustment range allows travel to be adapted to the mechanism.
Key Features:
- Twin-Piston Design: Uses two pistons connected through a yoke arrangement to drive the guided assembly.
- Double-Acting Operation: Applies compressed air to control both advancing and retracting movement.
- Defined Travel: Provides a 50 mm stroke for linear handling and positioning tasks.
- Adjustable End Position: Offers a 10 mm adjustment range for setting the travel endpoint.
- Plain-Bearing Guide: Guides the moving assembly using a sliding-bearing arrangement.
- Elastic Cushioning: Includes cushioning rings or pads at both ends to absorb end-position impact.
- Equal Directional Force: Produces a theoretical force of 724 N during both advancing and retracting at 6 bar.
- Position Monitoring: Supports compatible proximity switches for detecting actuator position.
The DPZJ-32-50-P-A-S2 delivers the reliability and precision required for guided linear movement in automated assembly and material handling systems.
