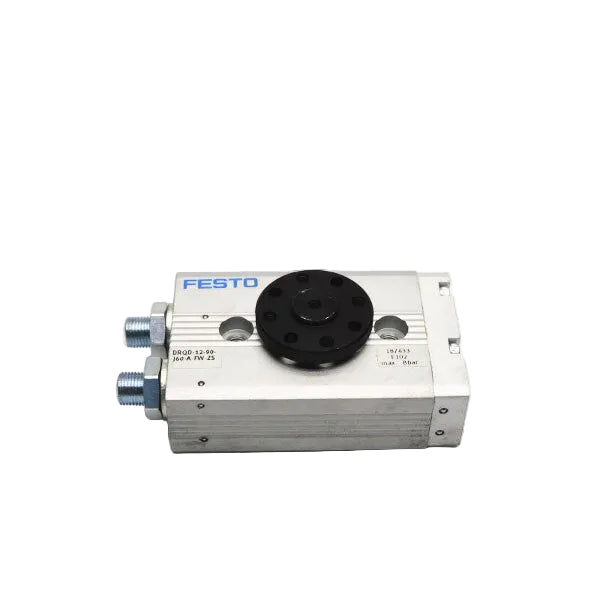

Festo DRQD-12-90-J60-A-FW-ZS Pneumatic Rotary Actuator
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DRQD-12-90-J60-A-FW-ZS
Description
The Festo DRQD-12-90-J60-A-FW-ZS is a pneumatic semi-rotary actuator designed to convert compressed air into controlled rotary motion in industrial automation systems. It features a twin-piston rack-and-pinion mechanism, a 90° swivel angle, adjustable end positions, and a flanged output shaft. The actuator supports proximity-sensor position detection and operates at pressures up to 8 bar.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Pneumatic Equipment |
|
Part Number |
DRQD-12-90-J60-A-FW-ZS |
|
Subcategory |
Rotary Actuators |
|
Manufacturer Part Number |
187433, associated with the DRQD size-12 family |
|
Product Type |
Pneumatic semi-rotary actuator |
|
Series |
DRQD |
|
Drive Mechanism |
Twin piston, rack and pinion |
|
Piston Diameter |
12 mm |
|
Swivel Angle |
90° |
|
Theoretical Torque |
0.76 Nm at 6 bar |
|
Operating Pressure |
Up to 8 bar |
|
Operating Medium |
Filtered compressed air, lubricated or unlubricated |
|
End-Position Adjustment |
J60: −60° to +6° per end position |
|
Position Sensing |
Proximity-sensor compatible |
|
Output Shaft |
Flanged shaft (FW) |
|
Ambient Temperature |
−10 to +60 °C |
|
Weight |
0.35 lb |
Information About DRQD-12-90-J60-A-FW-ZS
The DRQD-12-90-J60-A-FW-ZS belongs to Festo’s DRQD series of twin-piston semi-rotary drives. Its 12 mm piston size produces a theoretical torque of 0.76 Nm at 6 bar under the specified operating conditions. The J60 configuration provides an end-position adjustment range of −60° to +6° per end position. The actuator accepts filtered compressed air and can be installed in any mounting position.
Key Features:
-
Pneumatic Rotary Actuation: Converts compressed air into rotary movement for automated machinery.
-
Twin-Piston Mechanism: Uses a rack-and-pinion design to generate rotary motion.
-
90° Swivel Angle: Provides a quarter-turn movement for positioning and handling tasks.
-
12 mm Piston Size: Uses a compact piston configuration for space-constrained installations.
-
Adjustable End Positions: J60 configuration allows adjustment of the end positions.
-
Flanged Output Shaft: FW configuration provides a flanged shaft interface.
-
Position Sensing: A configuration supports proximity sensors for detecting actuator position.
-
Operating Pressure: Supports compressed-air operation up to 8 bar.
The DRQD-12-90-J60-A-FW-ZS delivers the reliability and precision required for pneumatic positioning, material handling, and industrial automation applications.
