Festo DRRD-25-180-FH-Y9A Double Acting Pneumatic Rotary Actuator with Hydraulic Cushioning
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DRRD-25-180-FH-Y9A
Description

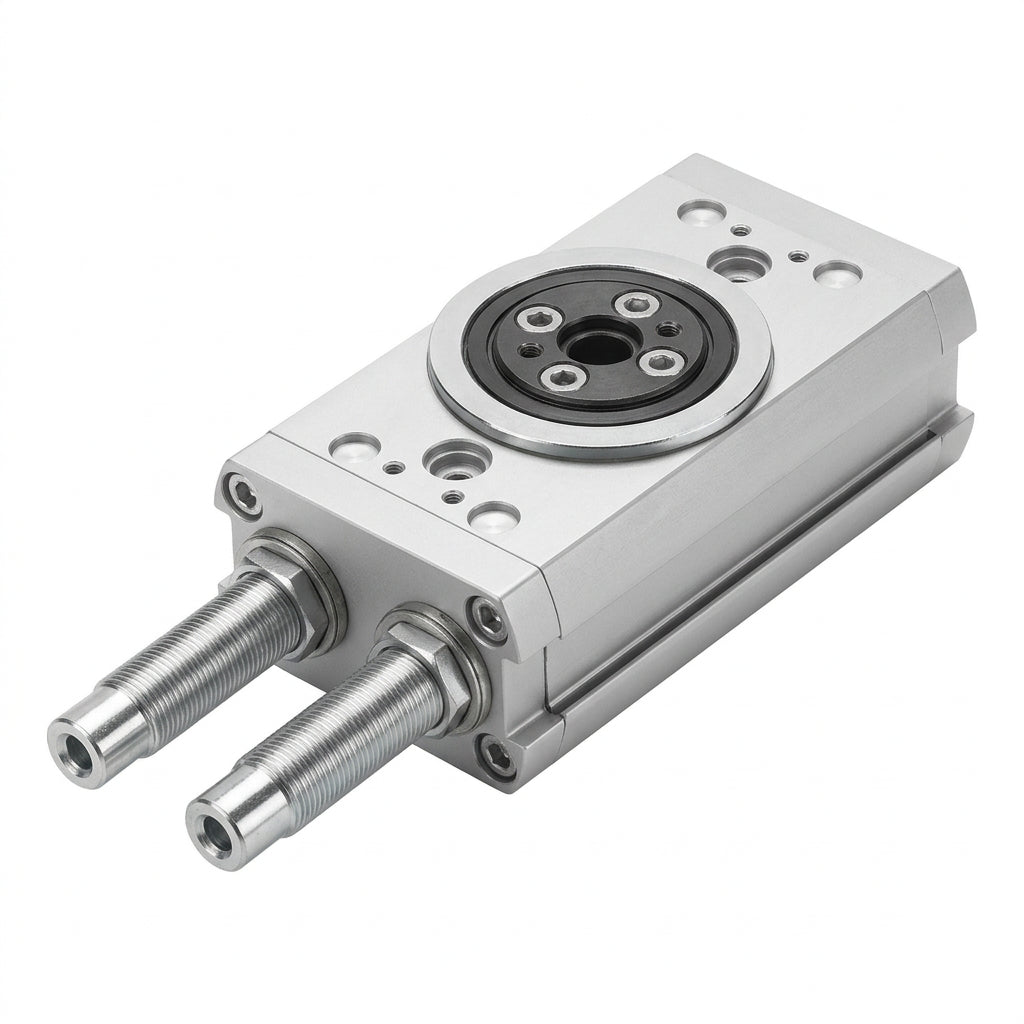

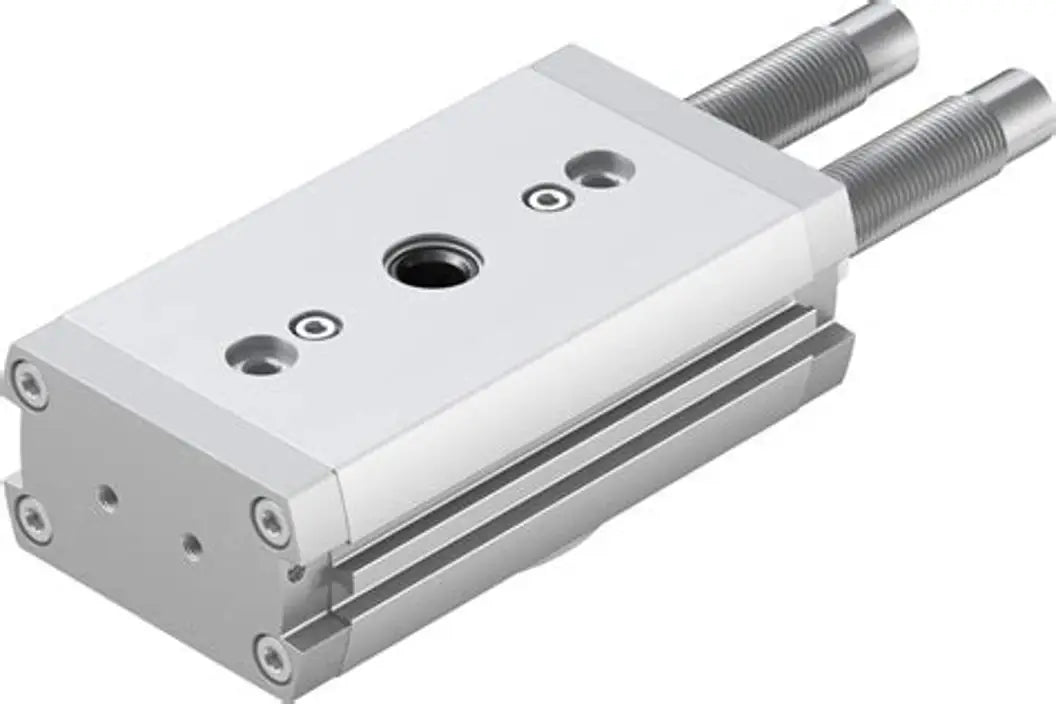

The Festo DRRD-25-180-FH-Y9A is a double-acting pneumatic rotary actuator for turning workpieces, fixtures, and handling mechanisms. Its rack-and-pinion drive provides 180° nominal rotation and a theoretical torque of 5.15 Nm at 6 bar. Internal hydraulic cushioning reduces impact as the mechanism approaches its end positions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Actuators |
| Part Number | DRRD-25-180-FH-Y9A |
| Subcategory | Semi-Rotary Actuators |
| Series / Manufacturer Article Number | DRRD / 1360248 |
| Size | 25 |
| Operating Mode | Double acting |
| Drive Design | Rack and pinion |
| Nominal Swivel Angle | 180° |
| Cushioning | Internal hydraulic cushioning, normal |
| Cushioning Angle | 79° |
| Operating Pressure | 2–10 bar |
| Theoretical Torque | 5.15 Nm at 6 bar |
| Permissible Mass Moment of Inertia | 0.15 kg·m² |
| Pneumatic Connection | M5 |
| Position Detection | Via compatible proximity switch |
| Ambient Temperature | −10°C to +60°C |
| Mounting | Through-hole or female thread; any orientation |
| Housing / Shaft / Seal Materials | Anodized wrought aluminum alloy / tempered steel / NBR and TPE-U (PU) |
| Weight | 1.35 kg (2.99 lb) |
Information About DRRD-25-180-FH-Y9A
The DRRD-25-180-FH-Y9A is a size 25 actuator from Festo’s DRRD series, identified by article number 1360248. Its mechanism converts linear piston movement into controlled shaft rotation. Adjustable end positions allow the swivel travel to be configured for the application, while proximity switch compatibility supports position monitoring. The anodized aluminum assembly can be mounted through holes or female threads in any orientation.
Key Features:
- Pneumatic Rotary Motion: Converts compressed-air power into controlled angular movement.
- Double-Acting Operation: Uses pneumatic pressure to drive rotation in both directions.
- Nominal Rotation: Provides a specified swivel angle of 180°.
- Rack-and-Pinion Drive: Transfers piston movement to the rotary output shaft.
- Hydraulic Cushioning: Incorporates internal cushioning with a specified cushioning angle of 79°.
- Torque Output: Provides a theoretical torque of 5.15 Nm at 6 bar.
- Position Detection: Supports compatible proximity switches for end-position monitoring.
- Flexible Mounting: Allows through-hole or threaded mounting in any orientation.
The DRRD-25-180-FH-Y9A delivers the reliability and precision required for pneumatic turning and angular positioning in automated handling equipment.
