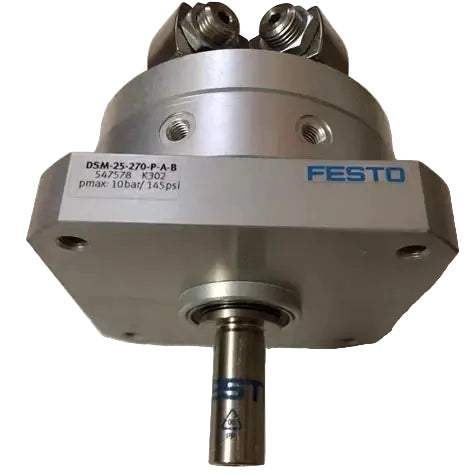

Festo DSM-25-270-P-A-B Double-Acting Pneumatic Rotary Actuator
- Regular price
- $285.00
- Sale price
- $285.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSM-25-270-P-A-B
Description
The Festo DSM-25-270-P-A-B is a double-acting pneumatic rotary actuator designed for turning and orienting components in automated machinery. Its rotary vane mechanism provides adjustable movement from 0° to 270° and a theoretical torque of 5 Nm at 6 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DSM-25-270-P-A-B |
| Subcategory | Pneumatic Actuator |
| Manufacturer Part Number | 547578 |
| Series | DSM |
| Size | 25 |
| Actuator Design | Rotary vane |
| Mode of Operation | Double-acting |
| Swivel Angle / Adjustment Range | 0°–270° |
| Theoretical Torque | 5 Nm at 6 bar |
| Operating Pressure | 1.5–10 bar |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Cushioning Angle | 1.2° |
| Maximum Swivel Frequency | 2 Hz at 6 bar |
| Permissible Mass Moment of Inertia | 0.015 kg·m² |
| Pneumatic Connection | M5 |
| Position Detection | Via compatible proximity switch |
| Materials | Wrought aluminum alloy housing; nickel-plated steel drive shaft; TPE-U(PU) seals |
| Ambient Temperature | −10–60 °C |
| Weight | 700 g |
Information About DSM-25-270-P-A-B
The DSM-25-270-P-A-B is a size 25 actuator in the Festo DSM series. Elastic cushioning rings or pads reduce impact at both ends of the swivel movement. Proximity-switch compatibility supports position monitoring during machine operation. Its aluminum alloy housing, nickel-plated steel shaft, and M5 pneumatic connections support integration into handling and assembly equipment.
Key Features:
- Adjustable Rotation: Provides a swivel angle adjustment range of 0°–270°.
- Double-Acting Operation: Uses compressed air to drive rotation in both directions.
- Rotary Vane Mechanism: Converts pneumatic pressure directly into output shaft rotation.
- Rated Torque: Produces a theoretical torque of 5 Nm at 6 bar.
- Elastic Cushioning: Includes cushioning rings or pads at both ends of movement.
- Position Monitoring: Supports compatible proximity switches for detecting actuator position.
- Pneumatic Connections: Uses M5 ports for integration into compatible air circuits.
- Flexible Installation: Supports mounting in any orientation using internal threaded mounting points.
The DSM-25-270-P-A-B delivers the reliability and precision required for pneumatic turning and orientation in automated handling systems.
