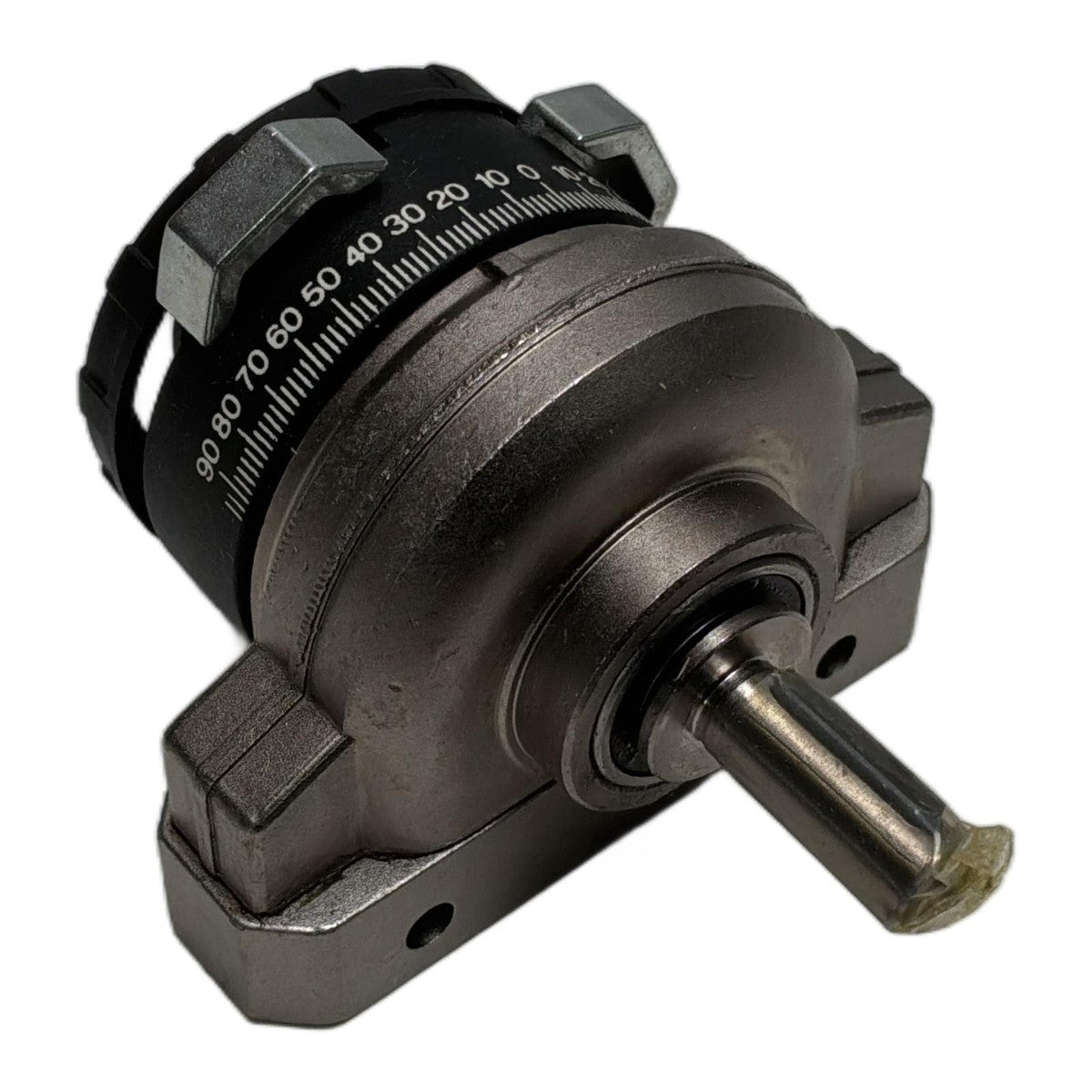

Festo DSR-10-180-P Pneumatic Semi-Rotary Actuator 180° Rotation
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSR-10-180-P
Description
The Festo DSR-10-180-P is a compact pneumatic semi-rotary drive designed to convert compressed air into controlled rotary motion for industrial automation equipment. It provides an adjustable rotation angle of 0° to 180° and a theoretical torque of 0.5 Nm at 6 bar, making it suitable for positioning, turning, and handling lightweight components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | DSR-10-180-P |
| Subcategory | Pneumatic Rotary Actuators |
| Manufacturer Part Number | 33297 |
| Product Type | Semi-rotary drive |
| Drive Design | Rotary vane |
| Mode of Operation | Double-acting |
| Size | 10 |
| Theoretical Torque at 6 bar | 0.5 Nm |
| Operating Pressure | 2.5–8 bar |
| Maximum Swivel Frequency at 6 bar | 3 Hz |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Pneumatic Connection | M3 |
| Mounting | Through-hole |
| Housing Material | Die-cast zinc |
| Ambient Temperature | −10 °C to +60 °C |
| Weight | 0.22 lb |
Information About DSR-10-180-P
The DSR-10-180-P belongs to Festo’s DSR series of rotary vane actuators and has manufacturer part number 33297. Its double-acting design uses compressed air to drive movement in both rotational directions, while elastic cushioning pads help absorb impact at the end positions. The actuator supports mounting in any position and uses an M3 pneumatic connection with through-hole mounting. Its die-cast zinc housing, nickel-plated steel drive shaft, and NBR seals provide a compact construction for pneumatic machinery.
Key Features:
-
Adjustable Rotation Angle: Provides a swivel range of 0° to 180°.
-
Double-Acting Operation: Uses compressed air for movement in both directions.
-
Rotary Vane Design: Converts pneumatic pressure into rotary motion through a compact vane mechanism.
-
Theoretical Torque: Delivers 0.5 Nm at a supply pressure of 6 bar.
-
Elastic End-Position Cushioning: Uses cushioning rings or pads at both ends of travel.
-
Compact Size: Size 10 supports integration into space-constrained equipment.
-
Flexible Mounting: Allows installation in any mounting position using through-holes.
-
Industrial Materials: Features a die-cast zinc housing, nickel-plated steel shaft, and NBR seals.
The DSR-10-180-P delivers reliable rotary actuation for component positioning, small-part handling, assembly equipment, and automated machine mechanisms.
