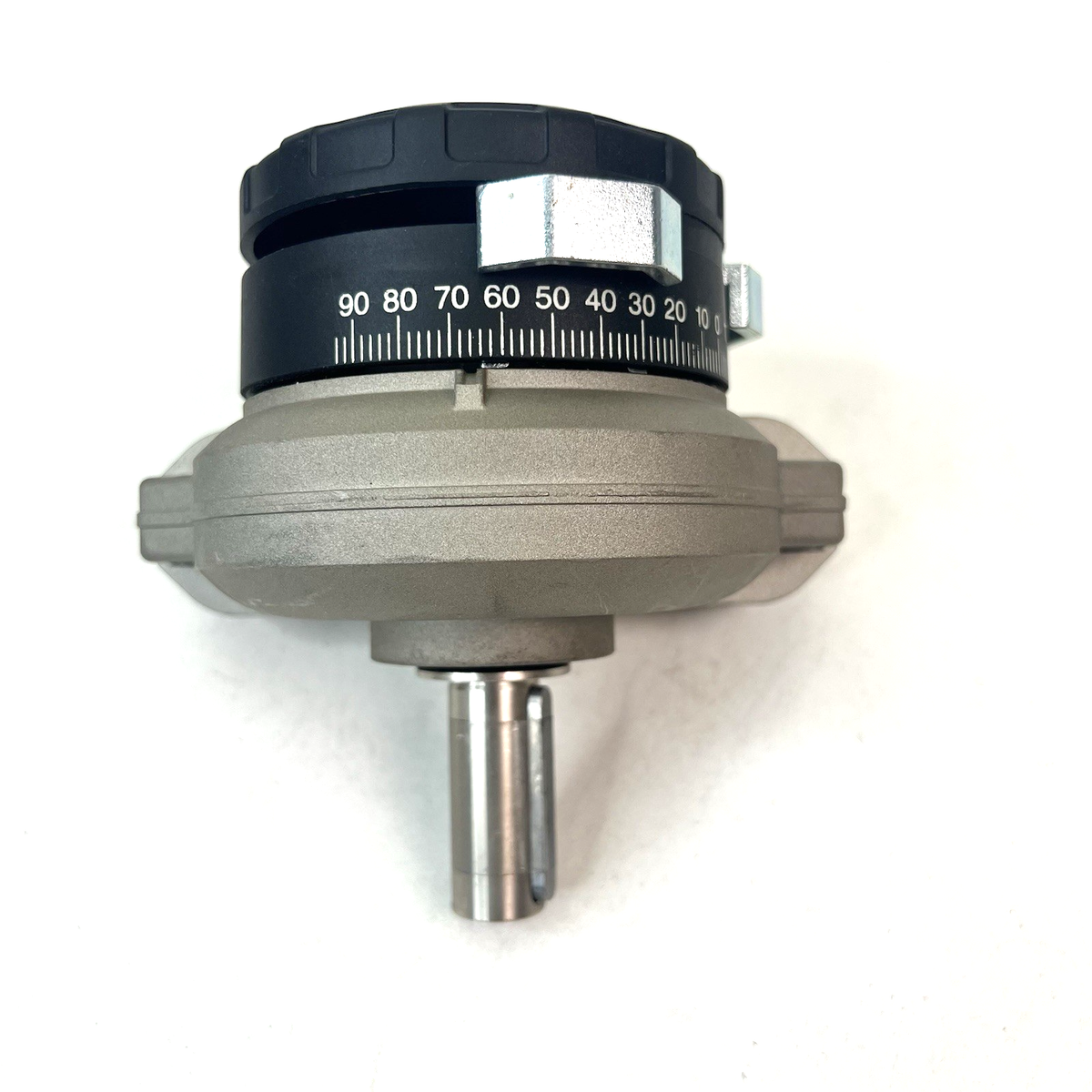

Festo DSR-32-180-P Double-Acting Pneumatic Semi-Rotary Actuator
- Regular price
- $342.00
- Sale price
- $342.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSR-32-180-P
Description
The Festo DSR-32-180-P is a double-acting pneumatic semi-rotary actuator designed for turning and orienting components in automated machinery. Its vane mechanism provides adjustable rotation from 0° to 180° and a theoretical torque of 10 Nm at 6 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | DSR-32-180-P |
| Subcategory | Pneumatic Actuator |
| Manufacturer Part Number | 11912 |
| Series | DSR |
| Size | 32 |
| Actuator Design | Rotary vane |
| Mode of Operation | Double-acting |
| Swivel Angle / Adjustment Range | 0°–180° |
| Theoretical Torque | 10 Nm at 6 bar |
| Operating Pressure | 1.5–8 bar |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Cushioning Angle | 1.2° |
| Maximum Swivel Frequency | 3 Hz at 6 bar |
| Pneumatic Connection | G1/8 |
| Position Detection | None |
| Mounting | Through-holes; any mounting orientation |
| Materials | Die-cast zinc housing; nickel-plated steel drive shaft; NBR seals |
| Ambient Temperature | −10–60 °C |
| Weight | 1.30 kg |
Information About DSR-32-180-P
The DSR-32-180-P is a size 32 actuator in the Festo DSR series. Compressed air acts on the rotary vane to drive the output shaft in either direction. Elastic cushioning rings or pads reduce impact at both ends of movement. G1/8 pneumatic connections and through-hole mounting support installation in handling, assembly, and transfer equipment.
Key Features:
- Adjustable Rotation: Provides a swivel angle adjustment range of 0°–180°.
- Double-Acting Operation: Uses compressed air to power rotation in both directions.
- Rotary Vane Design: Converts pneumatic pressure directly into rotary shaft movement.
- Rated Torque: Produces a theoretical torque of 10 Nm at 6 bar.
- Elastic Cushioning: Includes cushioning rings or pads at both ends of travel.
- Operating Pressure: Supports a compressed-air supply of 1.5–8 bar.
- Flexible Mounting: Allows installation in any orientation using through-holes.
- Threaded Connections: Uses G1/8 ports for connection to compatible pneumatic circuits.
The DSR-32-180-P delivers the reliability and precision required for pneumatic turning and orientation in automated equipment.
