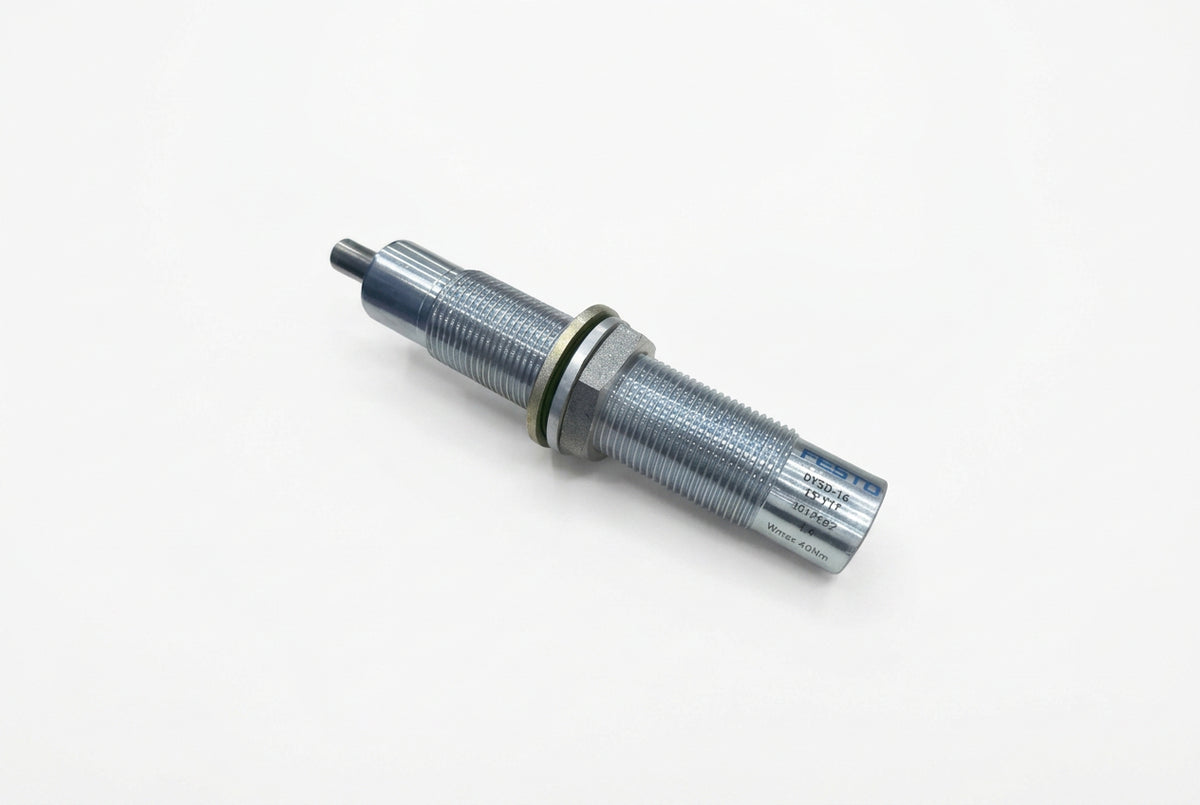

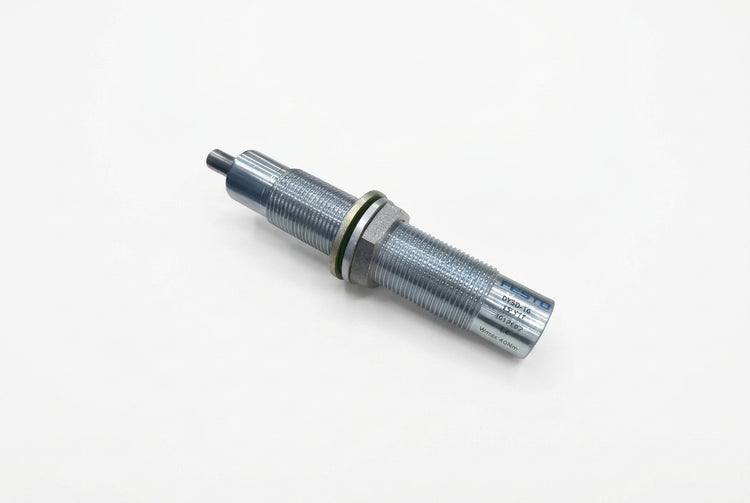

Festo DYSD-Q11-16-15-Y1F-S-Y14 Self-Adjusting Shock Absorber
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DYSD-Q11-16-15-Y1F-S-Y14
Description
The Festo DYSD-Q11-16-15-Y1F-S-Y14 is a self-adjusting shock absorber designed to cushion the end positions of compatible pneumatic semi-rotary drives. It features a 15 mm stroke and a soft cushioning characteristic, helping reduce impact forces, vibration, and mechanical stress in automated machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | DYSD-Q11-16-15-Y1F-S-Y14 |
| Subcategory | Shock Absorbers |
| Manufacturer Part Number | 8161529 |
| Product Type | Self-adjusting shock absorber |
| Stroke | 15 mm |
| Cushioning | Soft, self-adjusting |
| Maximum Impact Velocity | 1 m/s |
| Maximum Energy Absorption per Stroke | 30 J |
| Maximum Stop Force | 2,000 N |
| Ambient Temperature | 0°C to 60°C |
| Mounting | Lock nut; any position |
| Weight | 0.49 lb |
Information About DYSD-Q11-16-15-Y1F-S-Y14
The DYSD-Q11-16-15-Y1F-S-Y14 belongs to Festo’s DYSD series of shock absorbers designed for DRRD semi-rotary drives. Its single-acting, push-type mechanism absorbs kinetic energy during movement and resets for the next operating cycle. The unit supports a maximum impact velocity of 1 m/s and maximum energy absorption of 30 J per stroke. Its galvanized steel housing, high-alloy steel piston rod, and NBR seals support industrial use in ambient temperatures from 0°C to 60°C.
Key Features:
-
Self-Adjusting Cushioning: Automatically adapts damping to help control impact.
-
15 mm Stroke: Provides a defined cushioning travel distance.
-
Soft Cushioning Version: Designed for compatible DRRD semi-rotary drives requiring the Y14 configuration.
-
Energy Absorption: Handles up to 30 J per stroke.
-
Impact Velocity: Supports impact speeds up to 1 m/s.
-
Maximum Stop Force: Rated up to 2,000 N.
-
Industrial Materials: Features a galvanized steel housing and high-alloy steel piston rod.
-
Compact Installation: Secures with a lock nut and can be mounted in any position.
The DYSD-Q11-16-15-Y1F-S-Y14 delivers controlled deceleration for compatible rotary actuators and automated machinery.
