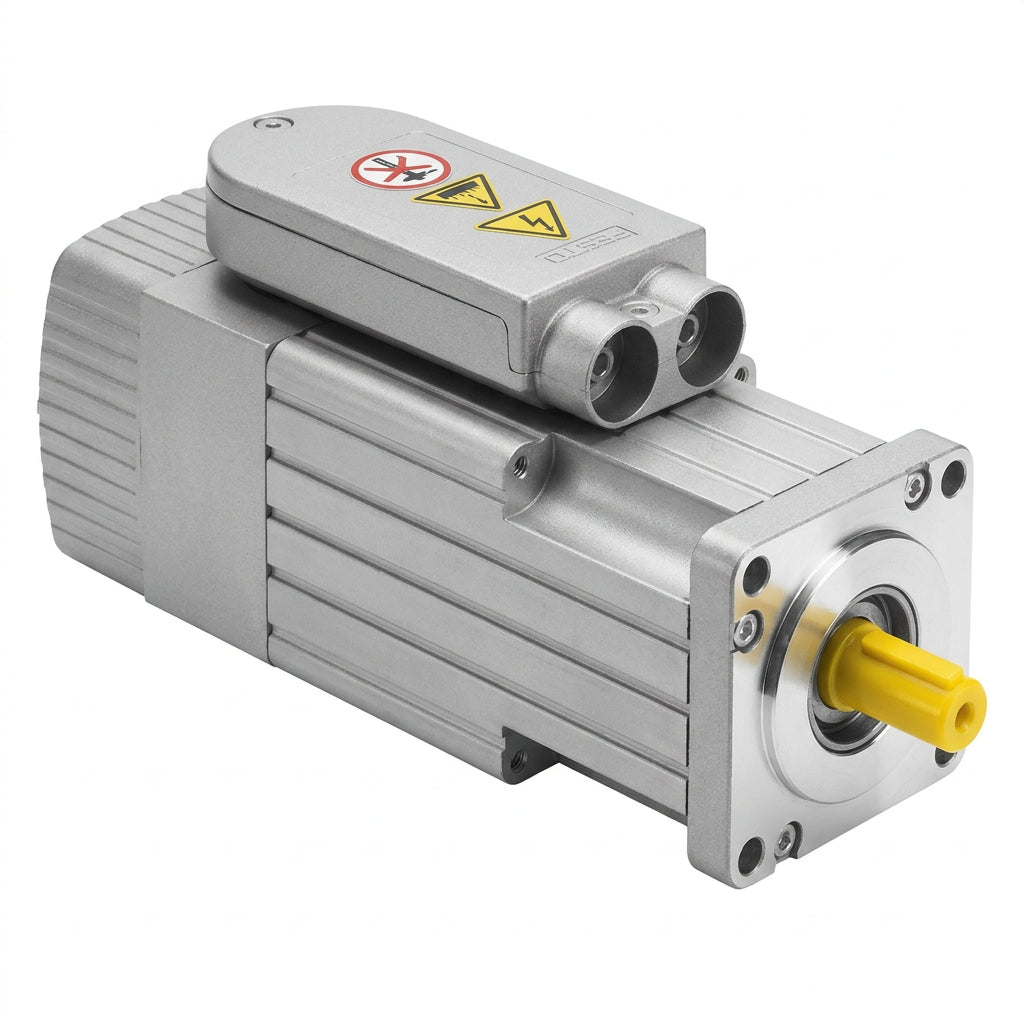

Festo EMMS-AS-55-M-LS-TMB AC Servo Motor with Multi-Turn Absolute Encoder and Holding Brake
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EMMS-AS-55-M-LS-TMB
Description
The Festo EMMS-AS-55-M-LS-TMB is an AC synchronous servo motor for controlled positioning and motion in automated machinery. It provides 461 W nominal power, 0.68 Nm nominal torque, and 2.7 Nm peak torque. A multi-turn absolute encoder supplies position feedback, while an integrated holding brake secures the shaft when appropriately controlled.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Electric Motors |
| Part Number | EMMS-AS-55-M-LS-TMB |
| Subcategory | AC Servo Motors |
| Series / Manufacturer Article Number | EMMS-AS / 550113 |
| Motor Type / Configuration | AC synchronous servo; medium length; low-voltage standard winding |
| Flange Size | 55 mm |
| Nominal DC Voltage | 360 V, manufacturer-listed drive-system reference |
| Nominal Motor Power | 461 W |
| Nominal / Standstill / Peak Torque | 0.68 Nm / 0.98 Nm / 2.7 Nm |
| Nominal / Maximum Speed | 6,600 rpm / 7,330 rpm |
| Nominal / Peak Current | 1.19 A / 5 A |
| Position Feedback | Absolute multi-turn inductive encoder; 19-bit resolution |
| Encoder Interface | EnDat 2.2 |
| Holding Brake | 24 VDC; 0.8 Nm holding torque; 10 W |
| Electrical Connection | Plug connector system |
| Protection / Insulation / Duty | IP54 / Class F / S1 |
| Temperature Monitoring | PTC resistor |
| Ambient Temperature | −10°C to +40°C |
| Weight | 1.70 kg (3.75 lb) |
Information About EMMS-AS-55-M-LS-TMB
The EMMS-AS-55-M-LS-TMB is a medium-length, 55 mm flange motor in Festo’s EMMS-AS series, identified by article number 550113. Its low-voltage standard winding operates through a compatible servo drive. The inductive encoder uses an EnDat 2.2 interface with 19-bit resolution. Plug connections and PTC temperature monitoring support electrical integration and motor supervision.
Key Features:
- Synchronous Servo Design: Supports controlled speed, torque, and positioning through a compatible servo drive.
- Rated Output: Provides 461 W nominal mechanical power.
- Torque Capability: Delivers 0.68 Nm nominal torque and 2.7 Nm peak torque.
- Speed Range: Specifies 6,600 rpm nominal speed and 7,330 rpm maximum speed.
- Absolute Feedback: Incorporates a multi-turn inductive encoder with 19-bit resolution.
- Encoder Interface: Uses EnDat 2.2 communication for position feedback.
- Holding Brake: Includes a 24 VDC brake rated for 0.8 Nm holding torque.
- Thermal Monitoring: Uses a PTC resistor for motor temperature supervision.
The EMMS-AS-55-M-LS-TMB delivers the reliability and precision required for servo-controlled positioning and coordinated motion in industrial automation.
