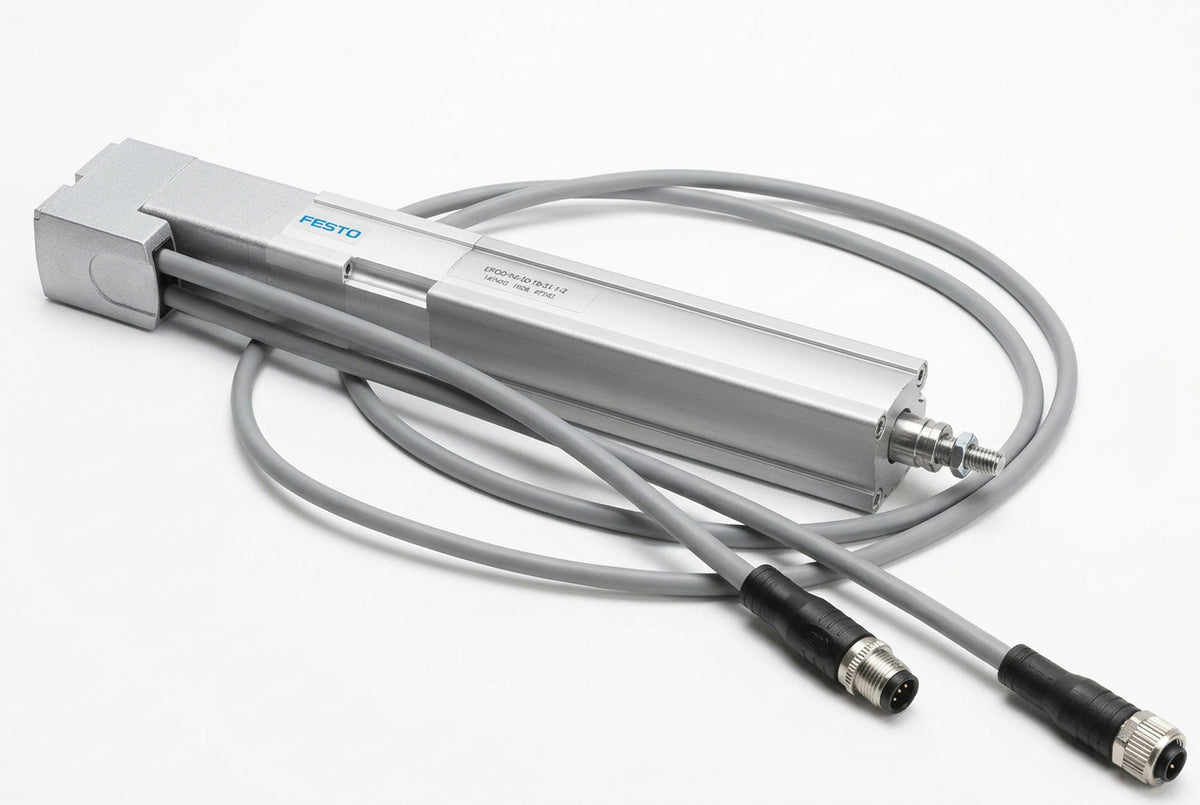

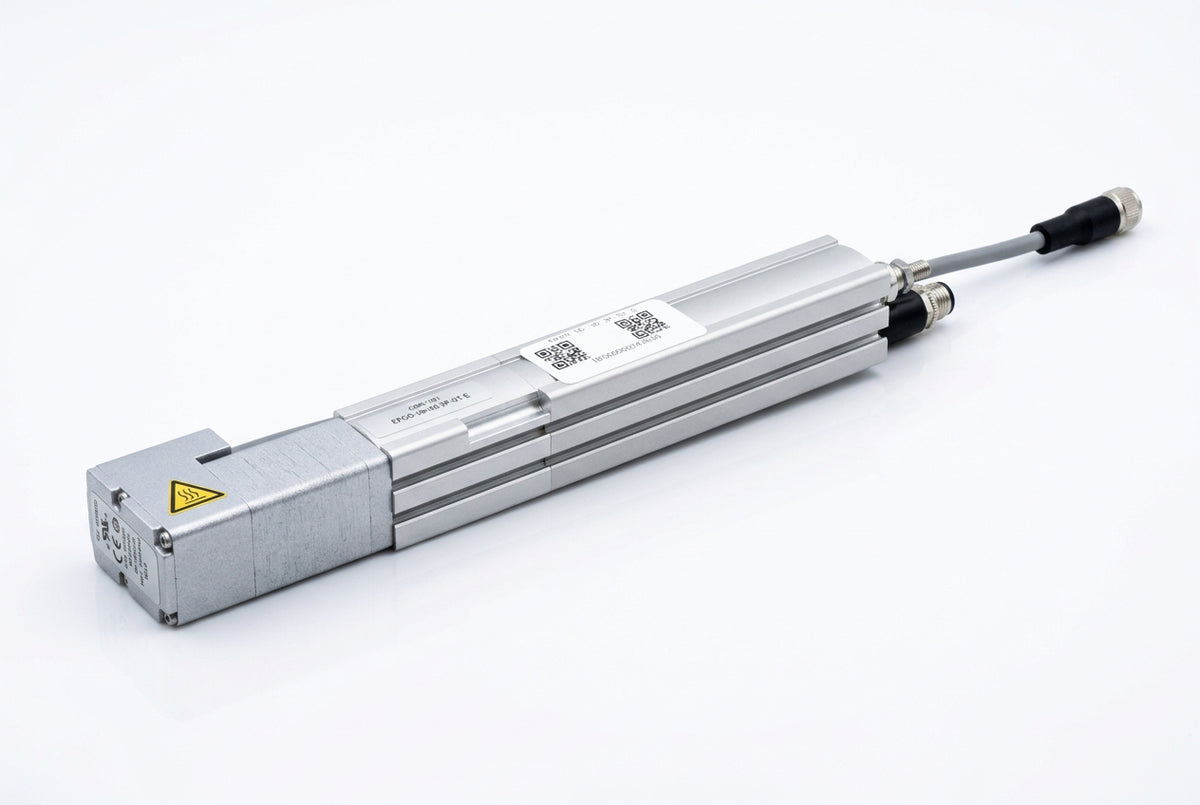

Festo EPCO-16-50-3P-ST-E Electric Cylinder with Stepper Motor and Incremental Encoder
- Regular price
- $1,535.00
- Sale price
- $1,535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EPCO-16-50-3P-ST-E
Description
The Festo EPCO-16-50-3P-ST-E is an electric cylinder for controlled linear positioning in assembly and handling equipment. Its integrated stepper motor drives a ball screw through a 50 mm stroke at speeds up to 0.125 m/s. An incremental encoder provides motion feedback for use with a compatible motor controller.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Electric Actuators |
| Part Number | EPCO-16-50-3P-ST-E |
| Subcategory | Electric Cylinders |
| Series / Manufacturer Article Number | EPCO / 1476415 |
| Size / Stroke | 16 / 50 mm |
| Motor Type | Stepper motor |
| Transmission | Ball screw; 8 mm spindle diameter; 3 mm lead |
| Piston-Rod Connection | M6 male thread |
| Maximum Speed | 0.125 m/s |
| Maximum Acceleration | 10 m/s² |
| Maximum Feed Force | 125 N |
| Repetition Accuracy | ±0.02 mm |
| Nominal Voltage / Motor Current | 24 VDC / 1.4 A |
| Position Feedback | Optical incremental encoder; RS422 TTL A/B channels with zero index |
| Duty Cycle / Protection | 100% / IP40 |
| Ambient Temperature | 0°C to +50°C |
| Electrical / Mechanical Mounting | Plug connections / female threads or mounting accessories |
| Housing / Piston-Rod Material | Anodized wrought aluminum alloy / high-alloy stainless steel |
| Weight | 0.70 kg (1.54 lb) |
Information About EPCO-16-50-3P-ST-E
The EPCO-16-50-3P-ST-E is a size 16 actuator from Festo’s EPCO series, identified by article number 1476415. Its ball screw has a 3 mm lead, and a plain-bearing guide supports the piston rod. The optical encoder communicates through RS422 TTL A/B channels with a zero index. An M6 male rod thread and threaded housing mounting points support mechanical integration.
Key Features:
- Electric Linear Motion: Converts stepper motor rotation into controlled piston-rod travel.
- Ball Screw Drive: Uses a 3 mm spindle lead to transmit motion to the rod.
- Defined Travel: Provides a nominal stroke of 50 mm.
- Position Feedback: Incorporates an optical incremental encoder with a zero index.
- Repeatable Positioning: Specifies repetition accuracy of ±0.02 mm.
- Feed Force: Provides a maximum axial feed force of 125 N.
- Mechanical Connection: Uses an M6 male thread at the piston-rod end.
- Continuous Duty: Supports a specified duty cycle of 100%.
The EPCO-16-50-3P-ST-E delivers the reliability and precision required for electrically controlled linear positioning in automated production equipment.
