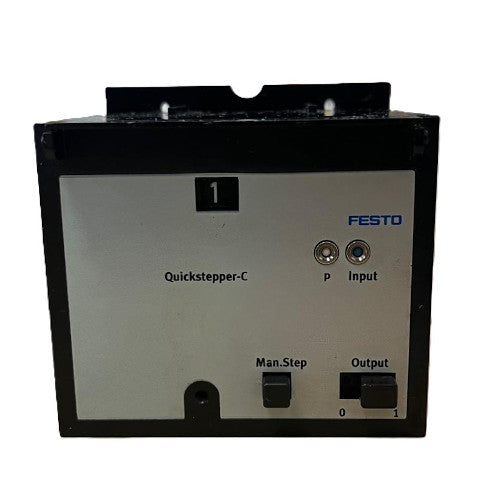

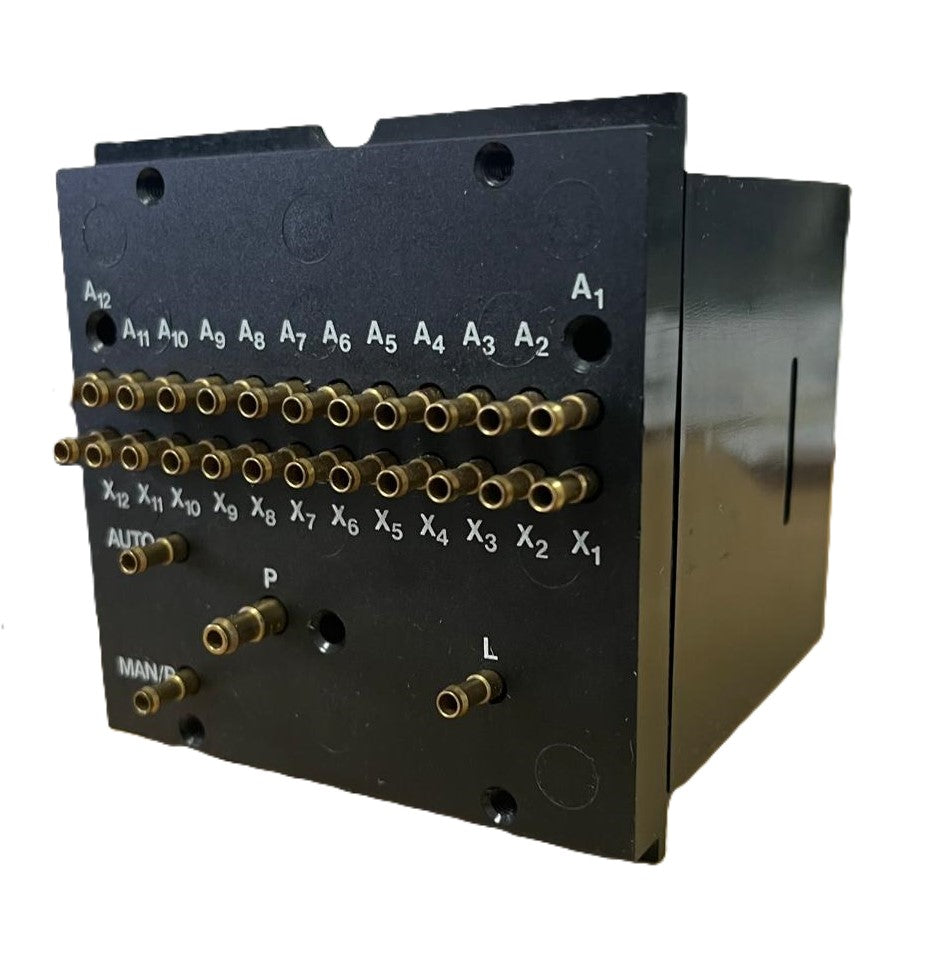

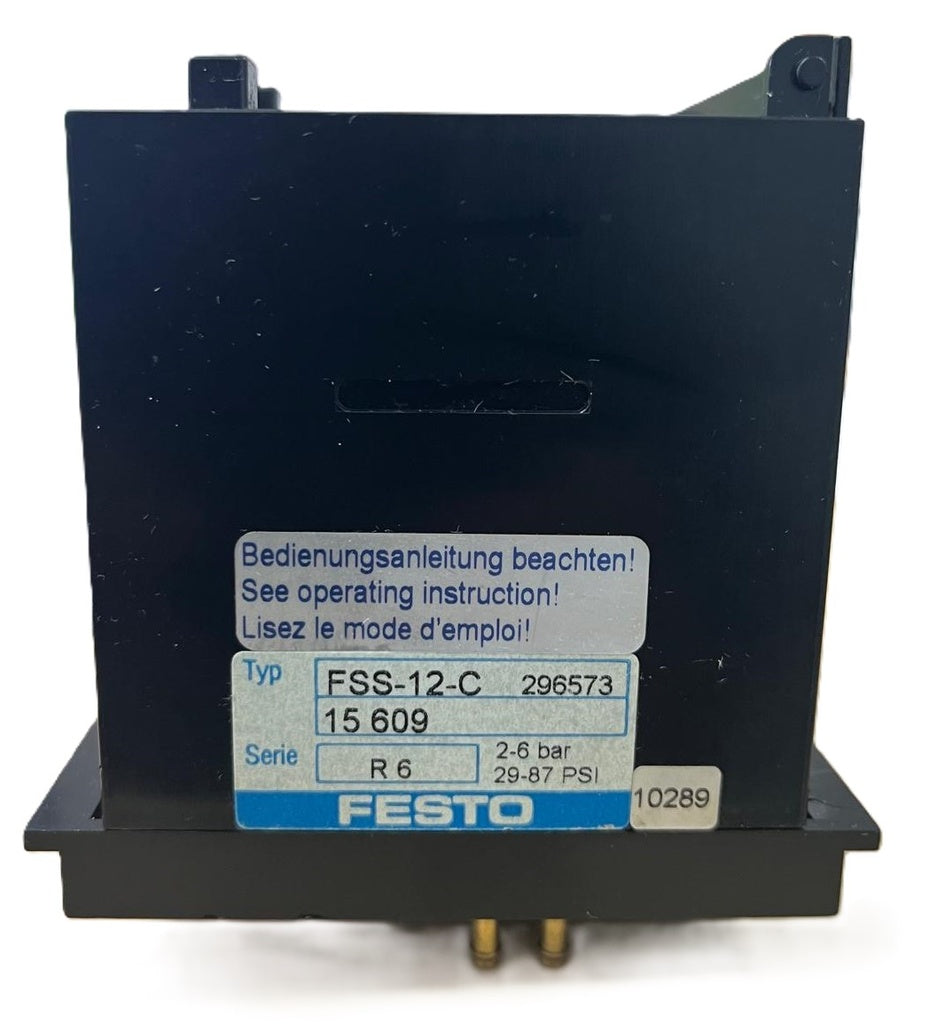

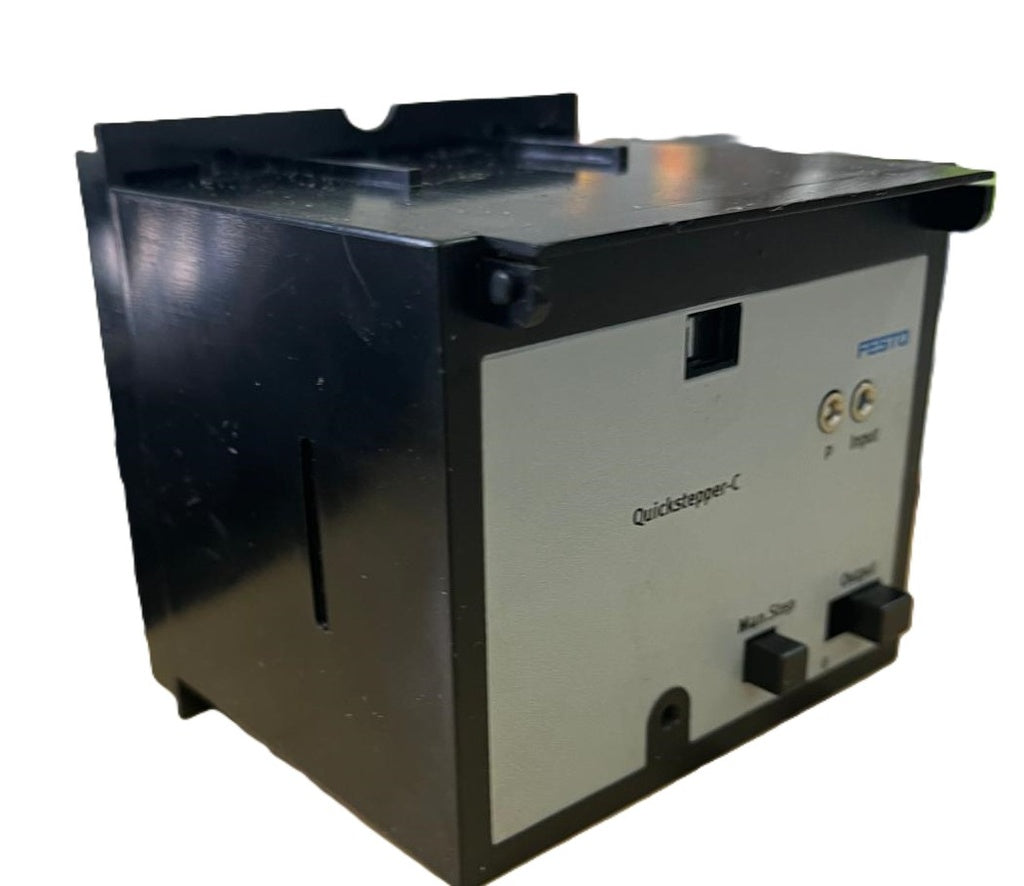

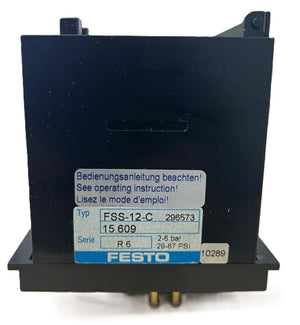

Festo FSS-12-C Quickstepper 12-Step Pneumatic Sequencer
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSS-12-C
Description
The Festo FSS-12-C Quickstepper is a pneumatic-mechanical sequencer designed to control step-by-step operating sequences in pneumatic automation systems. It provides 12 switching steps with start logic, coordinating pneumatic outputs in a defined order and requiring acknowledgment of each completed step before proceeding.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | FSS-12-C |
| Subcategory | Pneumatic Sequence Controllers |
| Manufacturer Part Number | 15609 |
| Product Type | Quickstepper pneumatic-mechanical sequencer |
| Number of Steps | 12 |
| Operating Pressure | 2.5–6 bar |
| Nominal Flow Rate | 60 L/min |
| Acknowledgment Response Pressure | ≥ 1.5 bar |
| Acknowledgment Drop-Off Pressure | ≤ 0.5 bar |
| Ambient Temperature | 5–40 °C |
| Housing Material | ABS |
| Weight | 0.99 lb |
Information About FSS-12-C
The FSS-12-C is a Festo pneumatic control unit designed for sequential control applications. Its combinable sequencer design uses compressed air to manage switching steps without relying on a conventional electronic programmable controller. The unit operates at a pressure range of 2.5–6 bar and has a nominal flow rate of 60 L/min. Its compact housing and ready-to-install configuration support integration into compatible pneumatic control systems.
Key Features:
-
12-Step Sequencing: Controls pneumatic operations through 12 sequential switching steps.
-
Pneumatic-Mechanical Control: Uses pneumatic logic to coordinate operating sequences.
-
Start Logic: Includes logic circuits for initiating a sequence.
-
Acknowledgment Control: Requires confirmation of a completed step before advancing.
-
Defined Output Sequence: Activates outputs in the order established by the control sequence.
-
Operating Pressure: Designed for a 2.5–6 bar supply.
-
Compact Installation: Supplied as a ready-to-install control unit.
-
Industrial Application: Suitable for compatible pneumatic automation and machine-control systems.
The FSS-12-C delivers sequential pneumatic control for automated machinery, handling systems, and step-based industrial processes.
