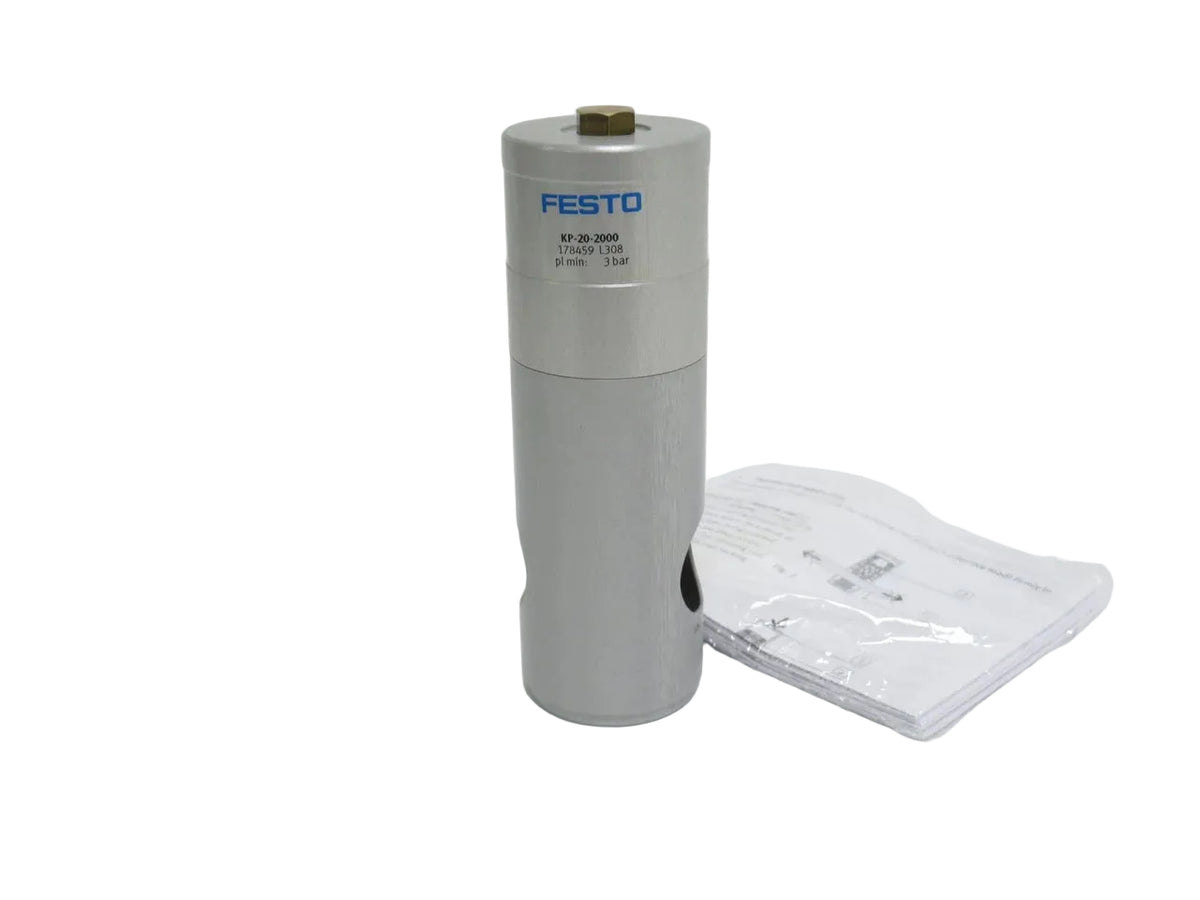

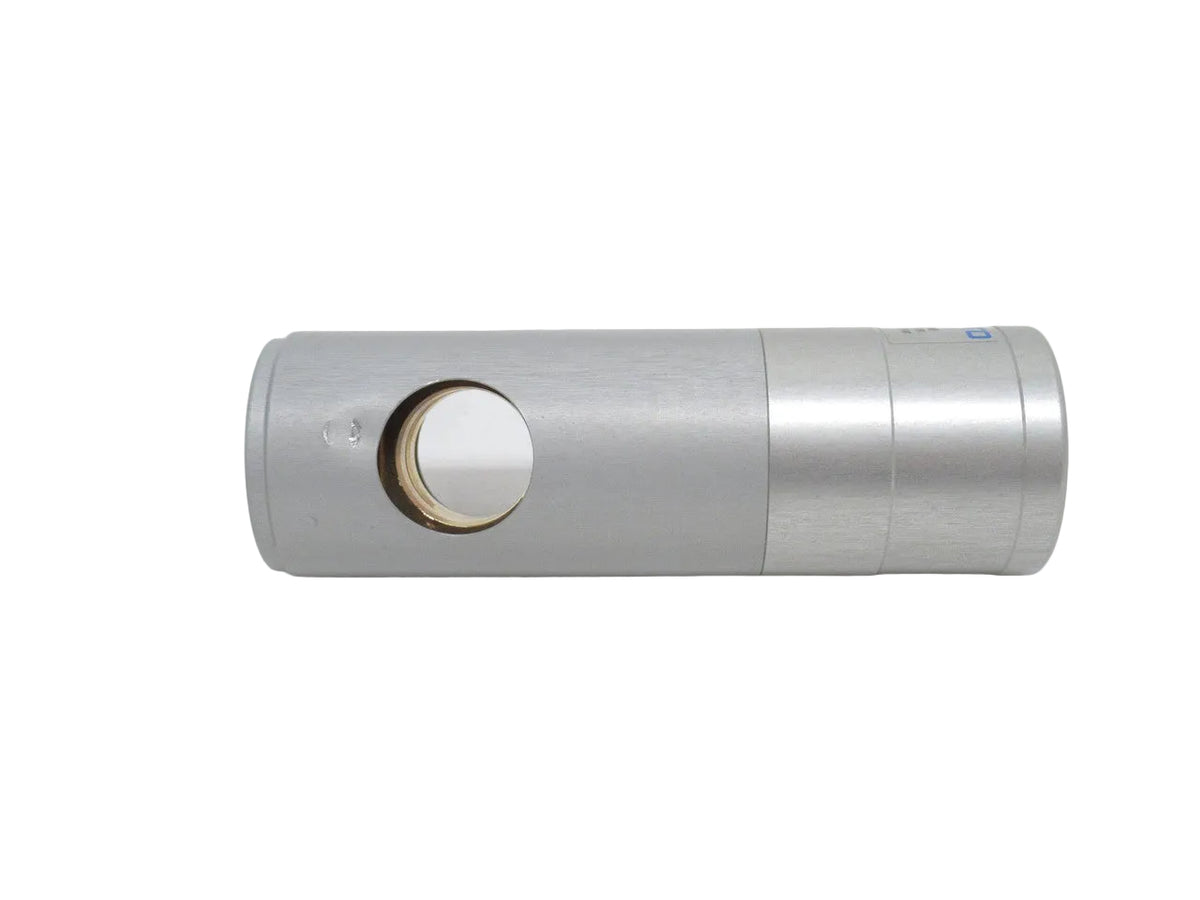

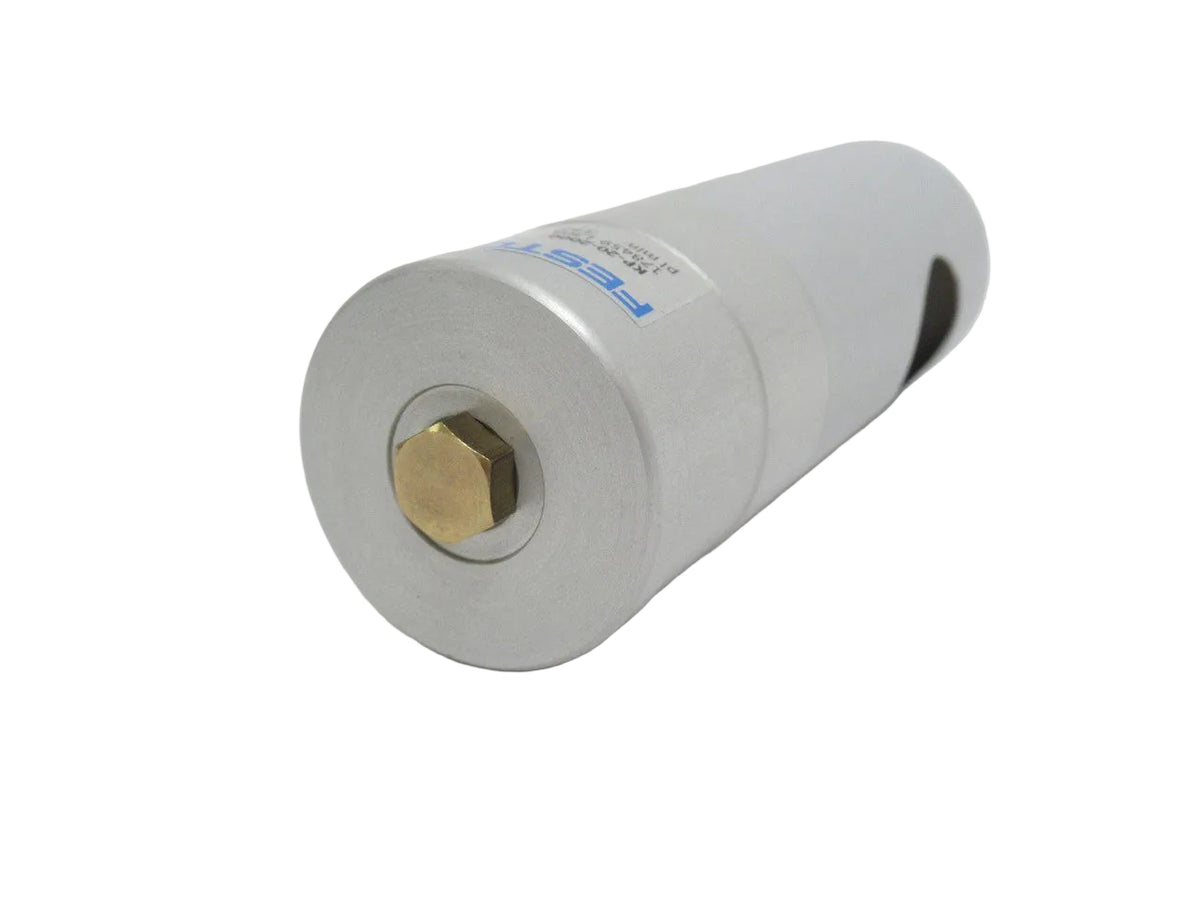

Festo KP-20-2000 Spring-Applied Pneumatic Clamping Cartridge
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KP-20-2000
Description
The Festo KP-20-2000 is a spring-applied clamping cartridge designed to hold 20 mm round rods in position. It provides a static holding force of 2,000 N and uses compressed air to release the clamping mechanism.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Machine Parts |
| Part Number | KP-20-2000 |
| Subcategory | Clamp |
| Manufacturer Part Number | 178459 |
| Series | KP |
| Product Type | Clamping cartridge |
| Rod Diameter | 20 mm |
| Static Holding Force | 2,000 N |
| Clamping Method | Spring-applied |
| Release Method | Compressed air |
| Release Pressure | ≥3 bar |
| Maximum Operating Pressure | 10 bar |
| Holding Direction | Bidirectional |
| Mechanism | Tilting wedge |
| Mounting Position | Any |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Materials | Anodized aluminum housing; brass jaws; spring steel spring; POM piston; NBR and TPE-U(PU) seals |
| Ambient Temperature | −10–80 °C |
| Weight | 170 g |
Information About KP-20-2000
The KP-20-2000 is part of the Festo KP series and uses a tilting-wedge mechanism to grip the rod. Its bidirectional clamping action resists axial movement in either direction. The cartridge combines an anodized aluminum housing with spring steel components and brass clamping jaws. Installation in any orientation supports integration into compatible rod-holding assemblies.
Key Features:
- Rod Compatibility: Designed to clamp round material with a diameter of 20 mm.
- Static Holding Force: Provides a rated holding force of 2,000 N.
- Spring-Applied Clamping: Uses mechanical spring force to engage the clamping mechanism.
- Pneumatic Release: Requires at least 3 bar of compressed air pressure to release.
- Bidirectional Holding: Resists axial rod movement in both directions.
- Tilting-Wedge Mechanism: Transfers spring force to the clamping elements.
- Flexible Installation: Supports mounting in any orientation.
- Industrial Materials: Combines an anodized aluminum housing, brass jaws, and spring steel components.
The KP-20-2000 delivers the reliability and precision required for static rod holding in automated machinery.
