Festo MPPE-3-1/4-10-010-B Proportional Pressure Regulator
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MPPE-3-1/4-10-010-B
Description

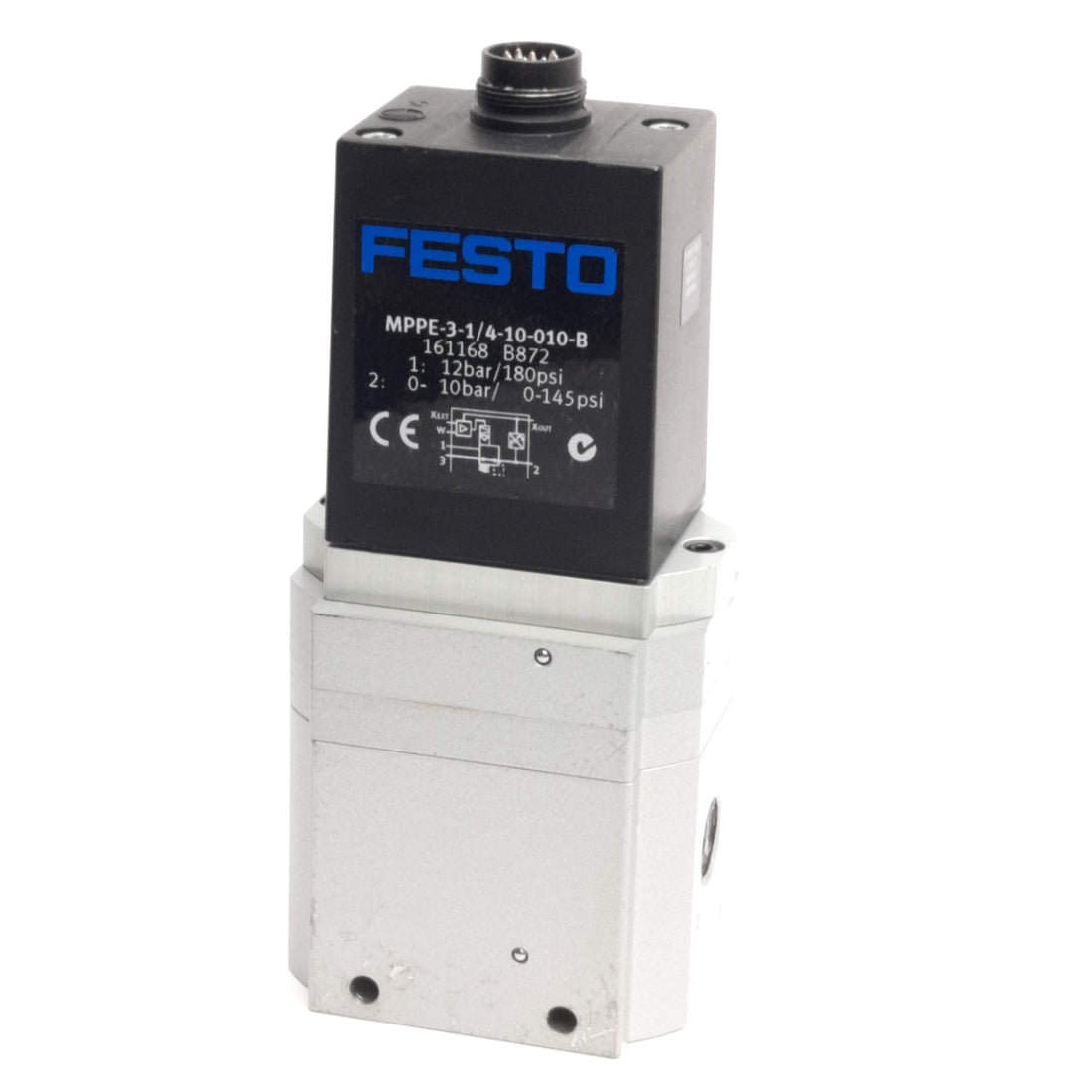

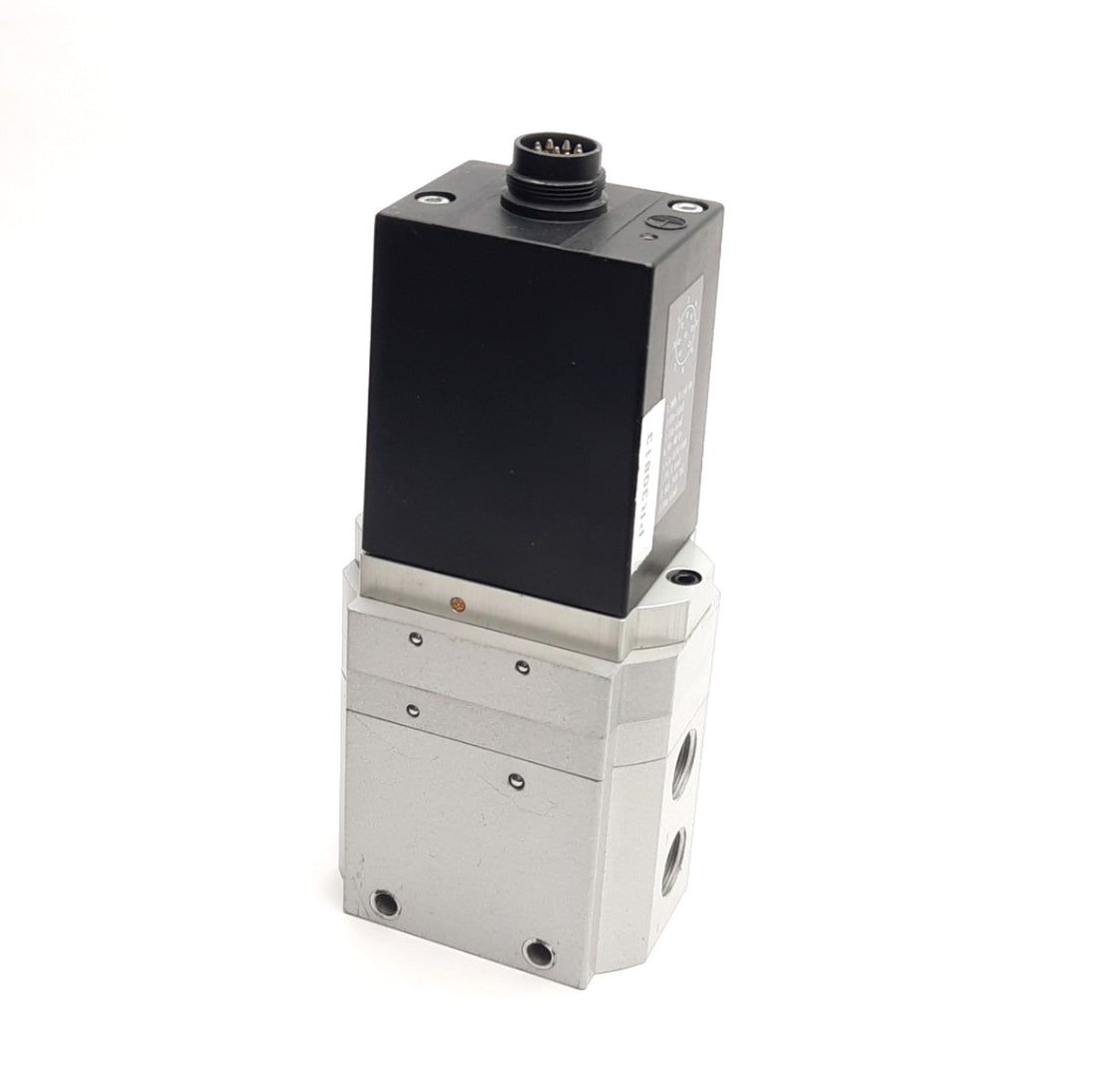

The Festo MPPE-3-1/4-10-010-B is an electrically actuated proportional pressure regulator for pneumatic automation systems. It regulates outlet pressure from 0 to 10 bar using a 0–10 V command signal and provides G1/4 connections for supply, regulated output, and exhaust.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | MPPE-3-1/4-10-010-B |
| Subcategory | Pneumatic Regulator |
| Manufacturer Part Number | 161168 |
| Series | MPPE |
| Valve Function | Three-way proportional pressure regulator, closed |
| Design / Actuation | Piloted piston regulator; electrical actuation |
| Pressure Regulation Range | 0–10 bar |
| Specified Inlet Pressure | 11–12 bar |
| Supply Voltage | 18–30 V DC |
| Setpoint / Actual-Value Signals | 0–10 V |
| Maximum Pressure Hysteresis | 0.05 bar |
| Nominal Supply / Exhaust Size | 7 mm / 7 mm |
| Pneumatic Connections | G1/4, ports 1–3 |

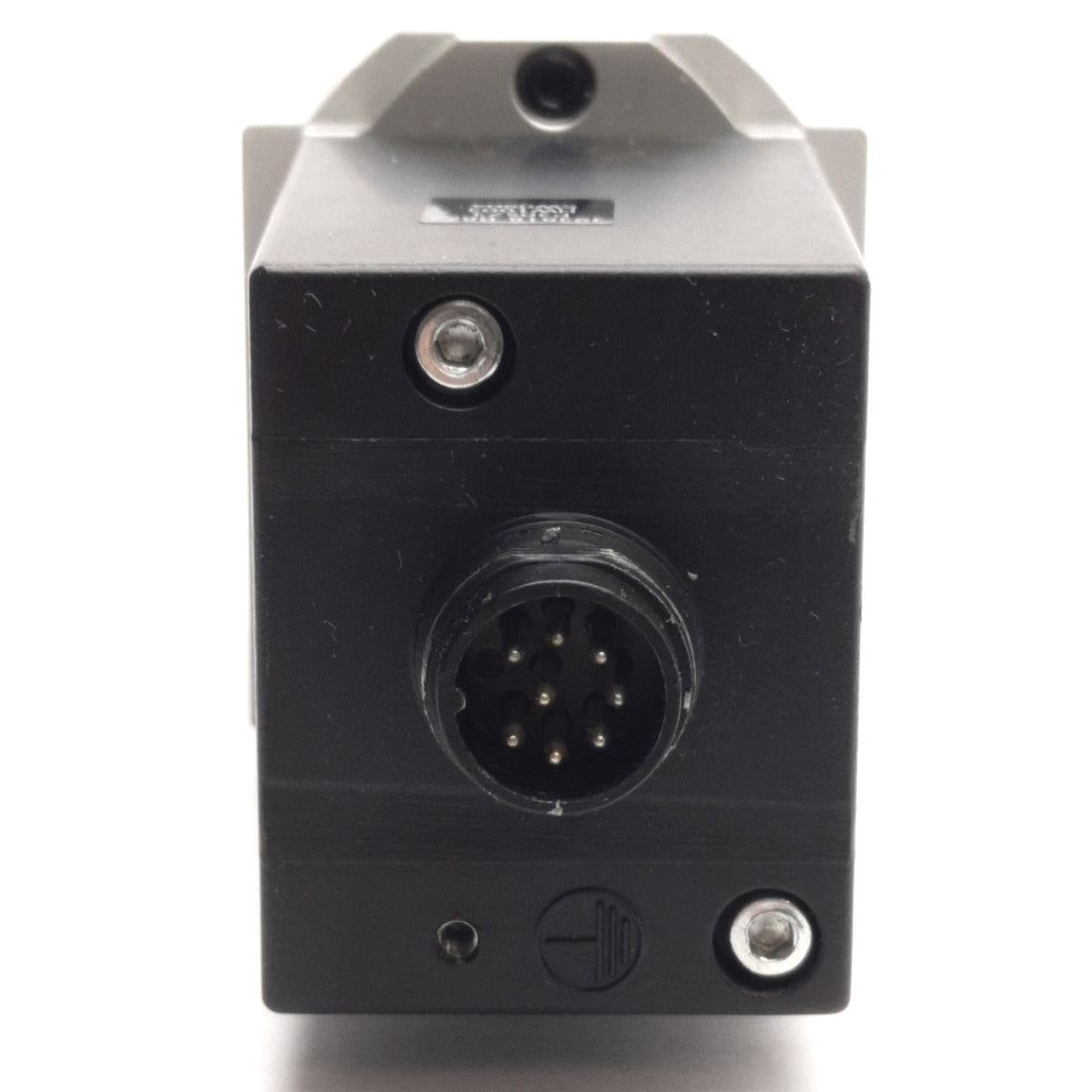

| Electrical Connection | M16 × 0.75 plug, 8-pin, to DIN 45326 |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4]; inert gases |
| Housing Material | Wrought aluminum alloy |
| Protection / Ambient Temperature | IP65; 0–50 °C |
| Weight | 920 g |
Information About MPPE-3-1/4-10-010-B
The MPPE-3-1/4-10-010-B is part of the Festo MPPE series and uses a piloted piston regulator design. Its three-way function allows pressure to increase or decrease according to the electrical setpoint. The unit operates from an 18–30 V DC supply and includes short-circuit and reverse-polarity protection for its electrical connections. An aluminum alloy housing and IP65 protection support installation in industrial pneumatic equipment.
Key Features:
- Proportional Pressure Control: Adjusts outlet pressure in response to a 0–10 V analog command.
- Regulation Range: Provides adjustable output pressure from 0 to 10 bar.
- Three-Way Function: Uses supply and exhaust paths to increase or decrease downstream pressure.
- Piloted Piston Design: Combines electrical actuation with pneumatic pressure regulation.
- Low Hysteresis: Specifies maximum pressure hysteresis of 0.05 bar.
- Threaded Connections: Includes G1/4 ports for supply, regulated output, and exhaust.
- Electrical Protection: Provides short-circuit and reverse-polarity protection for all electrical connections.
- Protected Construction: Uses an aluminum alloy housing with an IP65 enclosure rating.
The MPPE-3-1/4-10-010-B delivers the reliability and precision required for variable pneumatic pressure control in automated machinery.
