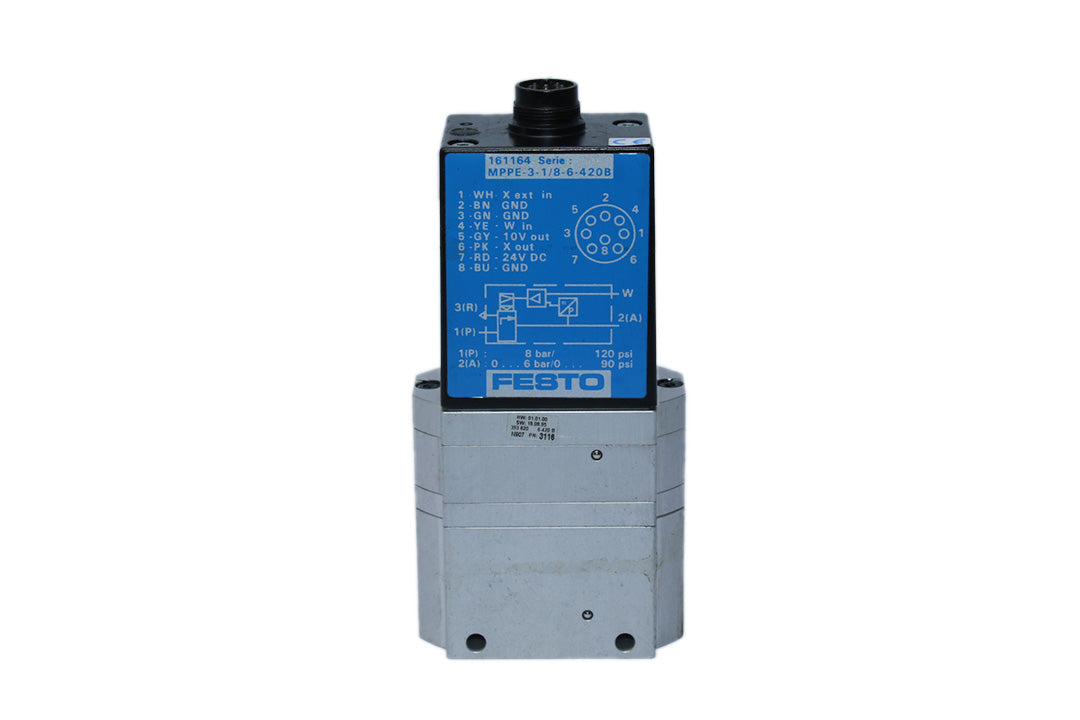

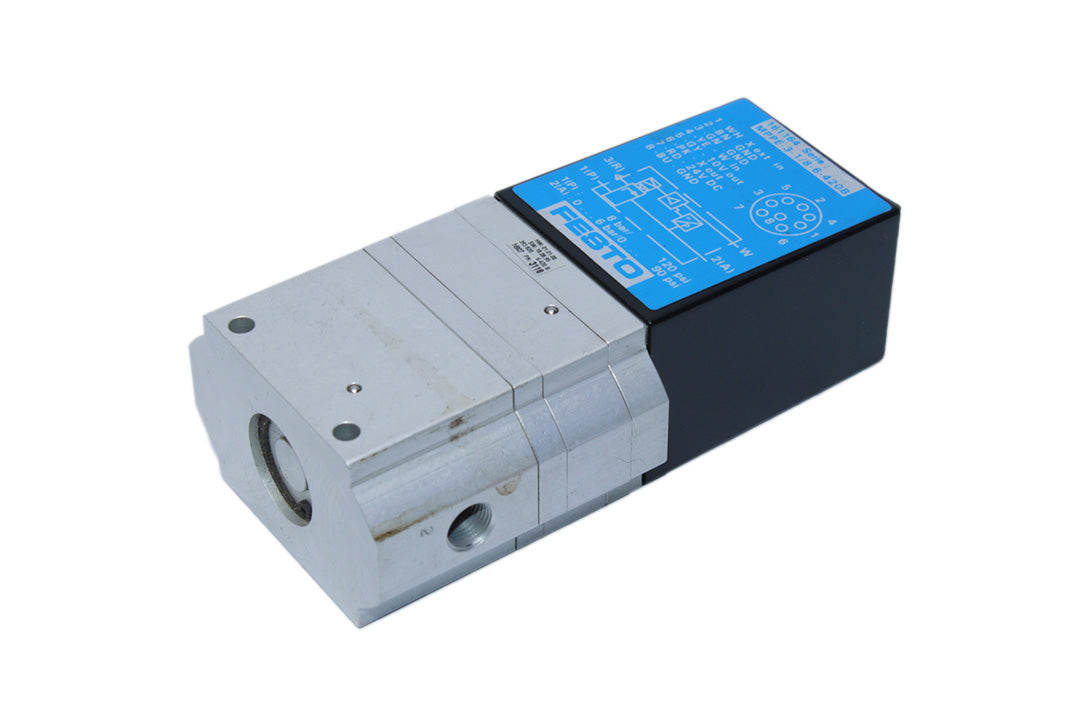

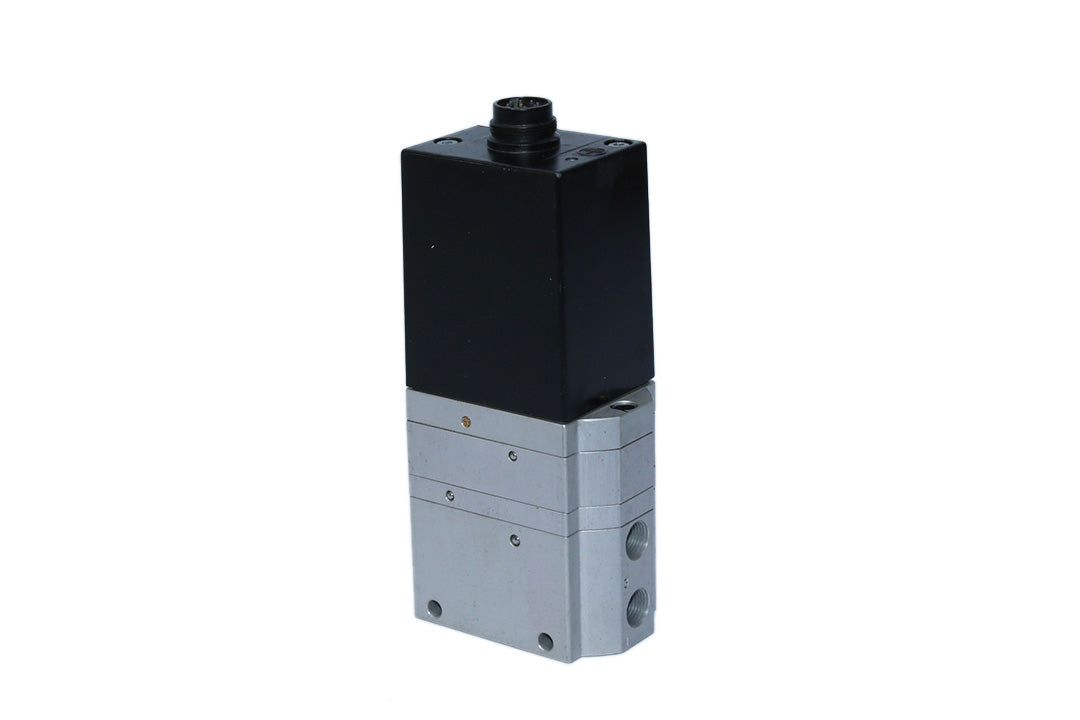

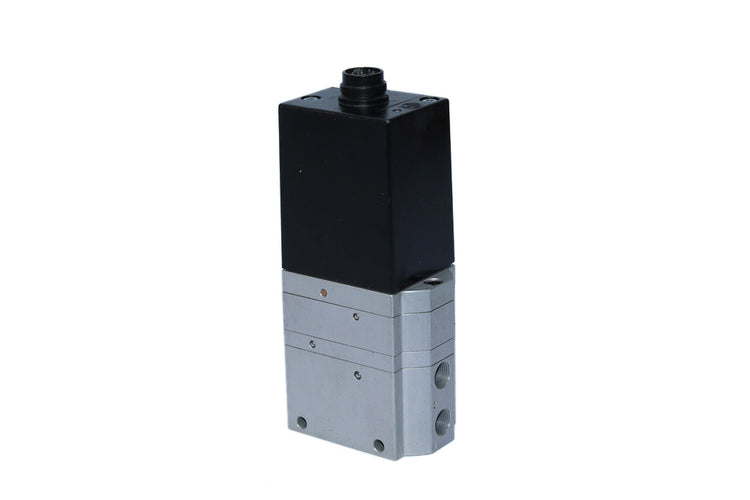

Festo MPPE-3-1/8-6-420-B Proportional Pressure Regulator 0–6 bar
- Regular price
- $1,797.00
- Sale price
- $1,797.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MPPE-3-1/8-6-420-B
Description
The Festo MPPE-3-1/8-6-420-B is an electrically controlled proportional pressure regulator designed to adjust compressed-air pressure in industrial pneumatic systems. It provides a 0–6 bar regulation range and uses a 4–20 mA control signal to regulate output pressure, supporting applications that require adjustable and repeatable pneumatic force.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | MPPE-3-1/8-6-420-B |
| Subcategory | Proportional Pressure Regulators |
| Manufacturer Part Number | 161164 |
| Valve Function | Three-way proportional pressure regulator |
| Pressure Regulation Range | 0–6 bar |
| Maximum Supply Pressure | 8 bar |
| Control Signal | 4–20 mA |
| Operating Voltage | 18–30 V DC |
| Nominal Flow Rate | 1,125 L/min |
| Pneumatic Connections | G1/8 |

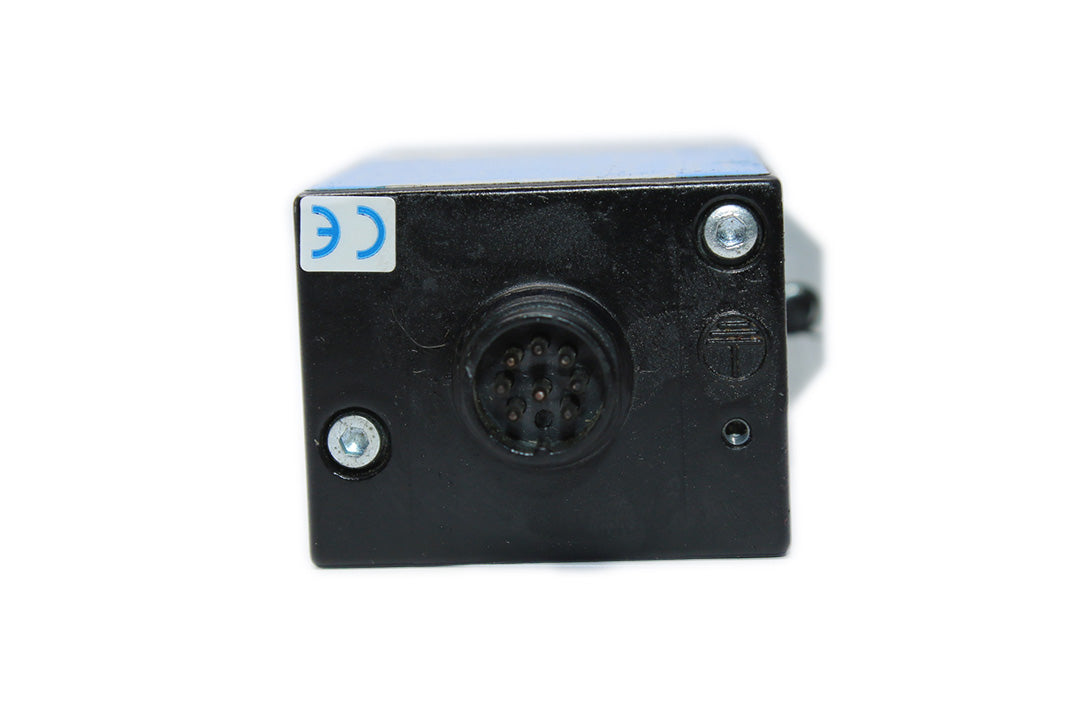

| Electrical Connection | 8-pin M16 connector |
| Enclosure Rating | IP65 |
| Ambient Temperature | −10 °C to +60 °C |
| Weight | 1.57 lb |
Information About MPPE-3-1/8-6-420-B
The MPPE-3-1/8-6-420-B belongs to Festo’s MPPE series of proportional pressure regulators and carries manufacturer part number 161164. Its three-way valve design regulates output pressure through an electrically controlled pilot mechanism. The unit features G1/8 pneumatic connections and an 8-pin M16 electrical connector. Its aluminum-alloy housing, NBR diaphragm, and IP65 protection rating support industrial pneumatic installations.
Key Features:
-
Proportional Pressure Control: Adjusts pneumatic output pressure in response to an electrical reference signal.
-
0–6 bar Regulation Range: Supports adjustable pressure control within its specified operating range.
-
4–20 mA Signal: Uses a current-based control and feedback signal.
-
Three-Way Valve Design: Regulates pressure through a proportional valve configuration.
-
G1/8 Connections: Connects to compatible pneumatic lines and fittings.
-
Electrical Control: Operates from an 18–30 V DC supply.
-
Industrial Protection: Features an IP65-rated enclosure.
-
Aluminum-Alloy Housing: Provides a durable body for industrial pneumatic applications.
The MPPE-3-1/8-6-420-B delivers controlled pneumatic pressure for automated machinery, pressure-dependent actuators, and industrial process equipment.
