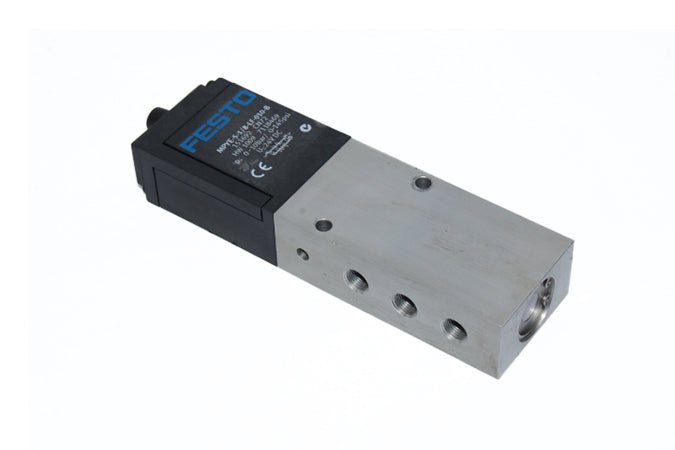

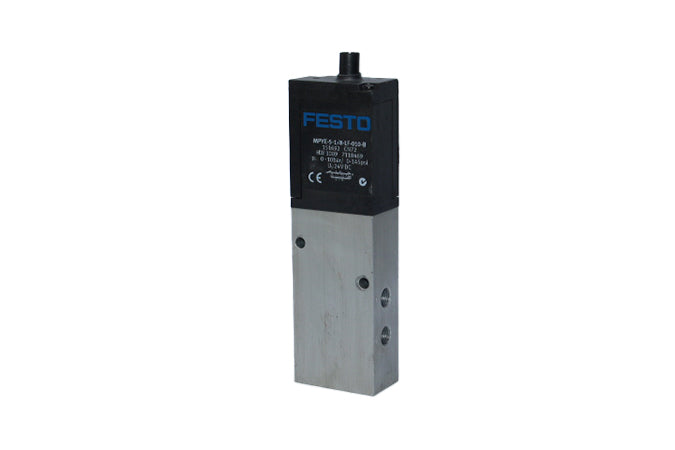

Festo MPYE-5-1/8-LF-010-B Proportional Directional Control Valve
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MPYE-5-1/8-LF-010-B
Description
The Festo MPYE-5-1/8-LF-010-B is a proportional directional control valve for regulating airflow in pneumatic automation systems. Its 5/3-way closed-center configuration, 0–10 V control signal, and 350 l/min nominal flow rate support variable control of compatible pneumatic actuators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Valves |
| Part Number | MPYE-5-1/8-LF-010-B |
| Subcategory | Control Valve |
| Manufacturer Part Number | 151692 |
| Series | MPYE |
| Valve Type | Proportional directional control valve |
| Valve Function | 5/3-way, closed center |
| Actuation / Control | Electrical actuation; direct-operated |
| Reset Method | Magnetic spring |
| Operating Pressure | 0–10 bar |
| Standard Nominal Flow Rate | 350 l/min, normalized to DIN 1343 |
| Control Signal | 0–10 V |
| Supply Voltage | 17–30 V DC |
| Pneumatic Connections | G1/8, ports 1–5 |

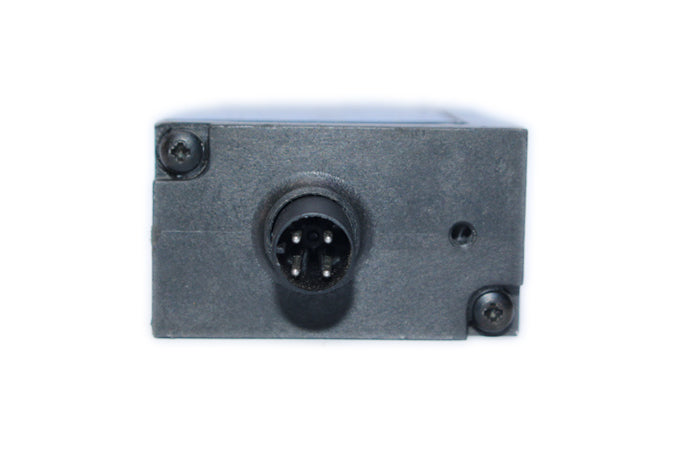

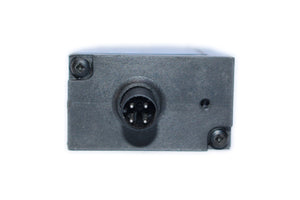

| Electrical Connection | M12 × 1 plug, 4-pin |
| Operating Medium | Compressed air to ISO 8573-1:2010 [6:4:4]; lubricated operation not permitted |
| Housing Material | Anodized aluminum |
| Protection Rating | IP65 |
| Weight | 285 g |
Information About MPYE-5-1/8-LF-010-B
The MPYE-5-1/8-LF-010-B is part of the Festo MPYE series of electrically actuated proportional valves. Its direct-operated design adjusts the valve opening in response to an analog voltage command. Five G1/8 pneumatic ports provide connections for supply, actuator lines, and exhaust. The valve operates from a 17–30 V DC supply and uses compressed air meeting the specified cleanliness requirements without oil lubrication.
Key Features:
- Proportional Control: Uses a 0–10 V analog signal to vary the valve opening and airflow.
- Closed-Center Function: Provides a 5/3-way configuration with blocked ports in the center position.
- Nominal Flow Rate: Delivers a standard nominal airflow of 350 l/min.
- Operating Pressure: Supports pneumatic supply pressures from 0 to 10 bar.
- Direct Electrical Actuation: Controls the valve directly without a separate pneumatic pilot stage.
- Threaded Pneumatic Ports: Includes five G1/8 connections for integration into compatible circuits.
- Electrical Connection: Uses an M12 × 1 four-pin plug connection.
- Protected Housing: Combines an anodized aluminum housing with an IP65 protection rating.
The MPYE-5-1/8-LF-010-B delivers the reliability and precision required for proportional airflow control in automated pneumatic equipment.
