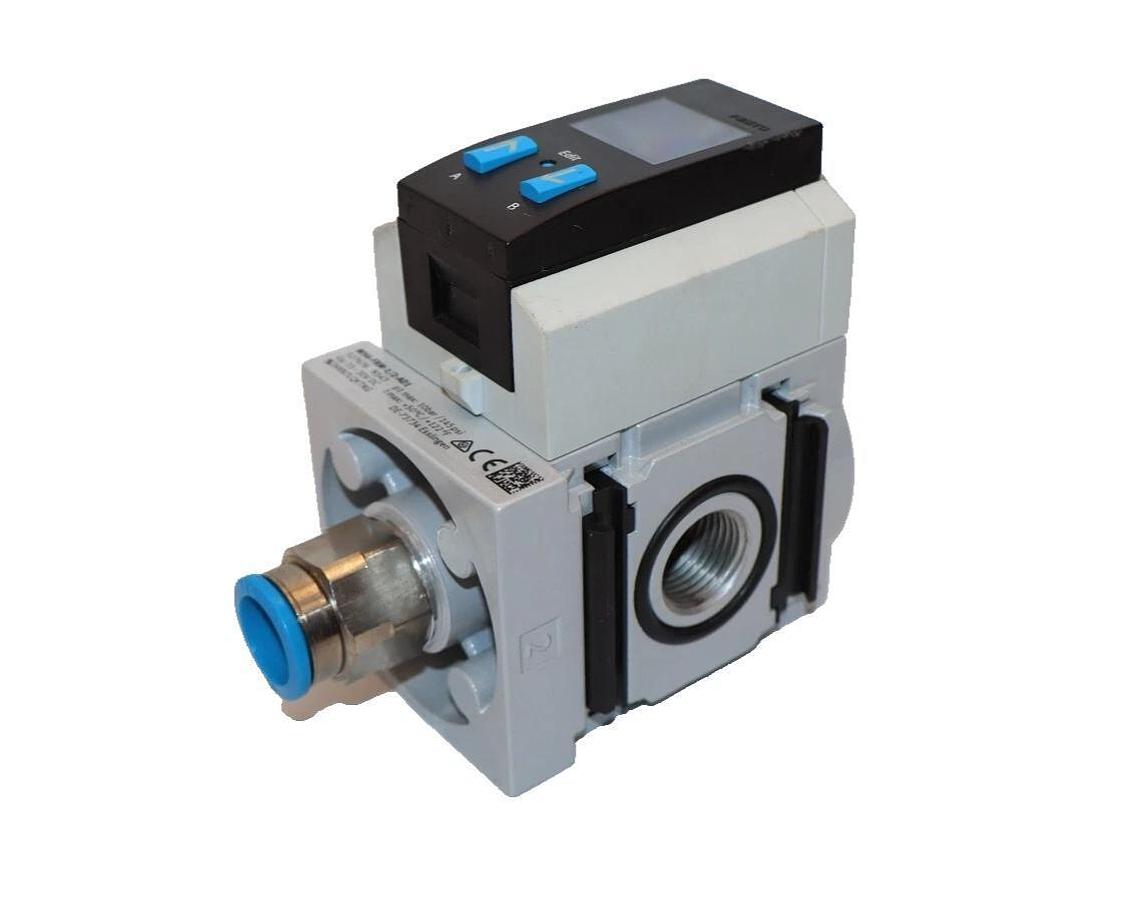

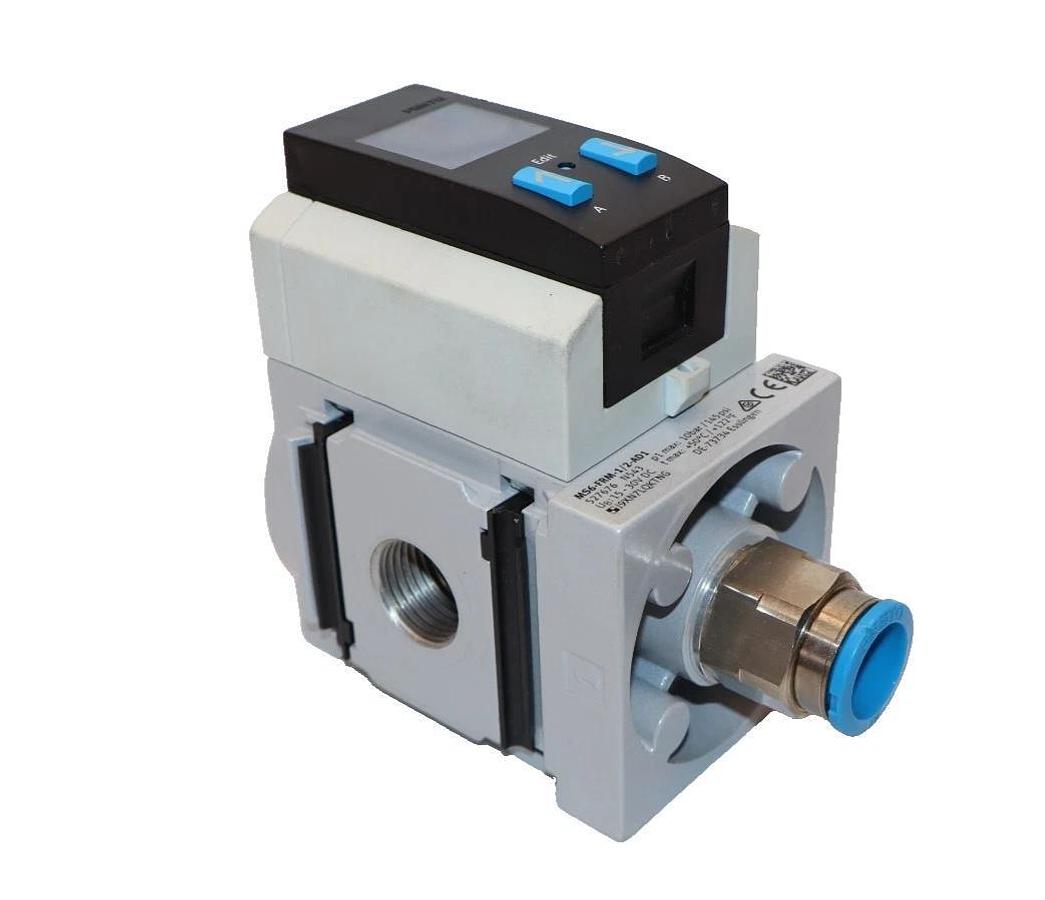

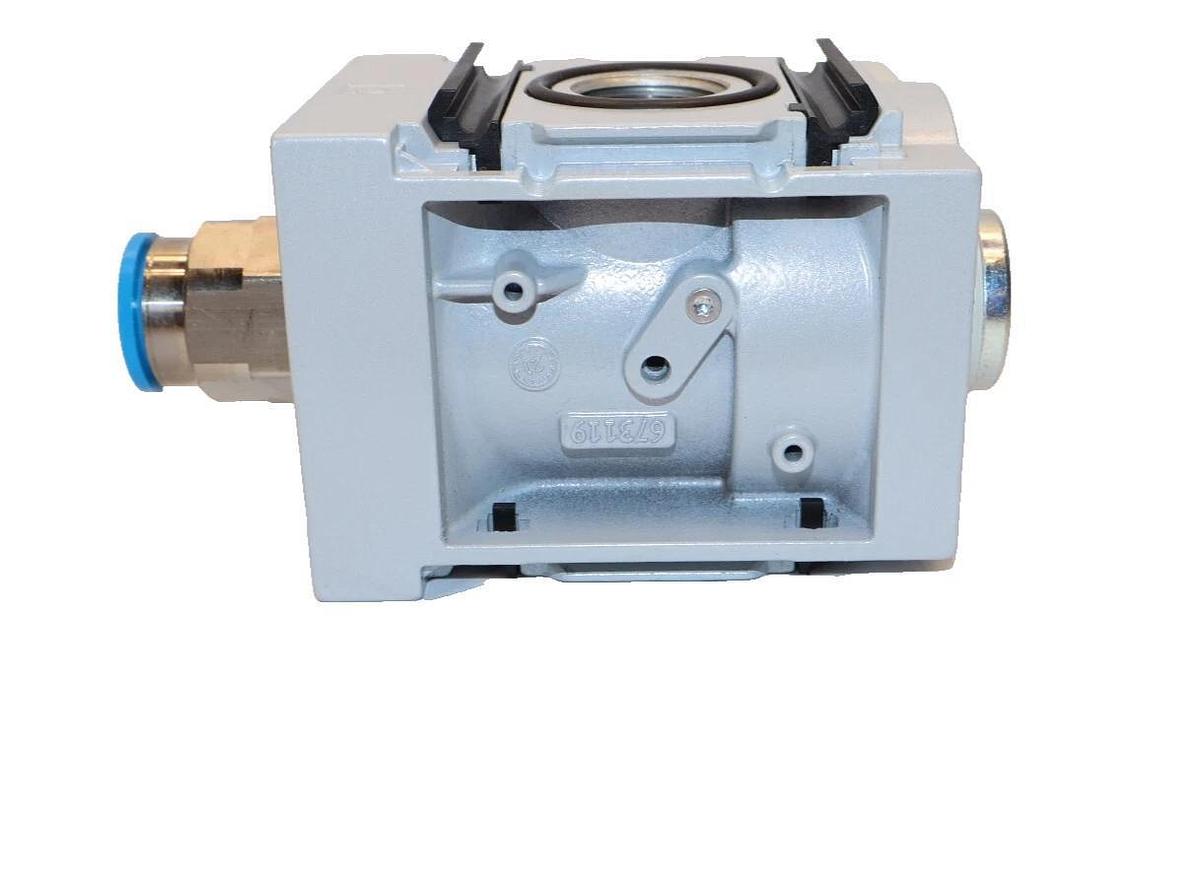

Festo MS6-FRM-1/2-AD1 Branching Module with Pressure Sensor
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-FRM-1/2-AD1
Description
The Festo MS6-FRM-1/2-AD1 is a pneumatic branching module with an integrated electronic pressure sensor. It distributes compressed air within an MS6 service-unit assembly while providing local pressure indication and a PNP switching signal for compatible control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Sensors & Switches |
| Part Number | MS6-FRM-1/2-AD1 |
| Subcategory | Pressure Sensor/Transducer |
| Product Type | Pneumatic branching module with pressure sensor |
| Series | MS |
| Size | 6 |
| Grid Dimension | 62 mm |
| Main Pneumatic Connections | G1/2 female thread |
| Sensor Option | AD1 |
| Pressure Sensor Series | SDE1 |
| Display | LCD |
| Switching Output | 1 PNP output |
| Sensor Electrical Connection | M8 plug, 3-pin |
| Maximum Operating Pressure | 10 bar (145 psi), supplied assembly rating |
| Maximum Temperature | 50 °C, supplied assembly rating |
| Weight | 1.54 lbs |
Information About MS6-FRM-1/2-AD1
The MS6-FRM-1/2-AD1 is part of the Festo MS series and uses the size 6 modular format. Its G1/2 female-thread connections support integration into compatible pneumatic air preparation installations. The AD1 option includes an SDE1 pressure sensor with an LCD display and one PNP switching output. A three-pin M8 connector provides the sensor’s electrical connection for pressure monitoring.
Key Features:
- Pneumatic Distribution: Provides a branching point for supplying additional compressed-air circuits.
- Integrated Pressure Sensor: Includes an SDE1 electronic sensor for monitoring system pressure.

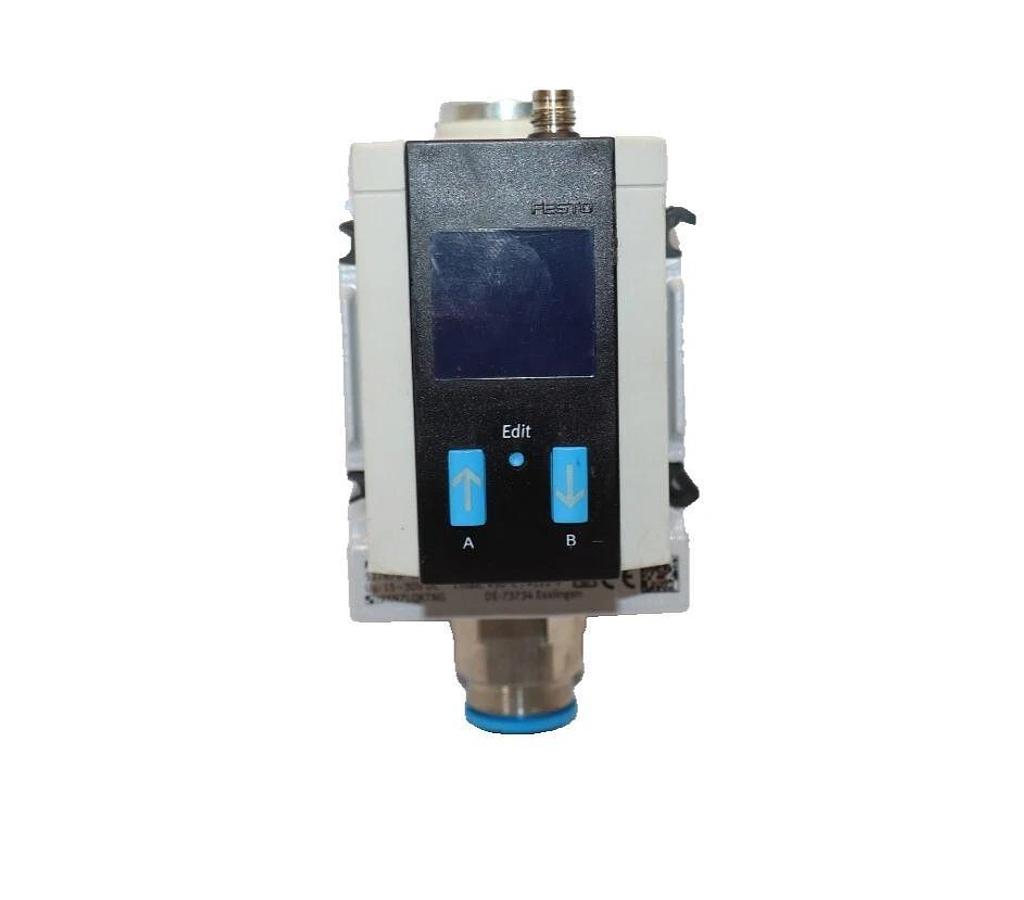

- Local Display: An LCD provides pressure indication directly at the module.
- PNP Switching Output: Supplies one discrete pressure-dependent signal to a compatible controller input.
- M8 Sensor Connection: Uses a three-pin plug connection for sensor wiring.
- Threaded Pneumatic Ports: Provides G1/2 female-thread main connections.
- Modular Compatibility: Integrates with compatible Festo MS6 air preparation components.
- Pressure Capacity: Supports the supplied assembly’s stated maximum operating pressure of 10 bar.
The MS6-FRM-1/2-AD1 delivers the reliability and precision required for compressed-air distribution and pressure monitoring in automated equipment.
