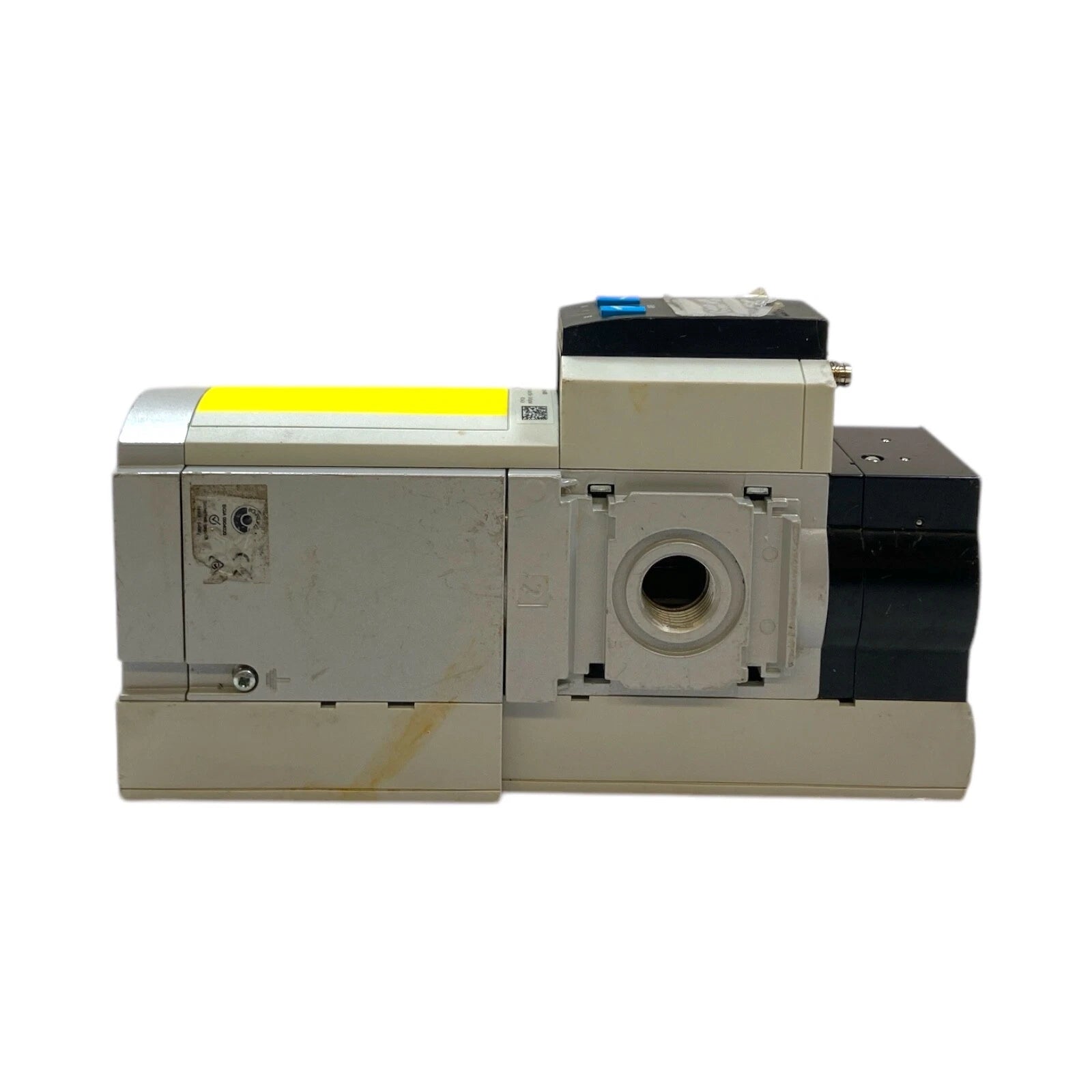

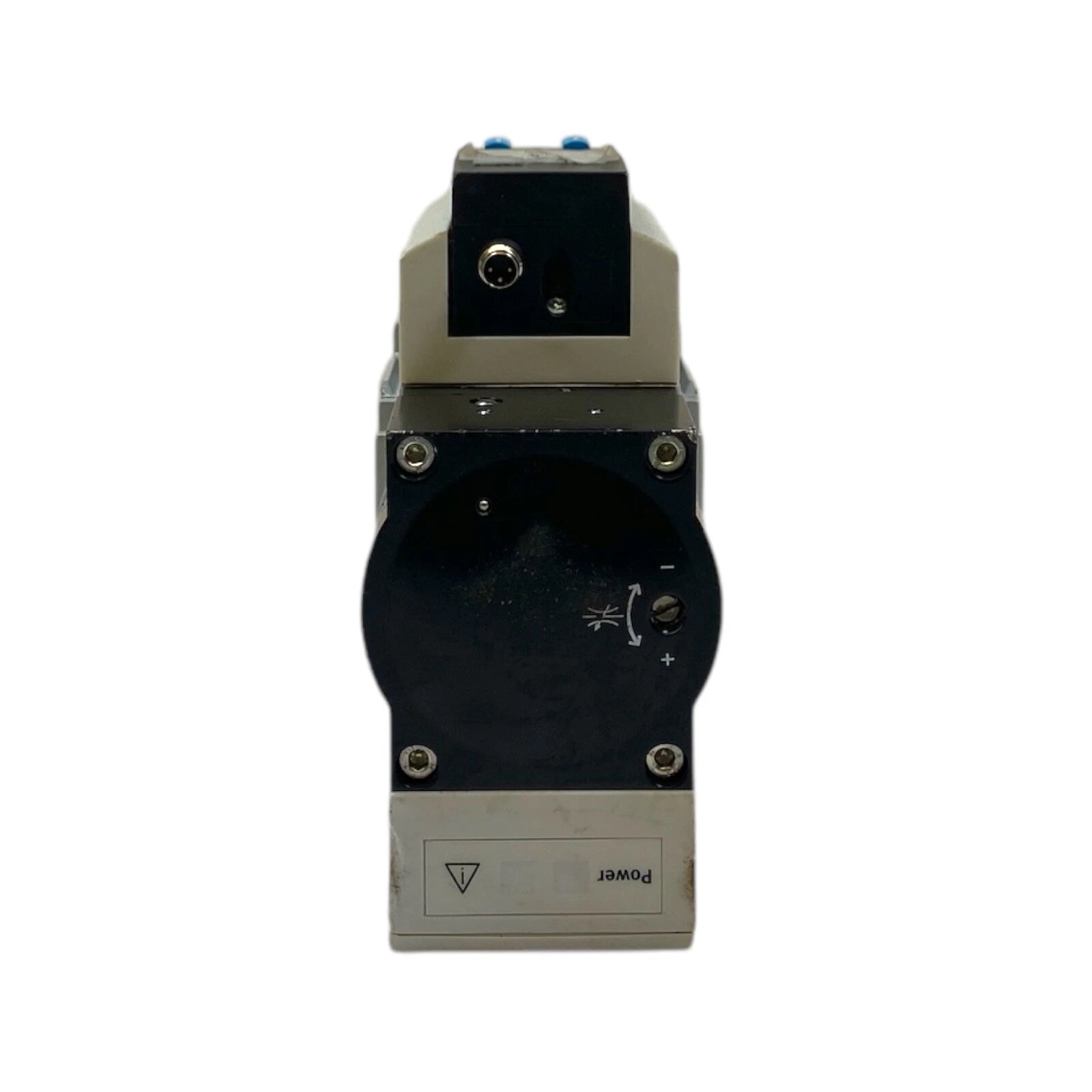

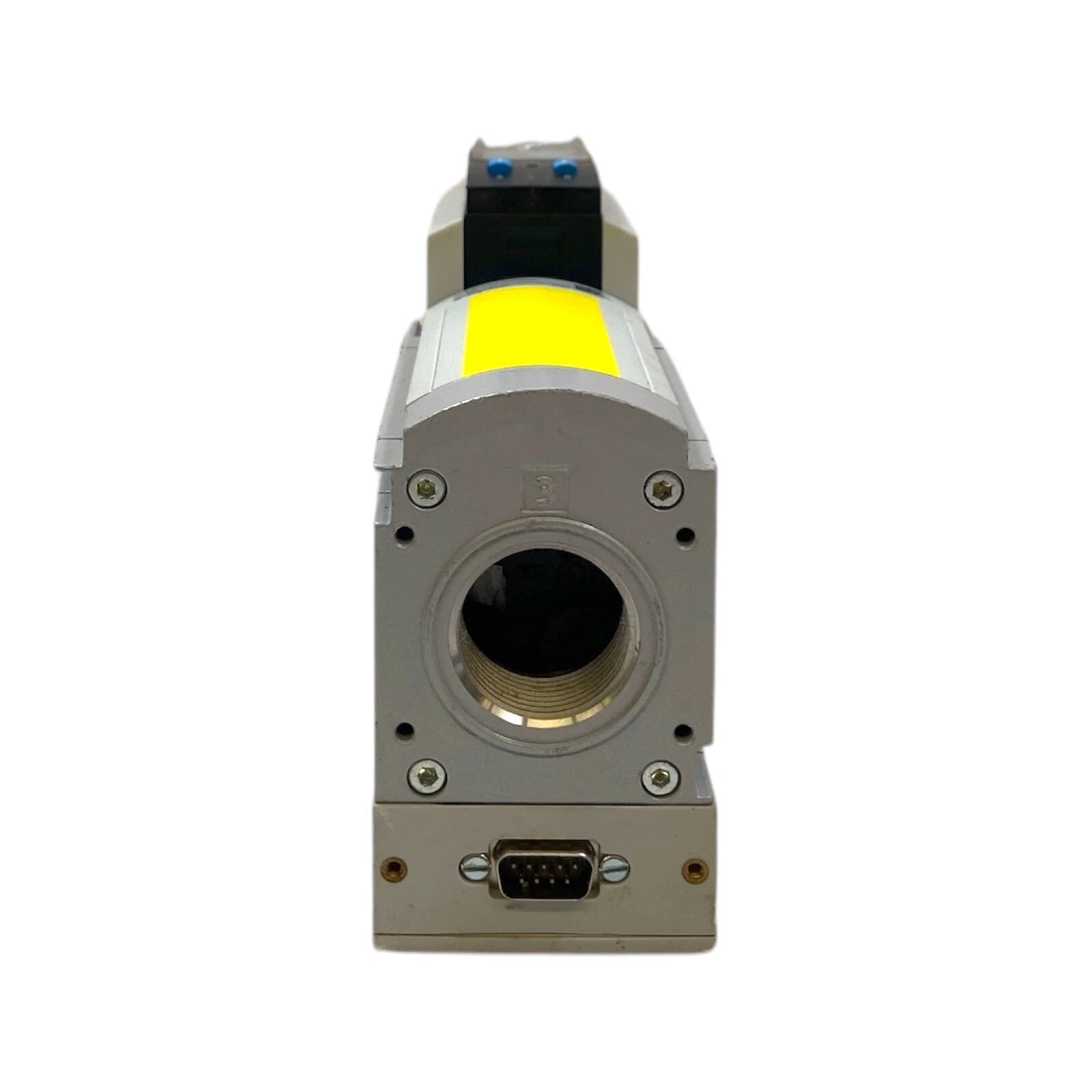

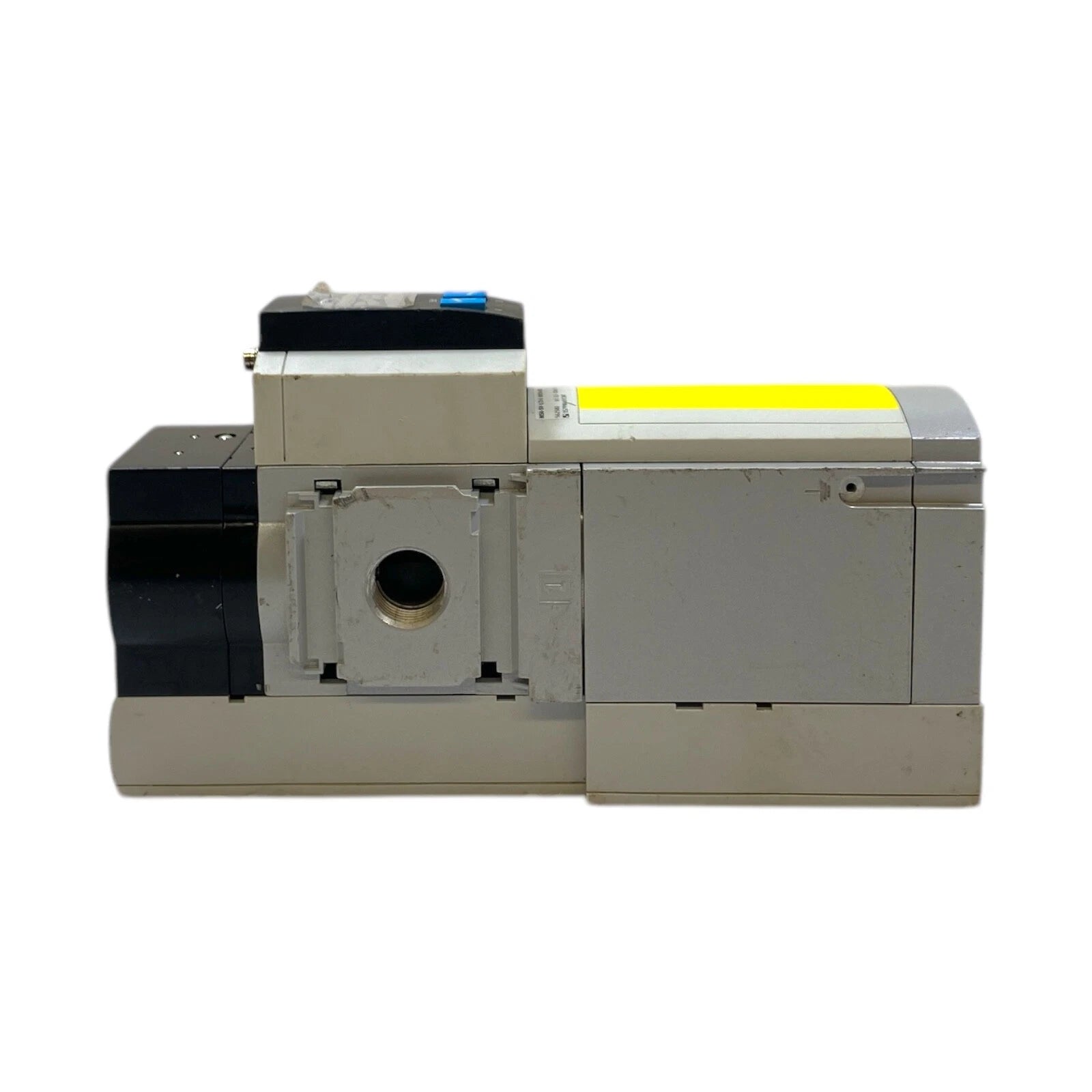

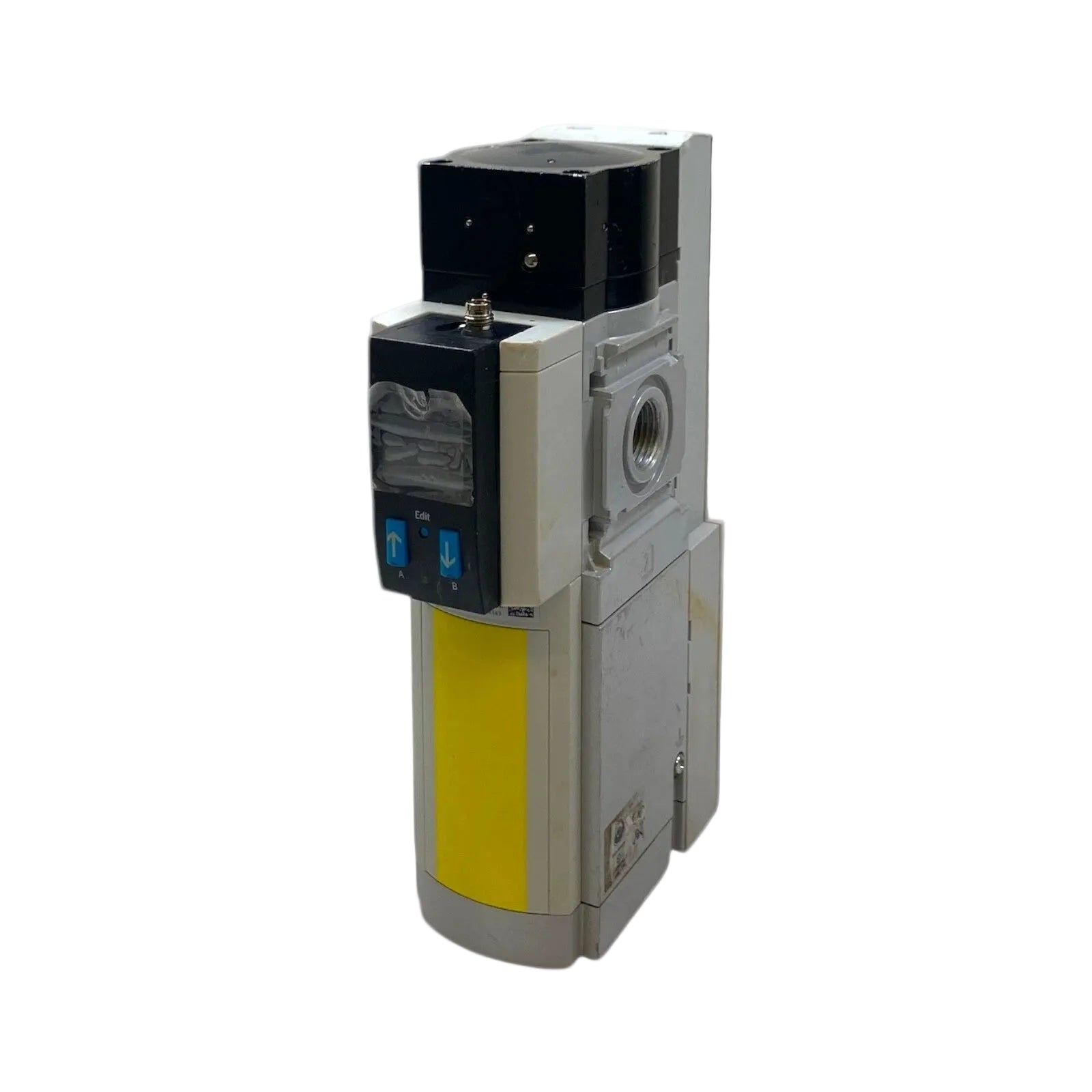

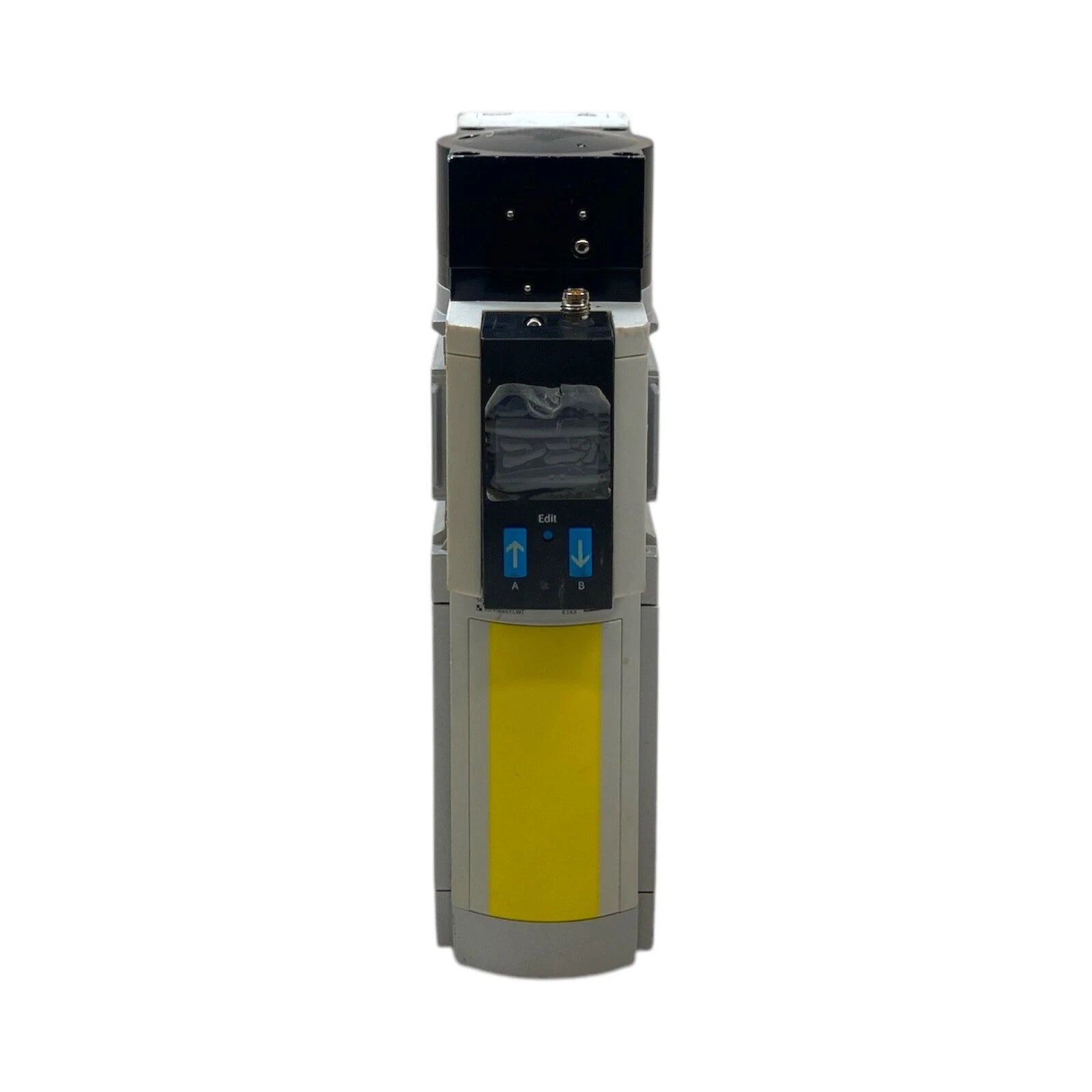

MS6-SV-1/2-E-10V24-AD1 | Festo MS6 3/2 Soft Start Quick Exhaust Valve 24VDC IP65
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-SV-1/2-E-10V24-AD1
Description
The Festo MS6-SV-1/2-E-10V24-AD1 is a 3/2-way pilot-operated soft start and quick exhaust valve designed for controlled pressurization and safe venting in pneumatic systems. Operating at 24 VDC, it provides a nominal flow rate of 4300 l/min and supports working pressures from 3.5 to 10 bar. Built for integration within the MS6 Series platform, it ensures reliable air management in automated machinery and safety-related applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | MS6-SV-1/2-E-10V24-AD1 |
| Subcategory | Soft Start / Quick Exhaust Valves |
| Series | MS6 Series |
| Configuration | 3/2-Way, Closed, Monostable |
| Type | Pilot Actuated |
| Valve Design | Piston Seat |
| Media Type | Compressed Air (ISO 8573-1:2010 [7:4:4]) |
| Nominal Operating Voltage | 24 VDC |
| Coil Voltage | 24 VDC |
| Duty Cycle | 100% |
| Flow Rate | 4300 l/min |
| Exhaust Flow Rate | 9000 l/min |
| Operating Pressure | 3.5 to 10 bar |
| Degree of Protection | IP65 (with plug socket) |
| Electrical Connection | 9-pin Sub-D |
| Pneumatic Connection Port 1 | G1/2 |
| Pneumatic Connection Port 2 | G1/2 |
| Pneumatic Connection Port 3 | G1 |
| Grid Dimension | 62 mm |
| Ambient Temperature | 0 °C to 50 °C |
| Media Temperature | 0 °C to 50 °C |
| Storage Temperature | 0 °C to 50 °C |
| Corrosion Resistance Class | CRC 2 – Moderate Corrosion Stress |
| Material Housing | Die-cast Aluminium |
| Material Piston Rod | High-alloy Stainless Steel |
| Material Seals | NBR |
| Switching Time On | 130 ms |
| Switching Time Off | 40 ms |
| Max. Switching Frequency | 0.5 Hz |
| Safety Integrity Level | SIL 3 |
| Performance Level | PL e (Category 4) |
| Weight | 2.2 kg |
Information About MS6-SV-1/2-E-10V24-AD1
The MS6-SV-1/2-E-10V24-AD1 is a modular compressed air control valve from the Festo MS6 Series, engineered for safe start-up and exhaust functions in industrial automation systems. It features a piston seat design with soft sealing and magnetic piston position detection, supporting safety functions up to SIL 3 and Performance Level e in accordance with DIN EN ISO 13849-1. The die-cast aluminium housing and high-alloy stainless steel piston rod provide durability under moderate corrosion stress (CRC 2), while the IP65 protection rating ensures reliable operation in industrial environments. Designed for compressed air to ISO 8573-1:2010 [7:4:4], it integrates into 62 mm grid systems with G1/2 and G1 threaded pneumatic ports and a 9-pin Sub-D electrical connection.
Key Features:
- Soft Start and Quick Exhaust: Enables gradual pressurization and rapid venting to prevent unexpected start-up.
- High Flow Capacity: Nominal flow rate of 4300 l/min with exhaust flow up to 9000 l/min for efficient air discharge.
- 3/2-Way Monostable Valve Function: Closed configuration with mechanical spring reset for secure operation.
- Advanced Safety Ratings: Certified up to SIL 3 and Performance Level e for safety-critical pneumatic circuits.
- IP65 Protection Class: Dust-tight and protected against water jets when used with plug socket.
- Robust Construction: Die-cast aluminium housing with stainless steel piston rod for mechanical strength.
- Magnetic Piston Position Detection: Provides reliable status monitoring and signal feedback via LED and floating contact.
- 24 VDC Continuous Duty: 100% duty cycle with ±10% permissible voltage fluctuation tolerance.
The MS6-SV-1/2-E-10V24-AD1 delivers the reliability and precision required for safety-rated pneumatic start-up and exhaust control in automated industrial systems.
