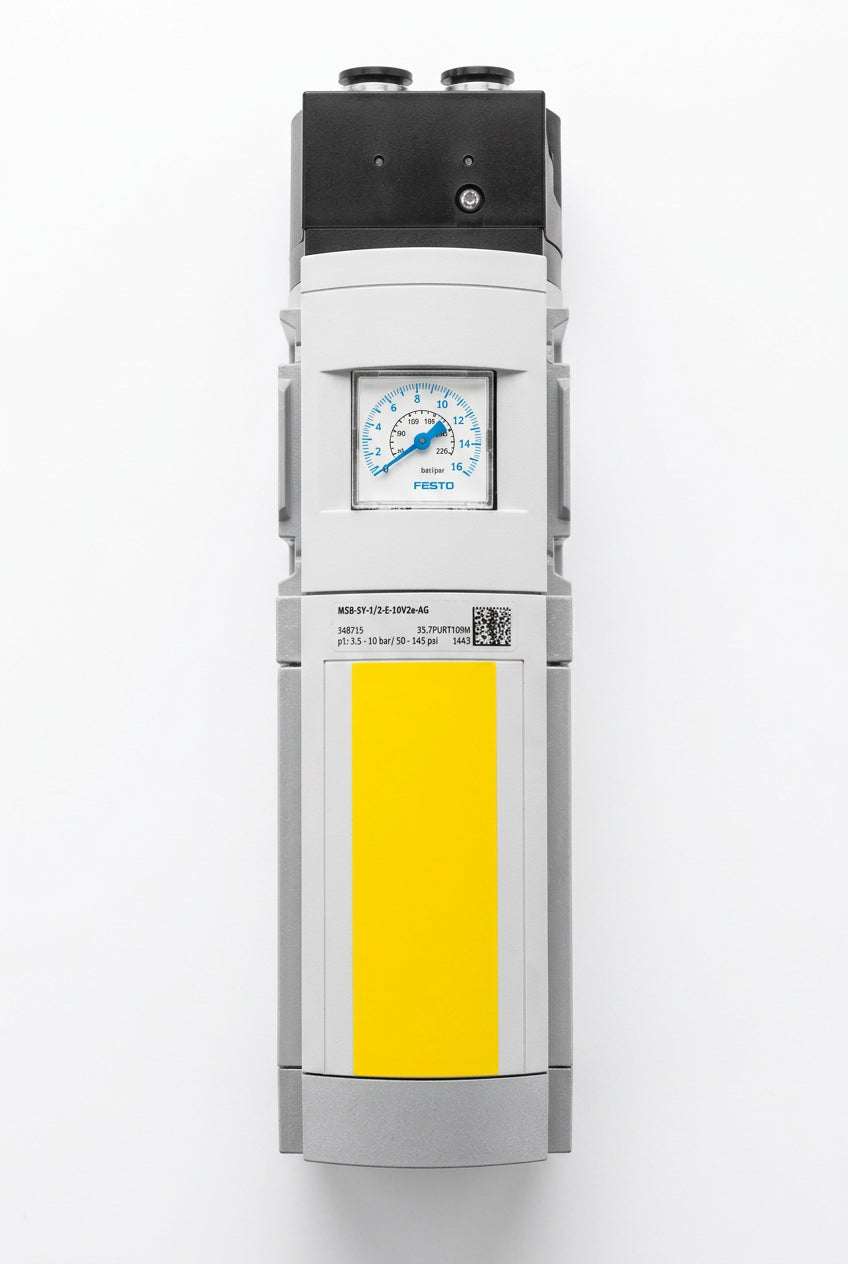

Festo MS6-SV-1/2-E-10V24-AG Soft Start Quick Exhaust Valve 24VDC G1/2
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-SV-1/2-E-10V24-AG
Description
The Festo MS6-SV-1/2-E-10V24-AG is a size 6 soft start and quick exhaust valve designed to ensure safe pressurization and rapid venting of pneumatic control systems. Operating on a 24 VDC power supply with a 3.5 to 10 bar operating pressure range, this monostable 3/2-way normally closed valve delivers a high nominal flow rate of 4300 l/min. Built with a mechanical spring reset and an IP65 protection rating, it prevents sudden actuator movements during power-up and venting routines in high-performance safety circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Valves |
| Part Number | MS6-SV-1/2-E-10V24-AG |
| Subcategory | Exhaust Valve |
| Series | MS Series (Size 6) |
| Valve Function | Soft Start / Quick Exhaust Valve |
| Valve Design | 3/2-Way Monostable Normally Closed |
| Reset Method | Mechanical Spring Reset |
| Operating Pressure | 3.5 to 10 bar |
| Standard Nominal Flow | 4300 l/min |
| Supply Voltage | 24 VDC |
| Port Connections | G1/2 (In/Out), G1 (Exhaust) |
| Electrical Interface | 9-Pin Sub-D Connector |
| Enclosure Rating | IP65 |
| Weight | 2.00 kg |
Information About MS6-SV-1/2-E-10V24-AG
The MS6-SV-1/2-E-10V24-AG belongs to Festo's MS Series of modular compressed air preparation units engineered for high-integrity safety and pneumatic conditioning setups. Its integrated soft-start function gradually builds system pressure until a preset threshold is reached before opening to full capacity, while its quick-exhaust function dumps downstream pressure rapidly upon power interruption or emergency stop triggers. Compatibility includes G1/2 and G1 port sizes, 9-pin Sub-D electrical connectors, and Festo MS6 service unit combinations. It is widely applied in automated assembly lines, packaging machinery, safety cell guarding, and industrial press systems.
Key Features:
- Functionality: Dual soft start and quick exhaust safety valve
- Valve Type: 3/2-way monostable normally closed (NC) valve
- Reset Mechanism: Mechanical spring reset for fail-safe operation
- Nominal Flow Rate: High-capacity 4300 l/min nominal flow
- Operating Pressure: 3.5 to 10 bar working pressure range
- Electrical Connection: 24 VDC supply voltage via a 9-pin Sub-D connector
- Port Configurations: G1/2 main supply and G1 exhaust port sizes
- Environmental Rating: Rugged IP65 dust-tight and water-jet resistant housing
- Construction Weight: Substantial 2.00 kg metal body assembly
The MS6-SV-1/2-E-10V24-AG delivers the reliability and precision required for safe pneumatic system pressurization and rapid pressure relief.
