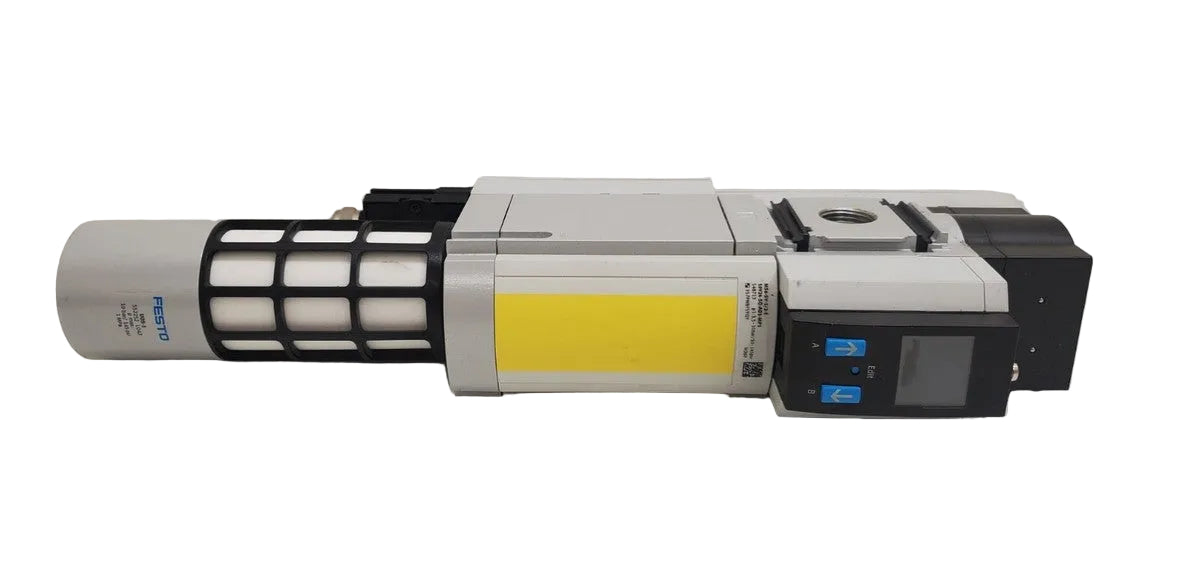

Festo MS6-SV-1/2-E-10V24-SO-AD1-MP1 Soft-Start Quick-Exhaust Valve
- Regular price
- $1,685.00
- Sale price
- $1,685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-SV-1/2-E-10V24-SO-AD1-MP1
Description
The Festo MS6-SV-1/2-E-10V24-SO-AD1-MP1 is an electrically actuated soft-start and quick-exhaust valve designed to control pressure buildup and safely exhaust compressed air in industrial pneumatic systems. It provides a 3/2-way valve function, operates on a 24 V DC supply, and supports safety-related pneumatic shutdown applications. The unit includes a pressure sensor with display and G1/2 pneumatic connections.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Pneumatics |
|
Part Number |
MS6-SV-1/2-E-10V24-SO-AD1-MP1 |
|
Subcategory |
Pneumatic Valves |
|
Series |
MS6-SV |
|
Product Type |
Soft-start / quick-exhaust valve |
|
Valve Function |
3/2-way, closed, single solenoid |
|
Actuation Type |
Electric |
|
Supply Voltage |
24 V DC |
|
Pneumatic Exhaust Connection 3 |
G1 |
|
Operating Pressure |
3.5–10 bar |
|
Nominal Flow Rate (1 → 2) |
4,300 l/min |
|
Exhaust Flow Rate (2 → 3) |
9,000 l/min |
|
Pressure Monitoring |
Pressure sensor with display |
|
Housing Material |
Die-cast aluminum |
|
Seal Material |
NBR |
|
Degree of Protection |
IP65 with plug socket |
|
Storage Temperature |
−10°C to +50°C |
|
Width |
62 mm |
|
Corrosion Resistance Class |
CRC 2 |
|
Weight |
4.85 lb |
Information About MS6-SV-1/2-E-10V24-SO-AD1-MP1
The MS6-SV-1/2-E-10V24-SO-AD1-MP1 belongs to Festo’s MS6 service-unit series and is designed to gradually pressurize downstream equipment during startup. When the appropriate shutdown signal is triggered, the valve can isolate the air supply and exhaust downstream pressure. Its adjustable pressure buildup and switching thresholds allow configuration for the connected system. The die-cast aluminum housing, NBR seals, and IP65 protection rating with the specified plug socket support industrial installation.
Key Features:
-
Soft-Start Function: Builds downstream pressure gradually during system startup.
-
Quick Exhaust: Releases downstream compressed air during the appropriate shutdown sequence.
-
Electrical Actuation: Uses a 24 V DC supply for valve control.
-
3/2-Way Valve: Provides a closed 3/2-way valve function with a single solenoid.
-
Adjustable Startup Pressure: Allows adjustment of pressure buildup time and switching pressure.
-
Pressure Monitoring: Includes a pressure sensor with display for monitoring output pressure.
-
High Flow Capacity: Rated nominal flow is 4,300 l/min in the main flow direction.
-
Industrial Protection: Provides IP65 protection with the specified plug socket.
The MS6-SV-1/2-E-10V24-SO-AD1-MP1 delivers the reliability and precision required for controlled startup and pneumatic pressure exhaust in industrial automation systems.
