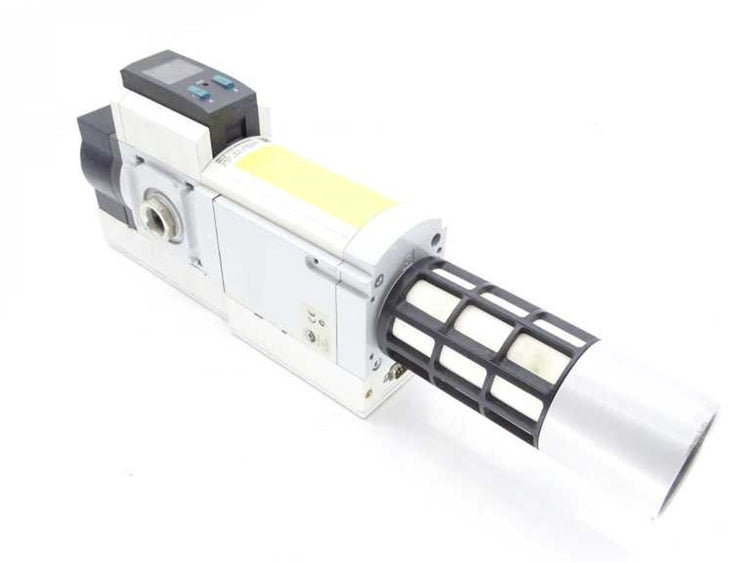

Festo MS6-SV-1/2-E-10V24-SO-AD1-MP3 Soft-Start and Quick-Exhaust Valve
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-SV-1/2-E-10V24-SO-AD1-MP3
Description
The Festo MS6-SV-1/2-E-10V24-SO-AD1-MP3 is an electro-pneumatic soft-start and quick-exhaust valve for controlled pressurization and venting of pneumatic systems. It combines 24 V DC operation, G1/2 connections, and a displayed pressure sensor for monitoring downstream pressure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Valves |
| Part Number | MS6-SV-1/2-E-10V24-SO-AD1-MP3 |
| Subcategory | Control Valve |
| Manufacturer Base Part Number | 548713 |
| Series / Size | MS series / size 6 |
| Valve Function | Soft-start and quick exhaust |
| Actuation | Electro-pneumatic |
| Supply Voltage | 24 V DC |
| Operating Pressure | 3.5–10 bar |
| Pneumatic Connections | G1/2 |
| Control Architecture | Two-channel with internal monitoring |
| Safety Capability | Category 4 / PL e achievable under specified integration conditions |
| Silencer Option | SO: open silencer |
| Pressure Sensor Option | AD1: displayed pressure sensor, PNP output |
| Pressure Sensor Connection | M8 plug, 3-pin |
| Valve Electrical Interface | Sub-D, 9-pin, with MP3 connector |
| Enable Signals | Static; EN1 = 0 V, EN2 = 24 V |
| Ambient Temperature | −10–50 °C |
| Weight | 6.66 lbs |
Information About MS6-SV-1/2-E-10V24-SO-AD1-MP3
The MS6-SV-1/2-E-10V24-SO-AD1-MP3 is part of the Festo MS6 air preparation series. Its E-version design uses two channels with internal monitoring for safety-related pneumatic functions. The SO option identifies an open silencer, while AD1 specifies a pressure sensor with a display and an M8 three-pin PNP connection. The MP3 connector configuration uses static enable signals with different voltage levels and supports short-circuit detection in a correctly implemented control circuit.
Key Features:
- Soft-Start Function: Builds downstream pressure progressively during pneumatic system startup.
- Quick Exhaust: Vents downstream compressed air when the valve is commanded to exhaust.
- Monitored Design: Uses two control channels with internal monitoring for safety-related operation.
- Pressure Display: Includes the AD1 pressure sensor option for local pressure indication.
- PNP Sensor Connection: Provides an M8 three-pin connection for the pressure sensor.
- Open Silencer: Includes the SO silencer option for the exhaust path.
- MP3 Enable Interface: Uses static enable signals EN1 = 0 V and EN2 = 24 V.
- Pneumatic Connections: Uses G1/2 threaded connections for integration into compatible air systems.
The MS6-SV-1/2-E-10V24-SO-AD1-MP3 delivers the reliability and precision required for controlled pneumatic startup and monitored exhaust functions.
