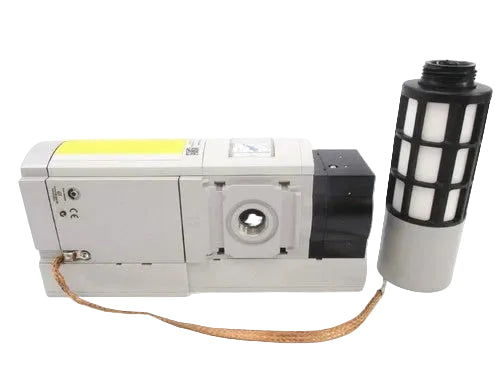

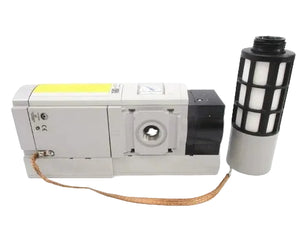

Festo MS6-SV-1/2-E-10V24-SO-AG 548717 Soft-Start Safety Exhaust Valve
- Regular price
- $1,312.00
- Sale price
- $1,312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS6-SV-1/2-E-10V24-SO-AG
Description
The Festo MS6-SV-1/2-E-10V24-SO-AG is an electrically actuated soft-start and safety exhaust valve designed to control pressurization and exhaust in industrial pneumatic systems. It features a 3/2-way normally closed valve function, a 24 V DC solenoid, and a nominal flow rate of 4,300 l/min. The unit includes a pressure gauge, an open silencer configuration, and G1/2 pneumatic connections.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Pneumatics |
|
Part Number |
MS6-SV-1/2-E-10V24-SO-AG |
|
Subcategory |
Pneumatic Valves |
|
Manufacturer Part Number |
548717 |
|
Series |
MS6-SV |
|
Product Type |
Soft-start / safety exhaust valve |
|
Valve Function |
3/2-way, normally closed, monostable |
|
Actuation Type |
Electrical solenoid |
|
Reset Method |
Mechanical spring |
|
Supply Voltage |
24 V DC |
|
Port Size |
G1/2 |
|
Operating Pressure |
3.5–10 bar (51–145 psi) |
|
Nominal Flow Rate |
4,300 l/min |
|
Exhaust Flow Rate |
9,000 l/min |
|
Operating Medium |
Compressed air |
|
Housing Material |
Die-cast aluminum |
|
Protection Rating |
IP65 |
|
Ambient Temperature |
−10°C to +50°C |
|
Grid Dimension |
62 mm |
|
Safety Rating |
SIL 3 stated for safety exhaust and prevention of unexpected startup; verify system-level requirements |
|
Approval |
CE, as listed |
|
Weight |
5.00 lb |
Information About MS6-SV-1/2-E-10V24-SO-AG
The MS6-SV-1/2-E-10V24-SO-AG belongs to Festo’s MS6-SV series of pneumatic safety valves. It gradually increases downstream pressure during startup and provides a safety exhaust function to help prevent unexpected machine startup after a shutdown. The valve is rated for operating pressures from 3.5 to 10 bar and ambient temperatures from −10°C to +50°C. Its die-cast aluminum housing and IP65 protection rating support use in industrial pneumatic installations.
Key Features:
-
Soft-Start Function: Builds downstream pressure gradually during startup.
-
Safety Exhaust: Exhausts downstream compressed air as part of the safety shutdown function.
-
Electrical Actuation: Uses a 24 V DC solenoid for valve control.
-
3/2-Way Valve: Features a normally closed valve configuration with mechanical spring reset.
-
Flow Capacity: Provides a nominal flow rate of 4,300 l/min and exhaust flow of 9,000 l/min.
-
Pressure Gauge: Supports visual monitoring of pneumatic system pressure.
-
Open Silencer Configuration: Includes the specified open silencer arrangement.
-
Industrial Protection: Features an IP65-rated enclosure configuration.
The MS6-SV-1/2-E-10V24-SO-AG delivers the reliability and precision required for controlled pneumatic startup and safety exhaust in industrial automation systems.
