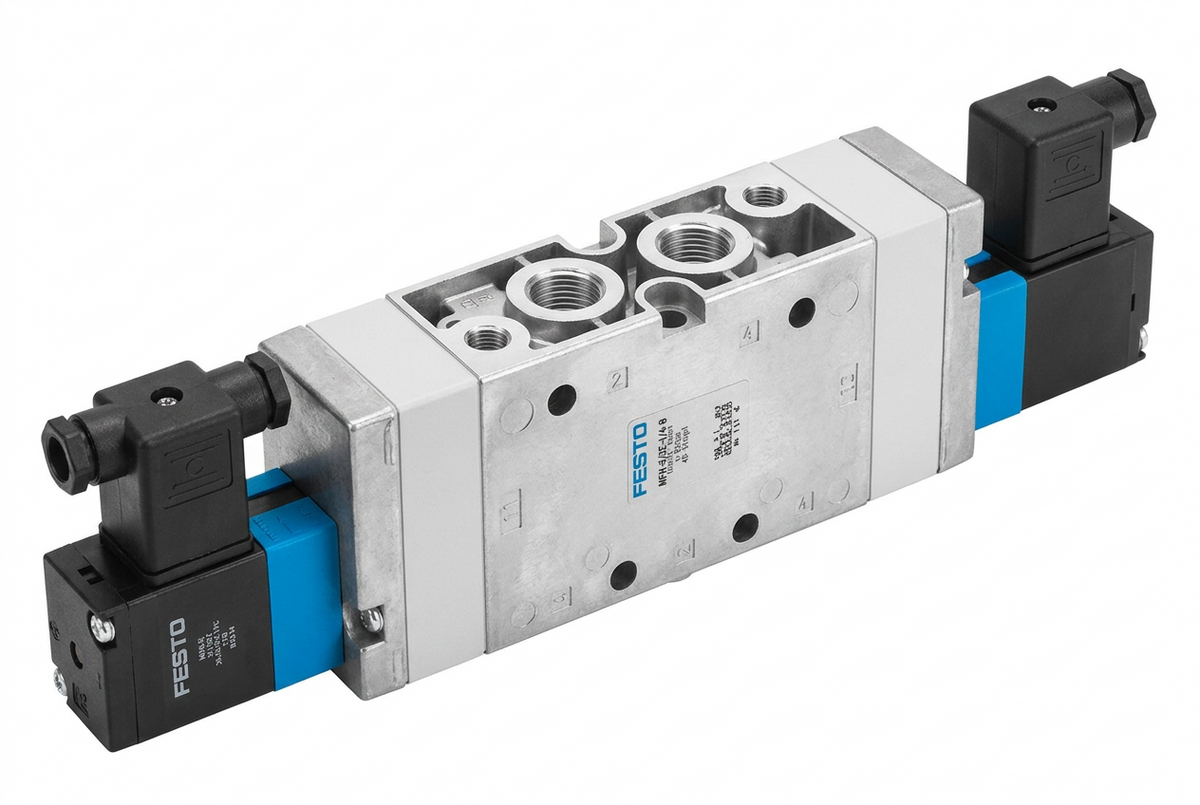

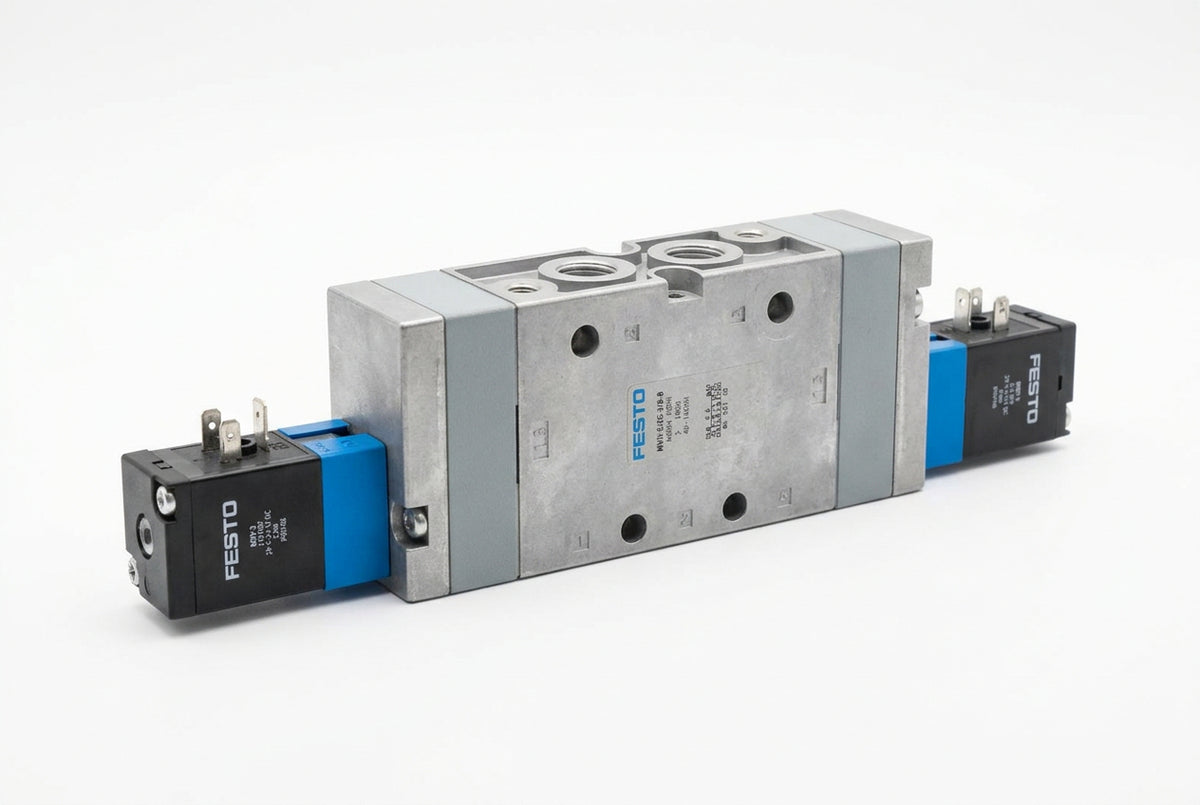

Festo MVH-5/3G-3/8-B 5/3-Way Closed-Center Pneumatic Solenoid Valve
- Regular price
- $727.00
- Sale price
- $727.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MVH-5/3G-3/8-B
Description
The Festo MVH-5/3G-3/8-B is an electrically actuated pneumatic directional control valve designed to regulate compressed-air flow in industrial automation systems. Its 5/3-way, closed-center configuration provides three switching positions, with all main ports closed in the center position, helping hold a pneumatic actuator in position when the valve is centered.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | MVH-5/3G-3/8-B |
| Subcategory | Pneumatic Solenoid Valves |
| Manufacturer Part Number | 14944 |
| Product Series | MVH |
| Valve Type | Electrically actuated directional control valve |
| Valve Function | 5/3-way, closed center |
| Actuation Type | Electrical, pilot-operated |
| Nominal Size | 12 mm |
| Standard Nominal Flow Rate | 2,200 L/min |
| Operating Pressure | 3–10 bar |
| Pneumatic Connections | G3/8, ports 1–5 |
| Pilot Air Supply | Internal |
| Coil Rating | 24 V DC, 2.5 W |
| Permissible Voltage Variation | ±10% |
| Maximum Switching Frequency | 3 Hz |
| Switching Time — On | 27 ms |
| Switching Time — Off | 89 ms |
| Ambient Temperature | −5 °C to +50 °C |
| Housing Material | Die-cast aluminum |
| Seal Material | NBR |
| Mounting | PR rail or through-hole mounting |
| Weight | 1.72 lb |
Information About MVH-5/3G-3/8-B
The MVH-5/3G-3/8-B belongs to Festo’s MVH series of pilot-operated pneumatic solenoid valves and has manufacturer part number 14944. It features G3/8 threaded connections for all five main pneumatic ports and an internal pilot air supply. The valve uses a piston-spool design with mechanical spring return and a non-detenting manual override for operation during setup or maintenance. Its die-cast aluminum housing and NBR seals are designed for industrial compressed-air applications.
Key Features:
-
5/3-Way Closed-Center Function: Provides three positions, with all main ports closed in the center position.
-
Electrical Actuation: Enables automated directional control through an electrical signal.
-
Pilot-Operated Design: Uses internal pilot air to actuate the main valve mechanism.
-
G3/8 Pneumatic Connections: Supports connection to compatible industrial compressed-air circuits.
-
High Nominal Flow Rate: Provides a standard nominal flow rate of 2,200 L/min.
-
Mechanical Spring Return: Returns the valve spool according to its specified switching arrangement.
-
Manual Override: Allows non-locking manual actuation for setup and troubleshooting.
-
Durable Construction: Features a die-cast aluminum housing and NBR seals.
The MVH-5/3G-3/8-B provides dependable pneumatic directional control for industrial machinery, cylinder actuation, production automation, and material-handling systems.
