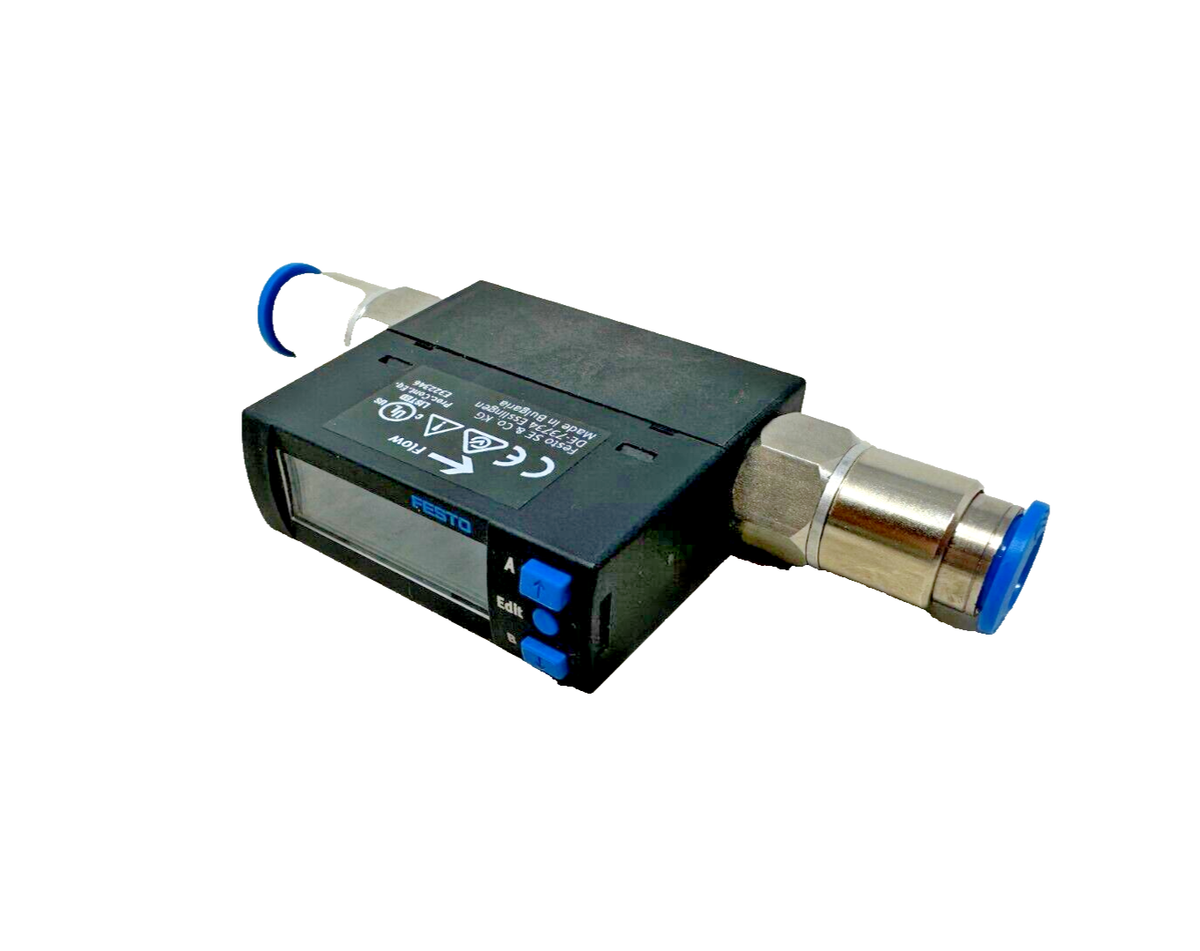

Festo SFAH-200U-G14FS-PNLK-PNVBA-M8 Flow Sensor 4-200 L/MIN IO-Link
- Regular price
- $532.00
- Sale price
- $532.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SFAH-200U-G14FS-PNLK-PNVBA-M8
Description
The Festo SFAH-200U-G14FS-PNLK-PNVBA-M8 flow sensor is an inline digital transmitter designed for high-precision monitoring of compressed air and non-corrosive gases. Engineered for unidirectional flow measurement from 4 to 200 l/min, it handles operating pressures from -0.9 to 10 bar with high dynamic response. Featuring selectable PNP/NPN switching outputs, switchable analog output signals (4-20 mA, 0-10 V, 1-5 V), and IO-Link protocol integration, this compact sensor delivers accurate pneumatic consumption tracking for automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Sensors & Switches |
| Part Number | SFAH-200U-G14FS-PNLK-PNVBA-M8 |
| Subcategory | Flow Transmitter |
| Series | SFAH Series |
| Flow Direction | Unidirectional |
| Flow Rate Range | 4 to 200 l/min |
| Operating Pressure | -0.9 to 10 bar |
| Switching Outputs | 2x PNP / NPN Switchable (NO/NC) |
| Analog Signals | 4-20 mA / 0-10 V / 1-5 V Switchable |
| Communication | IO-Link |
| Pneumatic Connection | G1/4 Female Thread |
| Electrical Connection | M8x1 A-Coded Plug, 4-Pin |
| Supply Voltage | 22 to 26 VDC |
| Enclosure Rating | IP40 |
| Weight | 0.09 kg |
Information About SFAH-200U-G14FS-PNLK-PNVBA-M8
The SFAH-200U-G14FS-PNLK-PNVBA-M8 belongs to Festo's SFAH Series of versatile thermal flow sensors engineered for energy monitoring and leak detection in pneumatic installations. Its high turn-down ratio and bright OLED display ensure clear parameter setup and live flow status visualization directly on the unit. Operating on a 22 to 26 VDC power supply, compatibility covers standard G1/4 female pneumatic fittings, 4-pin M8x1 A-coded cable connectors, and IO-Link master modules for industry 4.0 data exchange. It is widely deployed in pneumatic line monitoring, leakage detection, inert gas shield verification, and automated assembly equipment.
Key Features:
- Measurement Range: 4 to 200 l/min unidirectional gas flow rate
- Operating Pressure: -0.9 to 10 bar operating pressure range
- Pneumatic Interface: G1/4 female thread connection
- Output Configuration: Dual switchable PNP/NPN (NO/NC) digital outputs
- Analog Outputs: Selectable 4-20 mA, 0-10 V, and 1-5 V analog signals
- Digital Interface: Integrated IO-Link communication protocol
- Electrical Connection: 4-pin M8x1 A-coded male plug
- Power Requirements: 22 to 26 VDC operating voltage
- Enclosure Protection: IP40 rated lightweight 0.09 kg housing
The SFAH-200U-G14FS-PNLK-PNVBA-M8 delivers the reliability and precision required for automated compressed air monitoring and digital pneumatic telemetry.
