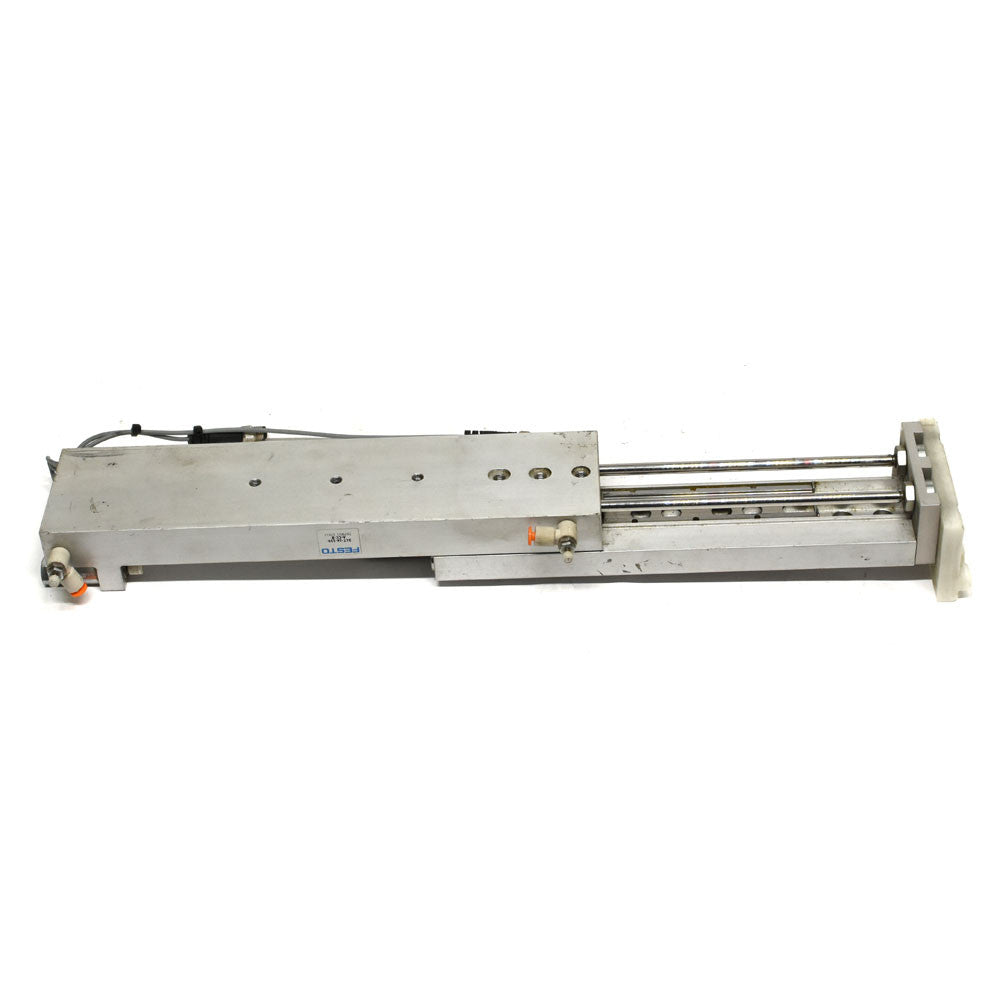

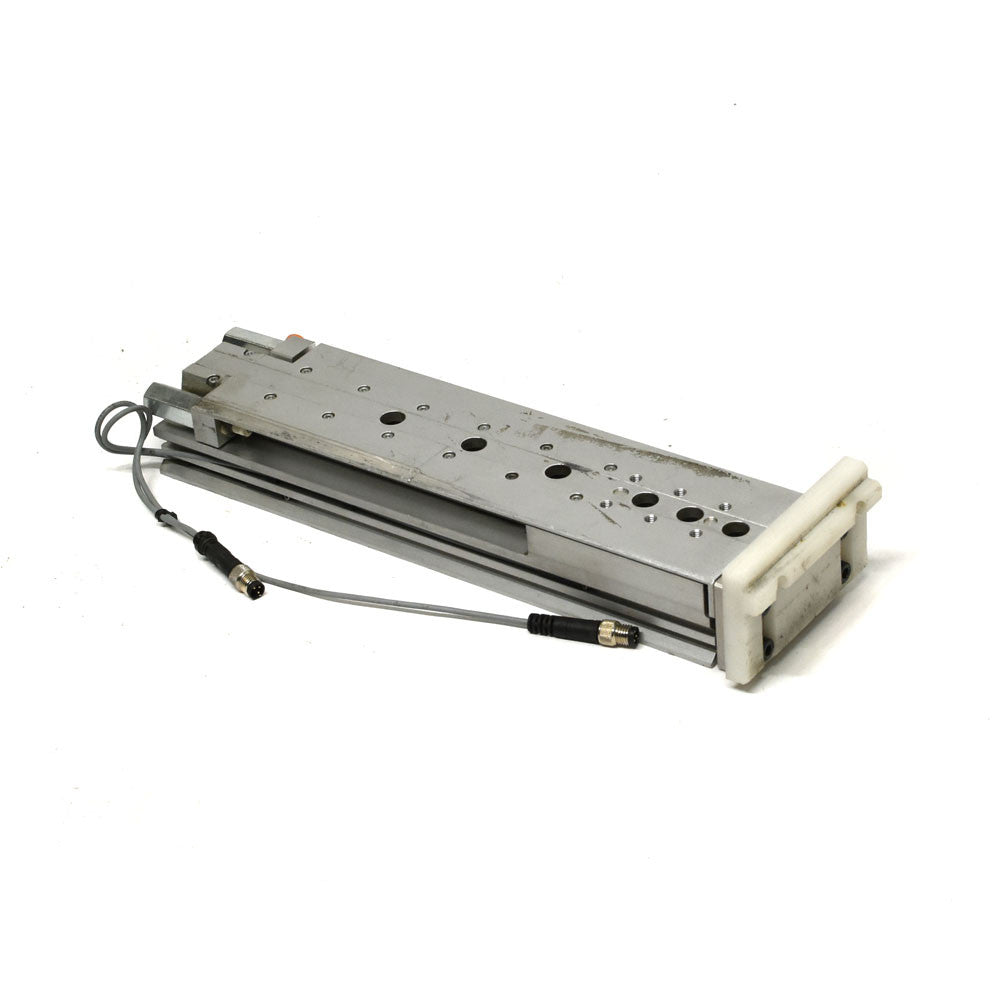

Festo SLT-16-150-A-CC-B Double-Acting Pneumatic Mini Slide
- Regular price
- $1,425.00
- Sale price
- $1,425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SLT-16-150-A-CC-B
Description
The Festo SLT-16-150-A-CC-B is a pneumatic mini slide designed for guided linear movement in handling and assembly equipment. It combines a 150 mm stroke, double-acting operation, and a precision ball-bearing guide with shock absorbers at both ends.
Technical Specifications
| Condition | New |
| Brand | Festo |
| Category | Machine Parts |
| Part Number | SLT-16-150-A-CC-B |
| Subcategory | Guide/Slide |
| Manufacturer Part Number | 197901 |
| Series | SLT |
| Actuator Type | Pneumatic mini slide |
| Piston Diameter | 16 mm |
| Stroke | 150 mm |
| Mode of Operation | Double-acting |
| Guide Type | Ball-bearing cage guide |
| Cushioning | Shock absorbers at both ends |
| End-Position Adjustment | 5 mm |
| Operating Pressure | 1–10 bar |
| Repetition Accuracy | 0.02 mm |
| Theoretical Forces at 6 Bar | Extension: 242 N; retraction: 207 N |
| Maximum Guide Loads | Fy/Fz: 660 N; Mx/My: 12.6 Nm; Mz: 3.5 Nm |
| Pneumatic Connection | M5 |
| Mounting | Through-holes; any mounting orientation |
| Position Detection | Via compatible proximity sensor |
| Weight | 3.77 lbs |
Information About SLT-16-150-A-CC-B
The SLT-16-150-A-CC-B is part of the Festo SLT series and uses a 16 mm piston diameter. Its ball-bearing cage guide supports the slide table during extension and retraction. Adjustable end positions provide 5 mm of adjustment for matching travel limits to the application. M5 pneumatic connections and through-hole mounting support integration into compatible automated machinery.
Key Features:
- Guided Linear Motion: Uses a precision ball-bearing cage guide to support the moving table.
- Extended Travel: Provides a 150 mm stroke for transfer and positioning operations.
- Double-Acting Drive: Uses compressed air to power extension and retraction.
- End Cushioning: Includes shock absorbers at both ends to reduce stopping impact.
- Adjustable End Positions: Offers 5 mm of adjustment for setting travel limits.
- Repeatable Positioning: Specifies a repetition accuracy of 0.02 mm.
- Pneumatic Connections: Uses M5 ports for connection to compatible air circuits.
- Position Monitoring: Supports compatible proximity sensors for detecting slide position.
The SLT-16-150-A-CC-B delivers the reliability and precision required for guided pneumatic transfer and positioning in automated equipment.
