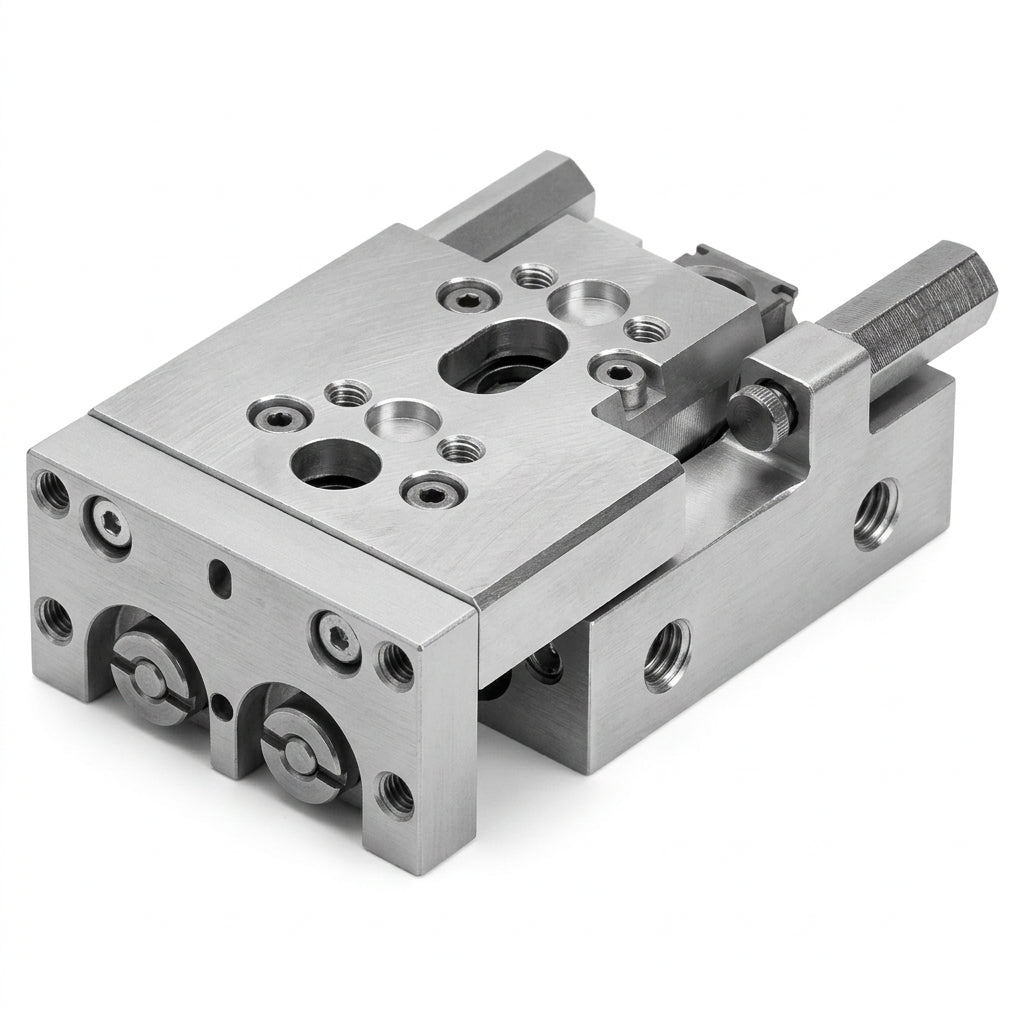

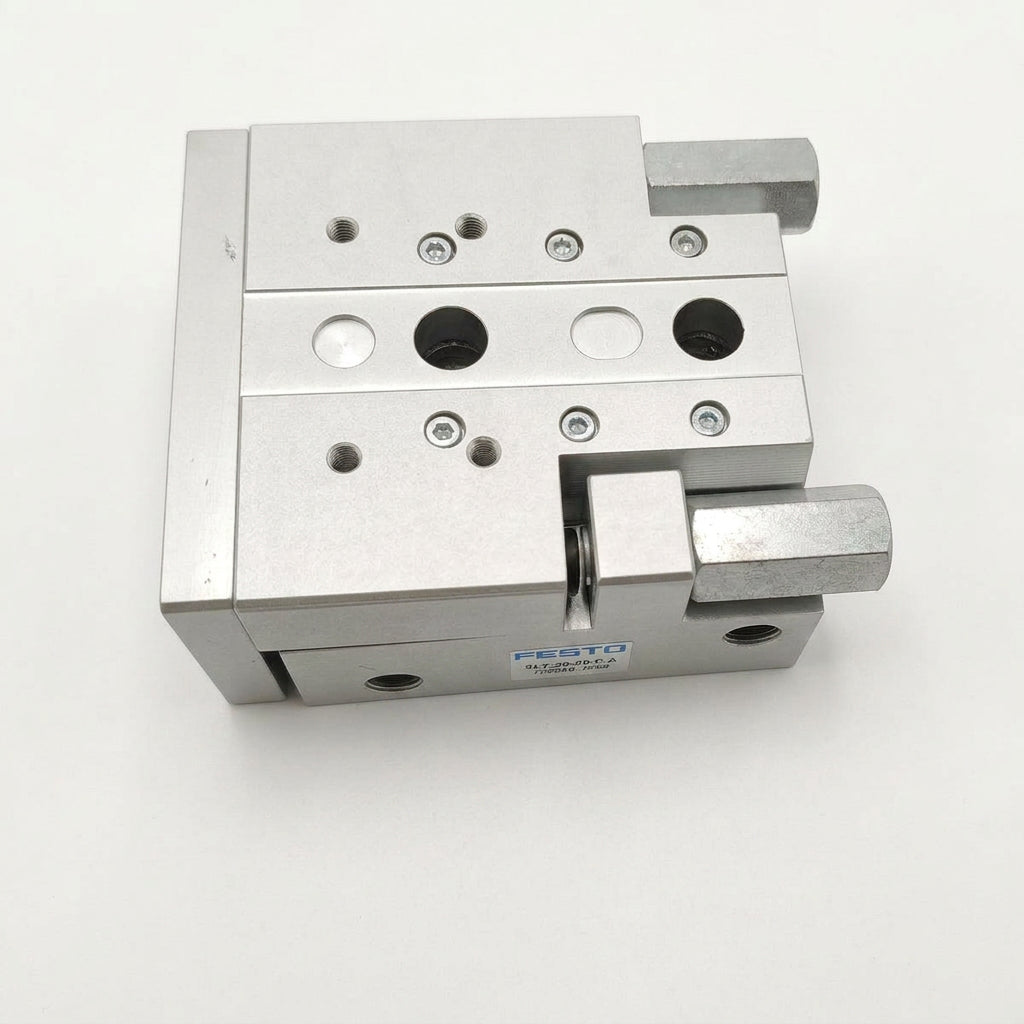

Festo SLT-20-20-P-A Double Acting Guided Pneumatic Mini Slide with Adjustable End Stops
- Regular price
- $1,882.00
- Sale price
- $1,882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SLT-20-20-P-A
Description
The Festo SLT-20-20-P-A is a double-acting pneumatic mini slide for guided linear movement in assembly, positioning, and handling equipment. It combines a 20 mm piston diameter with a 20 mm stroke and a precision ball-bearing guide. Flexible cushioning at both ends reduces end-position impact.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Actuators |
| Part Number | SLT-20-20-P-A |
| Subcategory | Guided Mini Slides |
| Series / Manufacturer Article Number | SLT / 170568 |
| Operating Mode / Mechanism | Double acting / yoke kinematics |
| Piston Diameter / Stroke | 20 mm / 20 mm |
| Guide Type | Ball-bearing cage guide |
| Cushioning | Flexible cushioning rings or plates at both ends |
| End-Position Adjustment Range | 12 mm |
| Position Detection | For compatible proximity sensor |
| Operating Pressure | 1–10 bar |
| Pneumatic Connection | G1/8 |
| Theoretical Force at 6 Bar | Advance: 376 N; return: 317 N |
| Moving Mass | 526 g |
| Ambient Temperature | −20°C to +60°C |
| Mounting | Through-hole; any orientation |
| Housing / Piston Rod / Seal Materials | Wrought aluminum alloy / corrosion-resistant high-alloy steel / HNBR |
| Weight | 1.147 kg (2.53 lb) |
Information About SLT-20-20-P-A
The SLT-20-20-P-A is part of Festo’s SLT series and carries manufacturer article number 170568. Its yoke mechanism transfers pneumatic drive motion to the guided slide assembly. Adjustable end stops allow the travel endpoints to be set for the application. Proximity sensor compatibility supports position feedback for machine sequencing.
Key Features:
- Guided Linear Motion: Uses a ball-bearing cage guide to support controlled slide movement.
- Double-Acting Drive: Applies compressed air for both advance and return strokes.
- Compact Travel: Provides a nominal 20 mm stroke with a 20 mm piston diameter.
- Flexible Cushioning: Incorporates elastic cushioning rings or plates at both ends.
- Adjustable End Stops: Provides a 12 mm end-position adjustment range.
- Position Detection: Supports compatible proximity sensors for travel monitoring.
- Pneumatic Connections: Uses G1/8 ports for compressed-air supply.
- Mounting Flexibility: Supports through-hole installation in any orientation.
The SLT-20-20-P-A delivers the reliability and precision required for guided pneumatic positioning and repeatable transfer movements in automated machinery.
