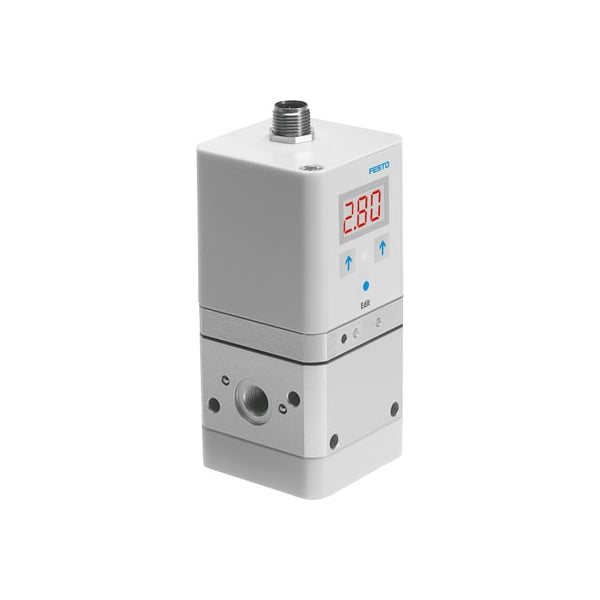

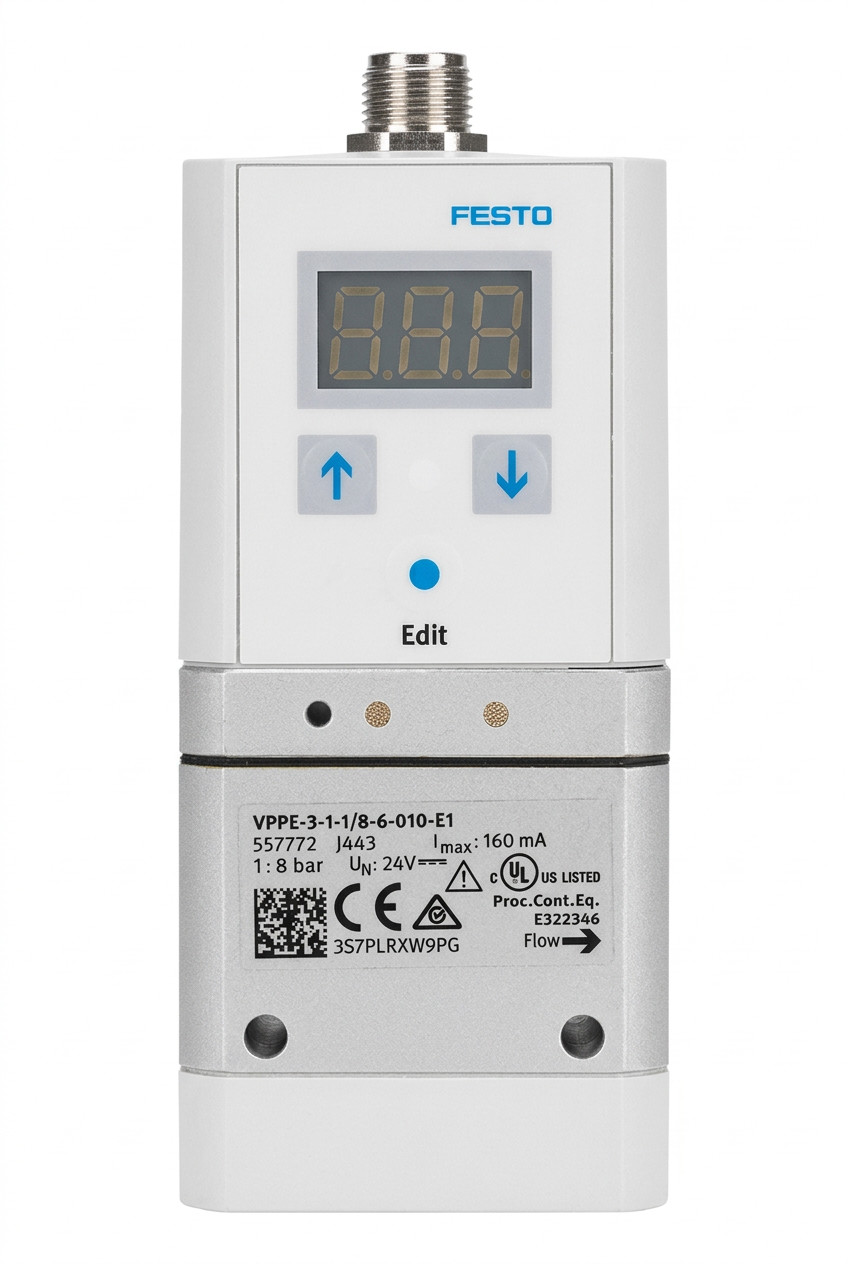

Festo VPPE-3-1-1/8-6-010-E1 Proportional Pneumatic Pressure Regulator with LED Display
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VPPE-3-1-1/8-6-010-E1
Description
The Festo VPPE-3-1-1/8-6-010-E1 is an electrically actuated proportional regulator for adjusting pneumatic pressure in automated equipment. It controls output pressure from 0.06 to 6 bar using a 0–10 V analog command signal. G1/8 connections and an 800 l/min standard nominal flow rate support installation in compatible compressed-air circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Controls |
| Part Number | VPPE-3-1-1/8-6-010-E1 |
| Subcategory | Proportional Pressure Regulators |
| Series / Manufacturer Article Number | VPPE / 557772 |
| Valve Function | 3-way proportional pressure regulator |
| Actuation / Design / Reset | Electrical / piloted diaphragm regulator / mechanical spring |
| Pressure Regulation Range | 0.06–6 bar |
| Inlet Pressure Range | 6–8 bar |
| Standard Nominal Flow Rate | 800 l/min, standardized to DIN 1343 |
| Supply / Exhaust Nominal Size | 5 mm / 2.5 mm |
| Pneumatic Connections | G1/8 at ports 1, 2, and 3 |
| Operating Voltage | 21.6–26.4 VDC |
| Maximum Current / Power Consumption | 160 mA / 4.2 W |
| Analog Input / Output | 0–10 V / 0–10 V |
| Switching Output / Display | PNP / three-digit LED |
| Total Accuracy | 1.25% of full scale |
| Electrical Connection / Protection | Five-pin M12 plug / IP65 |
| Ambient / Media Temperature | 0°C to +60°C / +10°C to +50°C |
| Weight | 0.39 kg (0.86 lb) |
Information About VPPE-3-1-1/8-6-010-E1
The VPPE-3-1-1/8-6-010-E1 is part of Festo’s VPPE series and carries manufacturer article number 557772. Its pilot-controlled diaphragm mechanism combines soft sealing with mechanical spring reset. A three-digit LED display provides local indication, while analog feedback and a PNP switching output support control-system integration. The anodized aluminum housing incorporates a five-pin M12 electrical connection and through-hole mounting.
Key Features:
- Proportional Pressure Control: Regulates downstream pressure within a 0.06–6 bar range.
- Three-Way Function: Controls supply and exhaust airflow to raise or lower output pressure.
- Analog Command Input: Accepts a 0–10 V signal for pressure setpoint control.
- Analog Feedback Output: Provides a 0–10 V output for pressure monitoring.
- Local Display: Includes a three-digit LED indicator for direct reading.
- Pneumatic Connections: Uses G1/8 threads at the supply, regulated outlet, and exhaust ports.
- Nominal Flow Capacity: Provides 800 l/min, standardized to DIN 1343.
- Electrical Protection: Incorporates short-circuit and reverse-polarity protection for electrical connections.
The VPPE-3-1-1/8-6-010-E1 delivers the reliability and precision required for electronically adjustable pneumatic pressure control in industrial automation.
