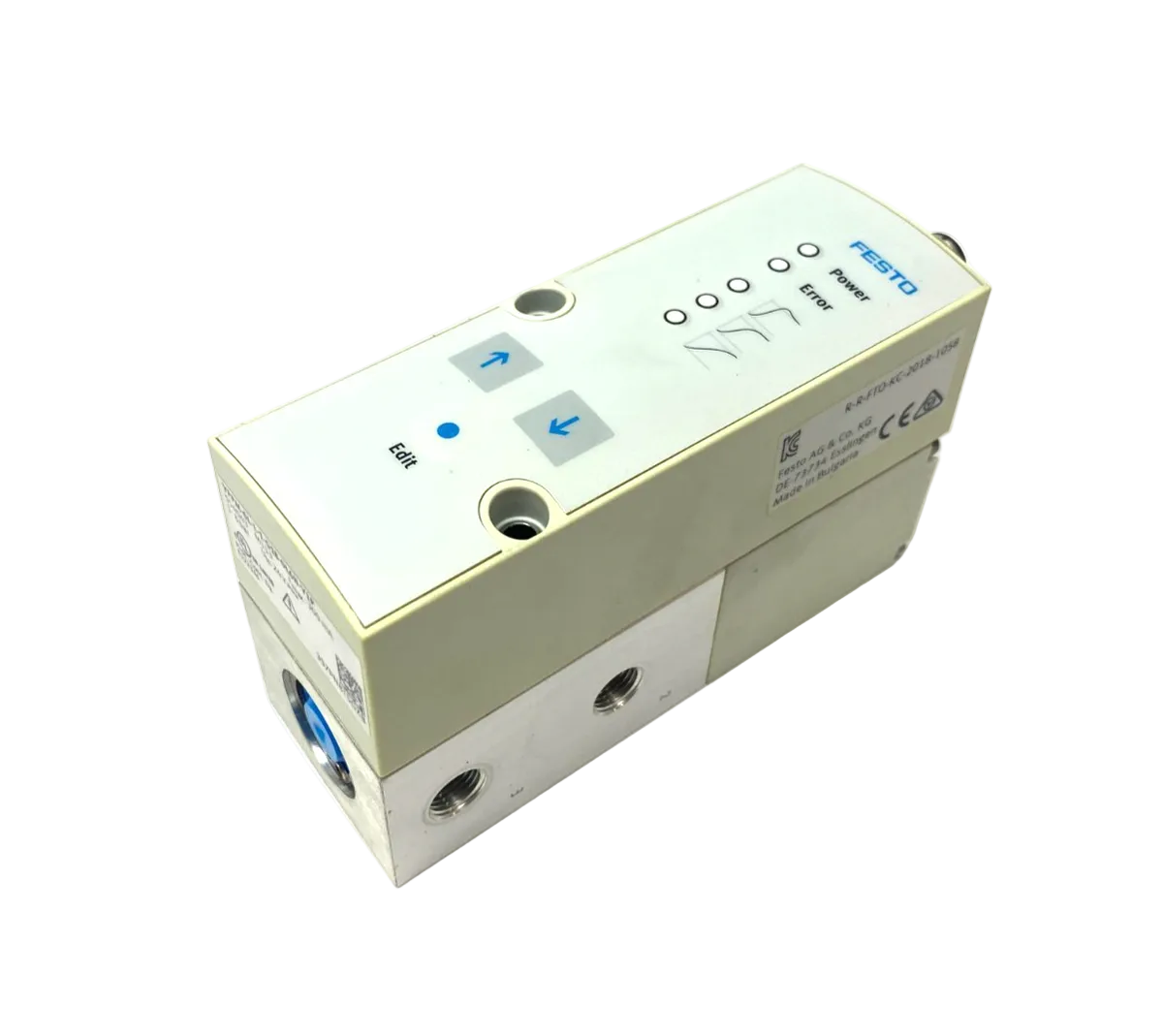

Festo VPPM-6L-L-1-G18-0L6H-V1P Proportional Pressure Regulator
- Regular price
- $739.00
- Sale price
- $739.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VPPM-6L-L-1-G18-0L6H-V1P
Description
The Festo VPPM-6L-L-1-G18-0L6H-V1P is an electrically controlled proportional pressure regulator designed to maintain precise pressure levels in pneumatic automation systems. It provides an adjustable output pressure range of 0.06 to 6 bar, with a nominal flow rate of 900 l/min and G1/8 pneumatic connections. Its 0–10 V analog control interface enables pressure regulation based on an external control signal.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Pneumatics |
|
Part Number |
VPPM-6L-L-1-G18-0L6H-V1P |
|
Subcategory |
Pneumatic Pressure Regulators |
|
Manufacturer Part Number |
554043 |
|
Series |
VPPM |
|
Pressure Regulation Range |
0.06–6 bar |
|
Maximum Inlet Pressure |
8 bar |
|
Nominal Flow Rate |
900 l/min |
|
Nominal Pressurization Diameter |
6 mm |
|
Exhaust Diameter |
4.5 mm |
|
Operating Voltage |
21.6–26.4 V DC |
|
Analog Input Signal |
0–10 V |
|
Maximum Current Consumption |
300 mA |
|
Maximum Power Consumption |
7 W |
|
Electrical Connection |
8-pin M12 plug |
|
Pneumatic Connections |
G1/8 |
|
Control Type |
Pilot-controlled |
|
Display |
Backlit LCD |
|
Housing Material |
Anodized wrought aluminum alloy |
|
Medium Temperature |
10°C to +50°C |
|
Ambient Temperature |
0°C to +60°C |
|
Protection Rating |
IP65 |
|
Corrosion Resistance Class |
CRC 2 |
|
Weight |
0.88 lb |
Information About VPPM-6L-L-1-G18-0L6H-V1P
The VPPM-6L-L-1-G18-0L6H-V1P belongs to Festo’s VPPM series of proportional pressure regulators and is identified by part number 554043. It uses a pilot-controlled diaphragm mechanism to regulate compressed-air pressure in response to electrical input signals. The regulator operates on a 24 V DC nominal supply and supports an input voltage range of 0–10 V. Its anodized aluminum housing, integrated display, and IP65 protection rating support use in industrial pneumatic installations.
Key Features:
-
Proportional Pressure Regulation: Adjusts pneumatic output pressure in response to an electrical control signal.
-
Pressure Range: Regulates output pressure from 0.06 to 6 bar.
-
Nominal Flow Rate: Provides a rated flow of 900 l/min.
-
Analog Control: Supports a 0–10 V analog input signal for pressure adjustment.
-
Electrical Supply: Operates within a 21.6–26.4 V DC supply range.
-
G1/8 Connections: Provides pneumatic inlet, outlet, and exhaust connections.
-
Integrated Display: Includes a backlit LCD for viewing operating information and settings.
-
Industrial Protection: Features an IP65 protection rating and an anodized aluminum housing.
The VPPM-6L-L-1-G18-0L6H-V1P delivers the reliability and precision required for controlled pneumatic pressure regulation in industrial automation systems.
