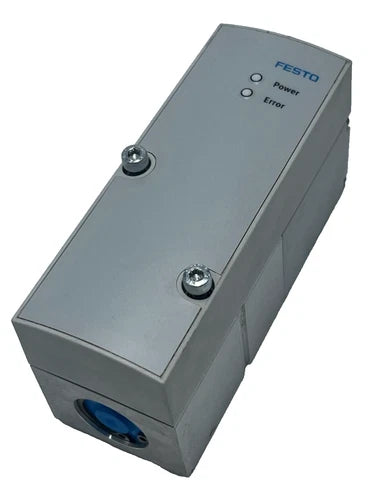

Festo VPPM-6TA-L-1-F-0L10H-S1 Proportional Pneumatic Pressure Regulator
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VPPM-6TA-L-1-F-0L10H-S1
Description
The Festo VPPM-6TA-L-1-F-0L10H-S1 is an electrically actuated proportional pressure regulator for adjusting pneumatic pressure in automated equipment. It regulates output pressure from 0.1 to 10 bar and provides a standard nominal flow rate of 1,400 l/min. Its three-way function supports both pressurization and pressure reduction through exhaust.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Controls |
| Part Number | VPPM-6TA-L-1-F-0L10H-S1 |
| Subcategory | Proportional Pressure Regulators |
| Series / Manufacturer Article Number | VPPM / 542219 |
| Valve Function | 3-way proportional pressure regulator |
| Actuation / Design | Electrical / pilot-controlled diaphragm regulator |
| Reset Method | Mechanical spring |
| Pressure Regulation Range | 0.1–10 bar |
| Inlet Pressure Range | 0–11 bar |
| Standard Nominal Flow Rate | 1,400 l/min, standardized to DIN 1343 |
| Supply / Exhaust Nominal Size | 6 mm / 4.5 mm |
| Operating Voltage | 21.6–26.4 VDC |
| Maximum Current / Power Consumption | 300 mA / 7 W |
| Duty Cycle | 100% |
| Total Accuracy / Reproducibility | 1.25% FS / 0.5% FS |
| Electrical / Pneumatic Connections | Via sub-base |
| Protection / Housing | IP65 / anodized wrought aluminum alloy |
| Ambient / Media Temperature | 0°C to +60°C / +10°C to +50°C |
| Weight | 0.40 kg (0.88 lb) |
Information About VPPM-6TA-L-1-F-0L10H-S1

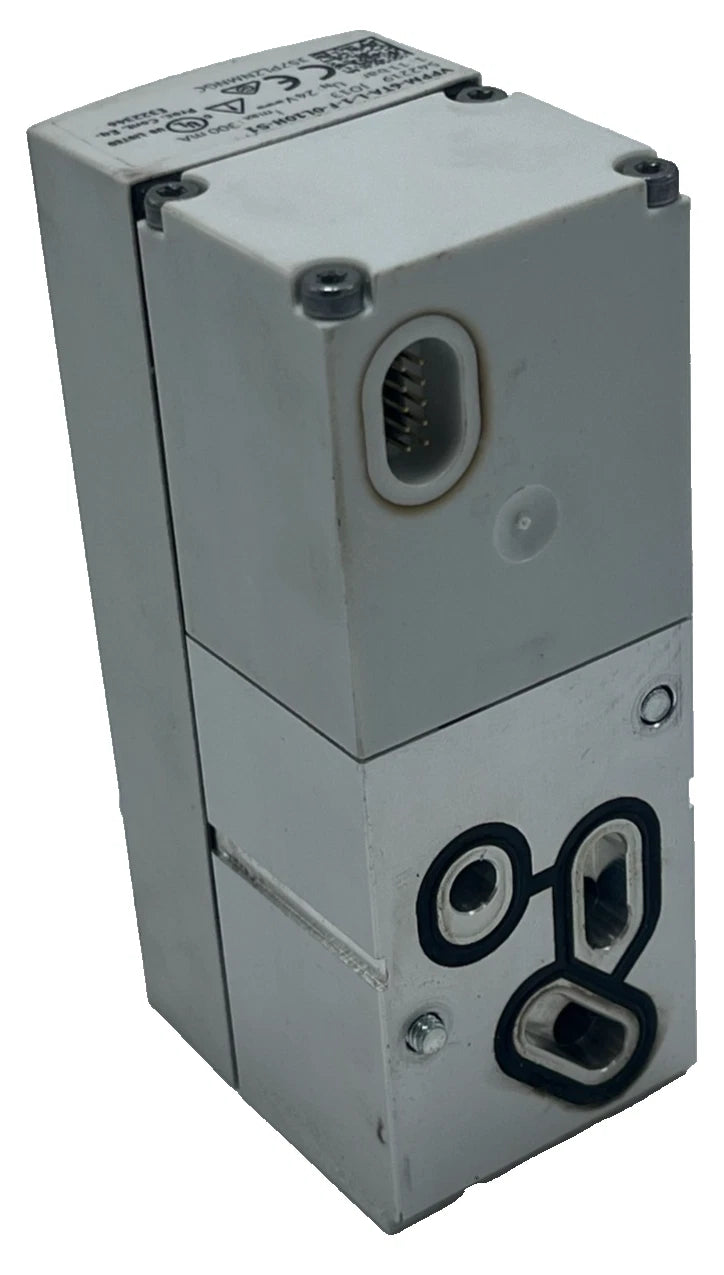

The VPPM-6TA-L-1-F-0L10H-S1 is part of Festo’s VPPM series and carries manufacturer article number 542219. It uses a pilot-controlled diaphragm mechanism with soft sealing and mechanical spring reset. Pneumatic ports and electrical connections interface through a compatible sub-base. The anodized aluminum housing incorporates LED indication and IP65 protection for installation in suitable industrial environments.
Key Features:
- Proportional Regulation: Adjusts output pressure continuously within the specified 0.1–10 bar range.
- Three-Way Function: Controls supply and exhaust flow to increase or decrease downstream pressure.
- Pilot-Controlled Design: Uses a piloted diaphragm regulator mechanism.
- Nominal Flow Capacity: Provides 1,400 l/min, standardized to DIN 1343.
- DC Power Supply: Operates from 21.6–26.4 VDC with maximum current consumption of 300 mA.
- Regulation Accuracy: Specifies total accuracy of 1.25% of full scale.
- Sub-Base Connections: Routes electrical and pneumatic interfaces through a compatible mounting sub-base.
- Environmental Protection: Provides IP65 protection and an anodized aluminum housing.
The VPPM-6TA-L-1-F-0L10H-S1 delivers the reliability and precision required for adjustable pneumatic pressure control in automated production systems.
