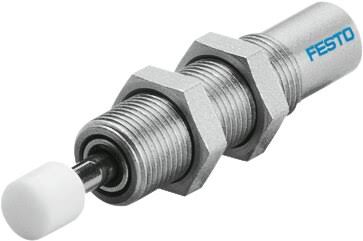

Festo YSR-25-40-C Self-Adjusting Hydraulic Shock Absorber for Industrial Motion Cushioning
- Regular price
- $1,882.00
- Sale price
- $1,882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: YSR-25-40-C
Description
The Festo YSR-25-40-C is a self-adjusting industrial shock absorber for decelerating moving machine components and reducing end-position impact. Its 40 mm cushioning stroke absorbs up to 160 J per stroke at impact velocities up to 3 m/s, subject to application sizing. It provides hydraulic damping for compatible pneumatic drives and handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Motion Control |
| Part Number | YSR-25-40-C |
| Subcategory | Industrial Shock Absorbers |
| Series / Manufacturer Article Number | YSR-C / 160273 |
| Size | 25 |
| Damping Type | Hydraulic, self-adjusting |
| Mode of Operation | Single-acting, pushing |
| Stroke / Cushioning Length | 40 mm / 40 mm |
| Maximum Impact Velocity | 3 m/s |
| Maximum Energy Absorption per Stroke | 160 J |
| Maximum Energy Absorption per Hour | 150,000 J |
| Maximum Stop Force | 4,000 N |
| Load Range | 200 kg, subject to application sizing |
| Reset Time | 0.4 s at room temperature; 1 s at minimum ambient temperature |
| Reset Force / Minimum Insertion Force | 14 N / 140 N |
| Ambient Temperature Range | −10°C to +80°C |
| Housing / Rod / Seal Materials | Galvanized steel / high-alloy steel / NBR |
| Mounting | Lock nut; any orientation |
| Weight | 0.60 kg (1.32 lb) |
Information About YSR-25-40-C
The YSR-25-40-C is a size 25 model in Festo’s YSR-C cushioning series, identified by article number 160273. Its hydraulic mechanism uses path-controlled flow restriction to produce a progressively increasing cushioning force. The single-acting, pushing assembly combines a galvanized steel housing, high-alloy steel piston rod, and NBR seals. A threaded body and lock nut allow mounting in any orientation. ftp.festo.com
Key Features:
- Self-Adjusting Cushioning: Provides damping without a manual cushioning adjustment.
- Hydraulic Damping: Dissipates motion energy through controlled internal fluid flow.
- Cushioning Stroke: Provides 40 mm of travel for decelerating moving components.
- Energy Absorption: Handles up to 160 J per stroke within the specified operating limits.
- Impact Velocity: Accommodates impact speeds up to 3 m/s.
- Automatic Reset: Returns with a specified reset force of 14 N.
- Steel Construction: Uses a galvanized housing and high-alloy steel piston rod.
- Flexible Installation: Supports lock-nut mounting in any orientation.
The YSR-25-40-C delivers the reliability and precision required for controlled deceleration and impact reduction in automated machinery.
