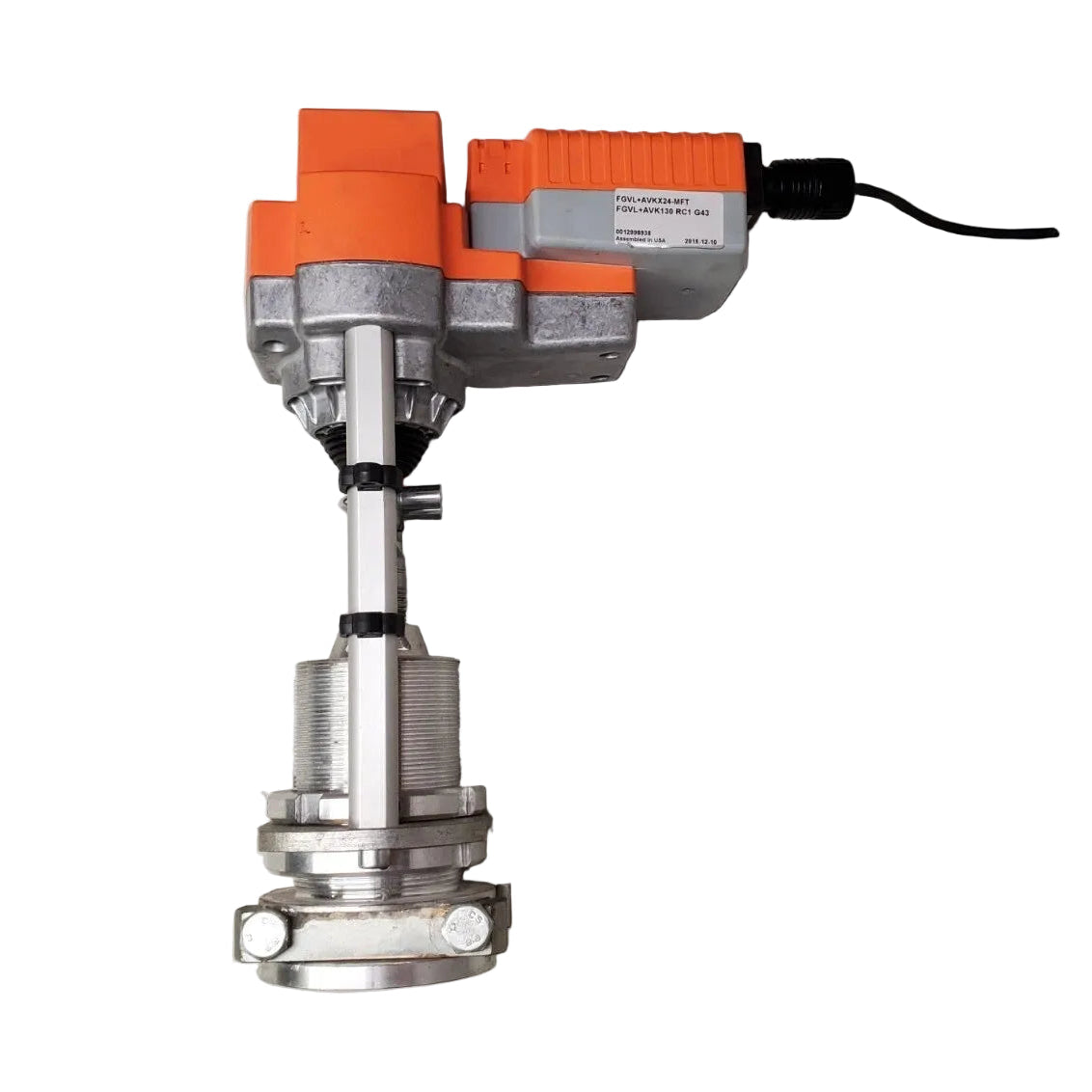

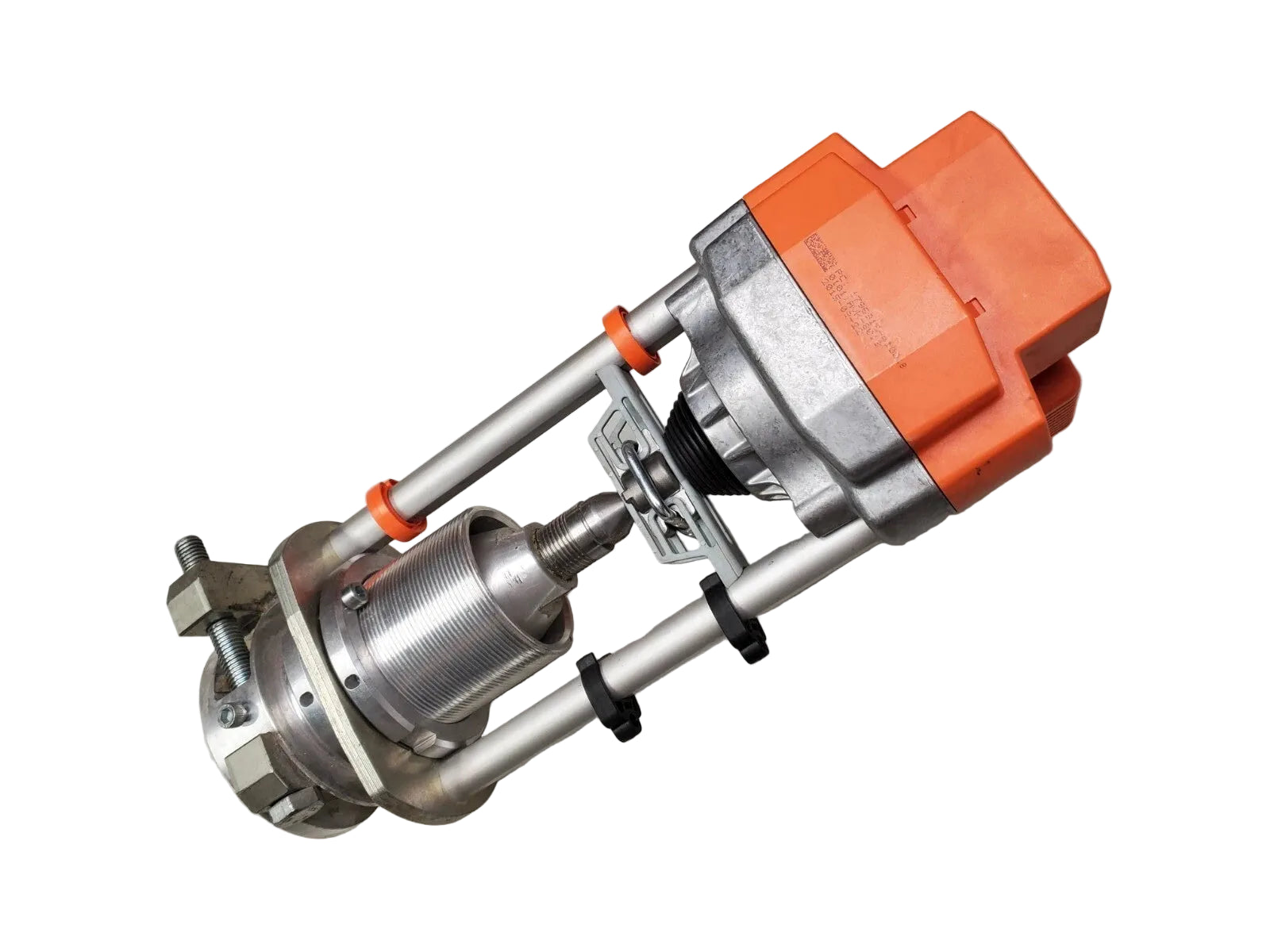

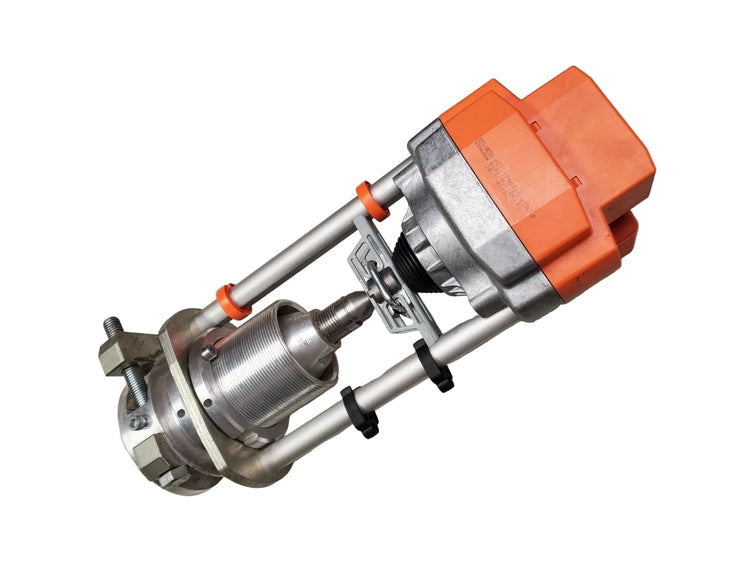

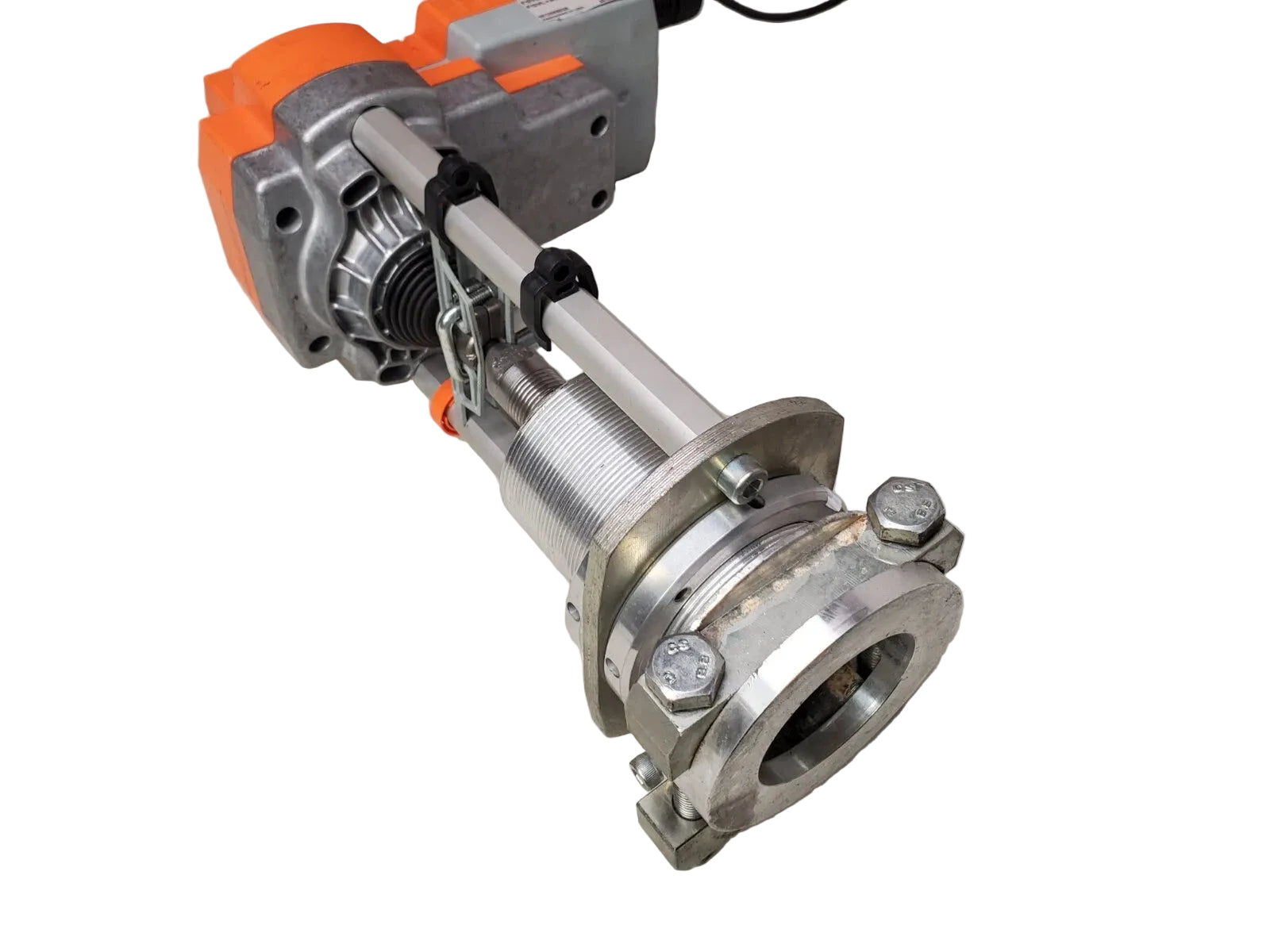

FGVL+AVKX24-MFT | Belimo Electronic Fail Safe Globe Valve Linkage With MFT Actuator
- Regular price
- $1,526.00
- Sale price
- $1,526.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FGVL+AVKX24-MFT
Description
The Belimo FGVL+AVKX24-MFT is a universal flanged globe valve linkage assembly with an integrated electronic fail-safe MFT programmable actuator. It delivers up to 450 lbf of actuating force for precise and reliable control of globe valves in hydronic and steam HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | FGVL+AVKX24-MFT |
| Subcategory | Valve Actuators |
| Assembly Type | Globe valve linkage with actuator |
| Applicable Valve Size | 2.5…6 in (DN 65…150) |
| Actuating Force | 2000 N (450 lbf) |
| Stroke | 1.25 in (32 mm) |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 5 W |
| Power Consumption (Rest) | 2 W |
| Transformer Sizing | 9.5 VA (Class 2) |
| Control Signals | 2…10 V, 4…20 mA, PWM, On/Off, Floating Point |
| Actuator Type | Electronic fail-safe, MFT programmable |
| Running Time | 90 s (adjustable 90…150 s) |
| Fail-Safe Running Time | <35 s |
| Position Feedback | 2…10 V, variable |
| Electrical Connection | 18 GA plenum cable, 3 ft, 1/2" conduit |
| Degree of Protection | IP54 / NEMA 2 |
| Mounting Position | 360° |
| Fluid Compatibility | Chilled or hot water, steam |
| Ambient Temperature | Per actuator specifications |
| Weight | 14.9 lb |
Information About FGVL+AVKX24-MFT

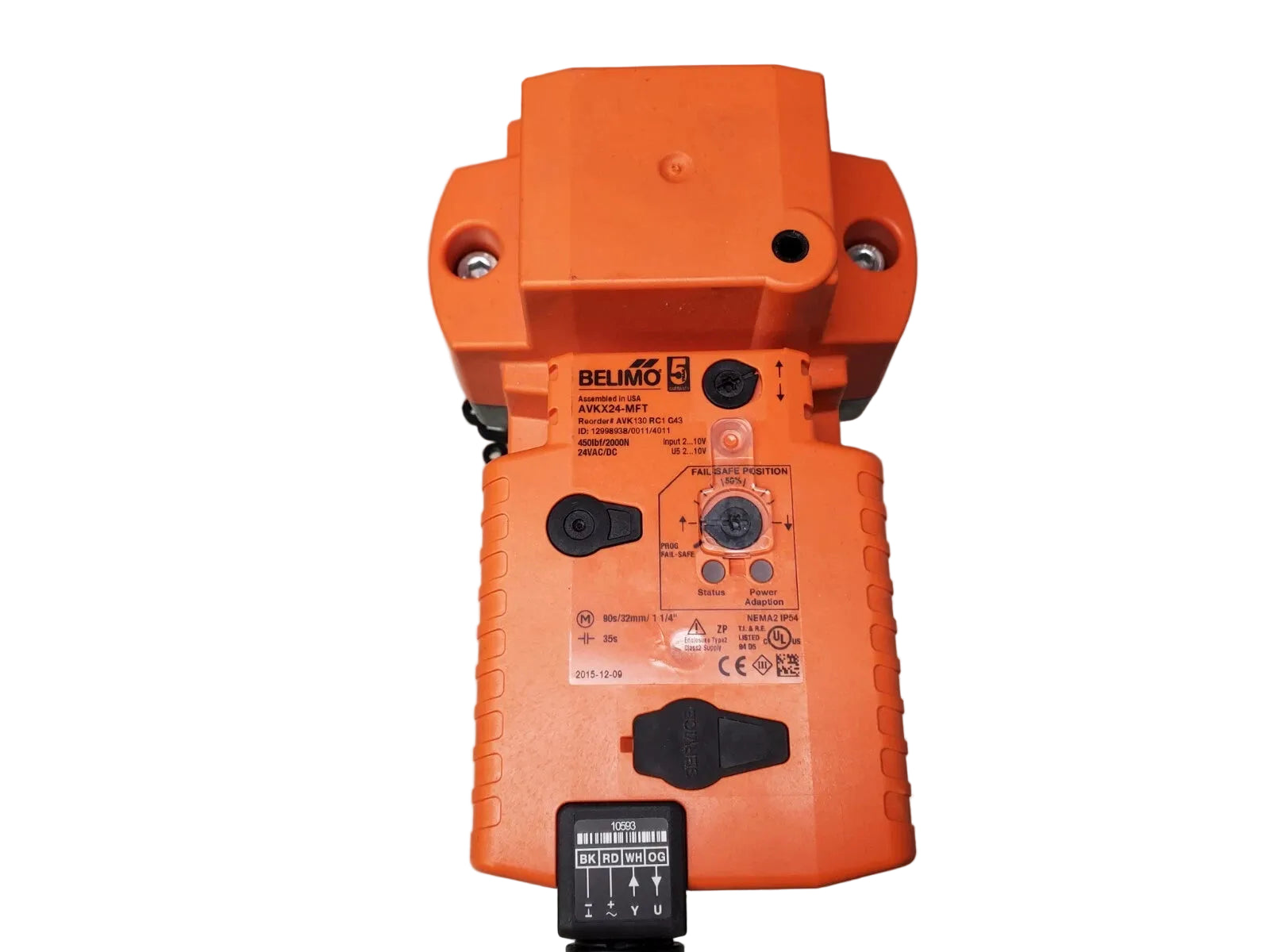

The FGVL+AVKX24-MFT is part of Belimo’s universal globe valve linkage solutions engineered to retrofit and adapt globe valves from multiple manufacturers. It supports EV, RV, and AVK actuator platforms and accommodates valve bonnet diameters up to 2.3 inches, providing broad mechanical compatibility. The integrated AVKX24-MFT electronic fail-safe actuator offers programmable MFT control with configurable inputs, feedback, and fail-safe behavior. Designed for maintenance-free operation, the assembly combines robust mechanical construction with advanced electronic control for dependable long-term performance.
Key Features
- Universal Globe Valve Linkage Design: Compatible with 2.5 to 6 inch globe valves, including retrofit applications across multiple valve brands.
- Electronic Fail-Safe Actuation: Integrated energy storage drives the valve to a defined safety position during power loss for system protection.
- High Linear Actuating Force: Provides up to 450 lbf (2000 N) of force for reliable valve stroke control under demanding pressure conditions.
- MFT Programmable Control Platform: Supports 2…10 V, 4…20 mA, PWM, on/off, and floating point control from a single configurable actuator.
- Flexible Installation Orientation: 360-degree mounting capability simplifies installation in tight mechanical spaces.
- Configurable Feedback And Timing: Adjustable position feedback, runtime, and fail-safe parameters enable precise system tuning.
- Durable Mechanical Construction: Stainless steel stem, aluminum frame components, and corrosion-resistant materials support long service life.
The FGVL+AVKX24-MFT delivers the reliability and precision required for electronically fail-safe globe valve control in commercial and industrial HVAC systems.
