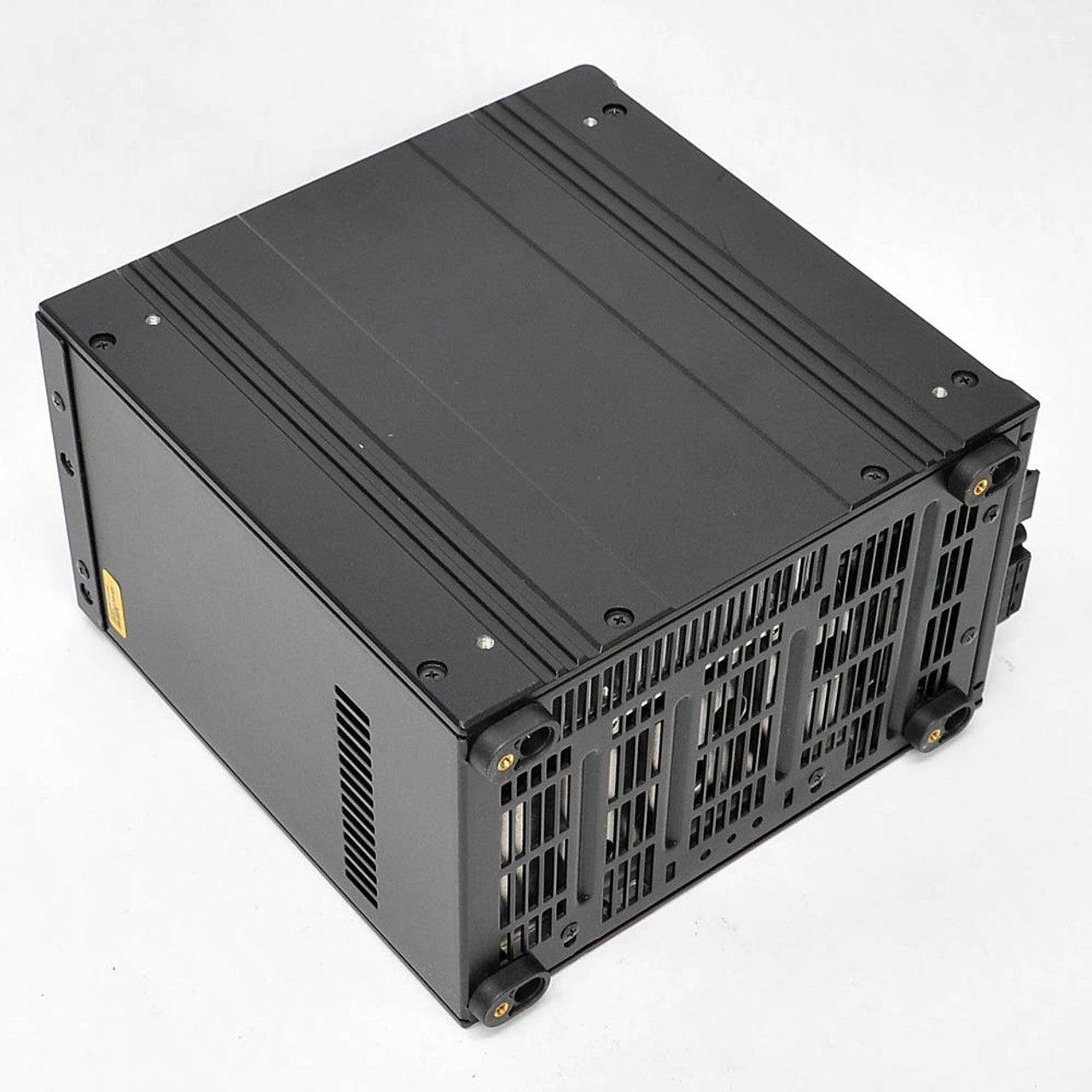

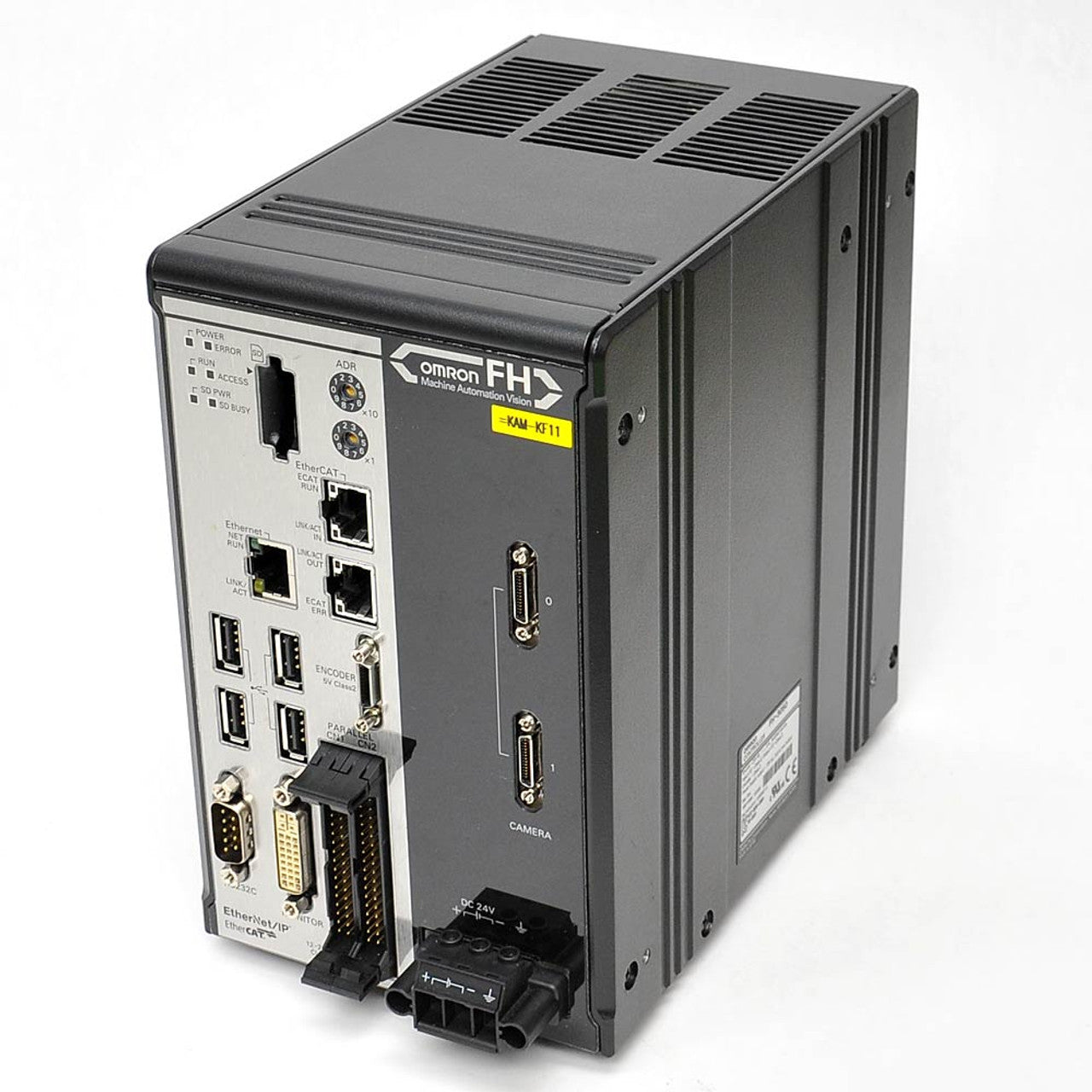

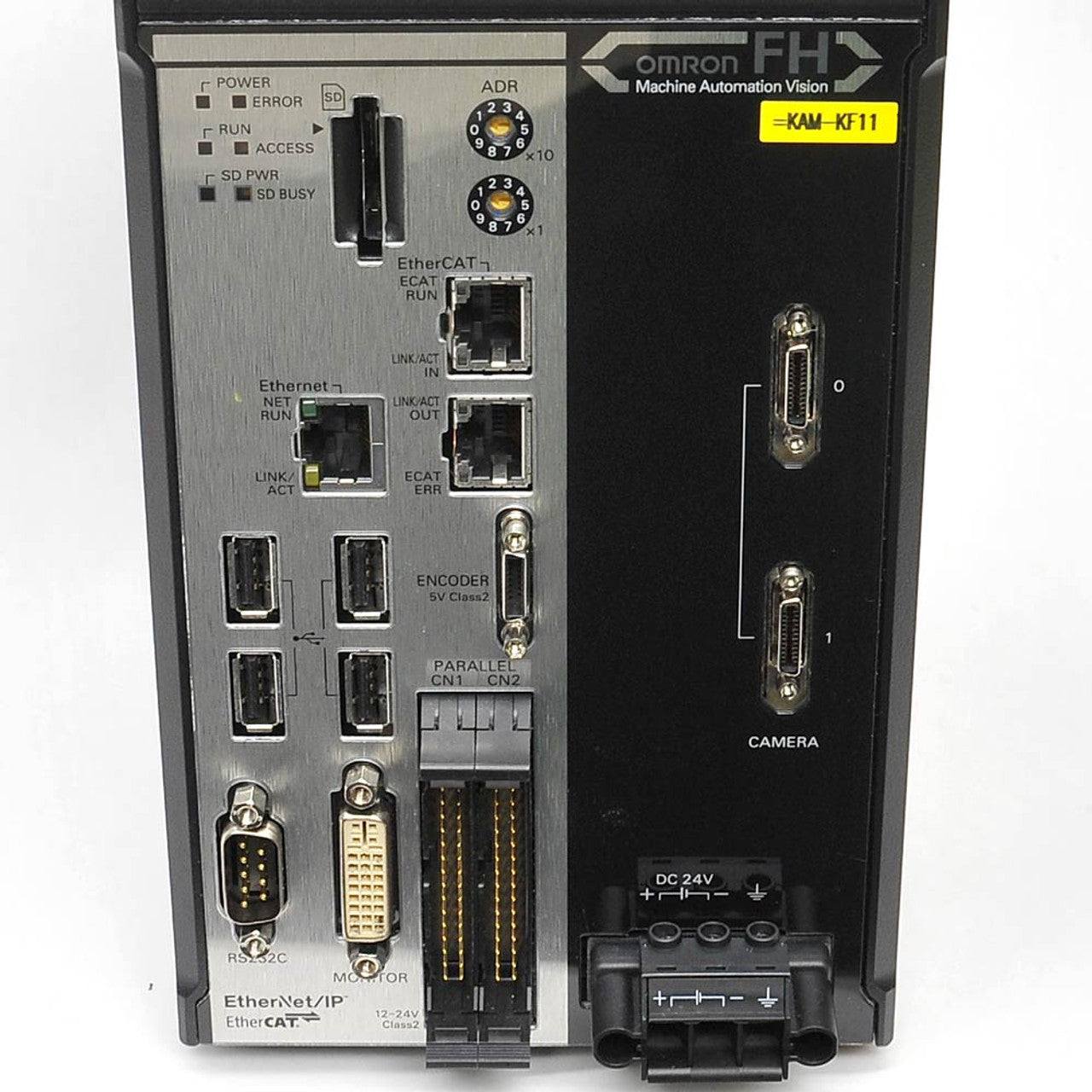

FH-3050 | Omron Machine Vision Controller for Multi-Camera Inspection and Measurement
- Regular price
- $2,787.00
- Sale price
- $2,787.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH-3050
Description
The Omron FH-3050 Machine Vision Controller is a high-speed image processing unit engineered for advanced inspection, measurement, and quality control in automated production systems. It supports multi-camera configurations and integrates with Omron’s FH-series vision sensors to deliver precise, real-time analysis for high-throughput applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Machine Vision Systems |
| Part Number | FH-3050 |
| Subcategory | Vision Controllers |
| Series | FH Series |
| Type | Machine Vision Controller |
| Processor | High-Speed Multi-Core CPU (proprietary) |
| Supported Cameras | Omron FH-Series, GigE Vision, USB3 Vision (depending on configuration) |
| Camera Inputs | Multiple (configurable per system design) |
| Image Processing Functions | Defect Detection, Measurement, Pattern Matching, OCR |
| Control Interfaces | Ethernet/IP, EtherCAT, Serial (RS-232C), USB |
| Supported Communication Protocols | TCP/IP, UDP, EtherCAT, Ethernet/IP |
| Storage | Solid-State or CompactFlash (model-dependent) |
| Display Output | DVI or HDMI (depending on version) |
| Mounting Type | DIN Rail / Panel Mount |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0°C to 50°C |
| Software | Omron FH Series Vision Software |
| Application | Industrial Inspection, Quality Control, Robotics, Measurement Systems |
| Enclosure Material | Industrial Metal Housing |
| Cooling Method | Convection or Internal Fan (model-dependent) |
| Dimensions | Approx. 8.0 x 5.0 x 3.0 in (typical) |
| Country of Origin | Japan |
| Weight | Approx. 2.4 lbs |
Information About FH-3050
The FH-3050 is part of the Omron FH Series, a next-generation family of vision controllers built for high-performance industrial inspection and measurement. It combines powerful image processing capabilities with fast communication interfaces, allowing synchronized operation with PLCs, robots, and motion controllers. Supporting high-resolution cameras and multiple image inputs, the FH-3050 can handle complex inspection tasks such as surface flaw detection, pattern matching, dimensional measurement, and optical character recognition (OCR). With its compact industrial form factor, this controller integrates seamlessly into production lines where reliability, speed, and precision are essential.
Key Features:
- High-Speed Image Processing: Handles multi-camera inputs with rapid data transfer and real-time inspection.
- Multi-Camera Compatibility: Supports various Omron FH-series and GigE vision cameras for flexible system design.
- Advanced Inspection Algorithms: Performs defect detection, dimension measurement, and pattern recognition.
- Integrated Communication Interfaces: Includes Ethernet/IP, EtherCAT, and serial connectivity for factory network integration.
- Compact Industrial Design: Space-saving chassis suitable for panel or rack mounting.
- Real-Time Control Integration: Synchronizes with Omron PLCs, robots, and motion systems for coordinated automation.
- User-Friendly Interface: Configurable via Omron FH software for intuitive setup and visual adjustment.
- High Reliability: Designed for continuous operation in demanding manufacturing environments.
The FH-3050 delivers the reliability and precision required for modern industrial vision inspection, process control, and automation applications.
