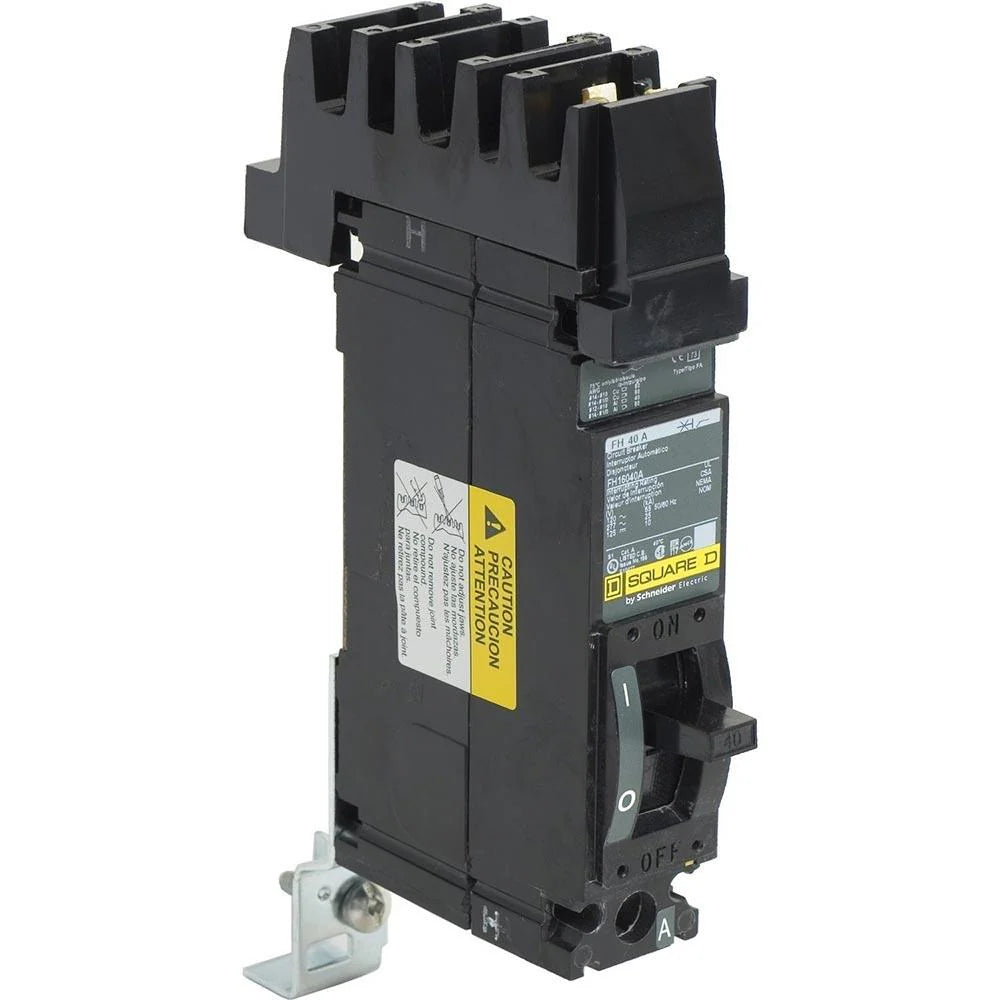

FH16100A | Schneider Electric Circuit Breaker, FH, 277V 100A
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH16100A
Description
The FH16100A is a circuit breaker manufactured by Square D, designed as part of the I-Line series. It falls under the type FH category and is configured for single-phase applications with a phase designation of A. With a current rating of 100A and an operational voltage of 277V, it conforms to standard interrupting rating requirements, boasting a rating of 25kA@240V. Operating under thermal magnetic principles, it features long-time and instantaneous trip functions for comprehensive circuit protection.
Technical Specifications
|
Part # |
FH16100A |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Circuit breaker |
|
Trip Unit Technology |
Thermal-magnetic |
|
Line Rated Current |
100 A |
|
Number of Poles |
1P |
|
Breaking capacity code |
H |
|
Mounting Mode |
I-Line |
|
Magnetic Hold Current |
900 A |
|
Magnetic Tripping Current |
1700 A |
|
Terminal identifier |
AL100FA |
|
Height |
6.4 in (162.56 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
4.13 in (104.90 mm) |
Information About FH16100A
The FH16100A, manufactured by Square D, is a circuit breaker designed for electrical applications. Falling under the I-Line series, it belongs to the type FH category and is configured for single-phase systems with an A phase circuit configuration. Featuring a current rating of 100A and an operational voltage of 277V, it adheres to standard interrupting rating requirements, boasting a rating of 25kA@240V.
Operating on thermal magnetic principles, the FH16100A incorporates long-time (L) and instantaneous (I) trip functions for comprehensive circuit protection. Its design is in a molded case style, facilitating durability and reliability in various operating conditions.
The FH16100A utilizes an I-Line style plug-in connection method, simplifying installation and maintenance processes. It is engineered to withstand temperatures up to 40 degrees Celsius, ensuring operational integrity in diverse environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The FH16100A is a circuit breaker manufactured by Square D, designed as part of the I-Line series. It falls under the type FH category and is configured for single-phase applications with a phase designation of A. With a current rating of 100A and an operational voltage of 277V, it conforms to standard interrupting rating requirements, boasting a rating of 25kA@240V. Operating under thermal magnetic principles, it features long-time and instantaneous trip functions for comprehensive circuit protection.
Technical Specifications
|
Part # |
FH16100A |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Circuit breaker |
|
Trip Unit Technology |
Thermal-magnetic |
|
Line Rated Current |
100 A |
|
Number of Poles |
1P |
|
Breaking capacity code |
H |
|
Mounting Mode |
I-Line |
|
Magnetic Hold Current |
900 A |
|
Magnetic Tripping Current |
1700 A |
|
Terminal identifier |
AL100FA |
|
Height |
6.4 in (162.56 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
4.13 in (104.90 mm) |
Information About FH16100A
The FH16100A, manufactured by Square D, is a circuit breaker designed for electrical applications. Falling under the I-Line series, it belongs to the type FH category and is configured for single-phase systems with an A phase circuit configuration. Featuring a current rating of 100A and an operational voltage of 277V, it adheres to standard interrupting rating requirements, boasting a rating of 25kA@240V.
Operating on thermal magnetic principles, the FH16100A incorporates long-time (L) and instantaneous (I) trip functions for comprehensive circuit protection. Its design is in a molded case style, facilitating durability and reliability in various operating conditions.
The FH16100A utilizes an I-Line style plug-in connection method, simplifying installation and maintenance processes. It is engineered to withstand temperatures up to 40 degrees Celsius, ensuring operational integrity in diverse environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
