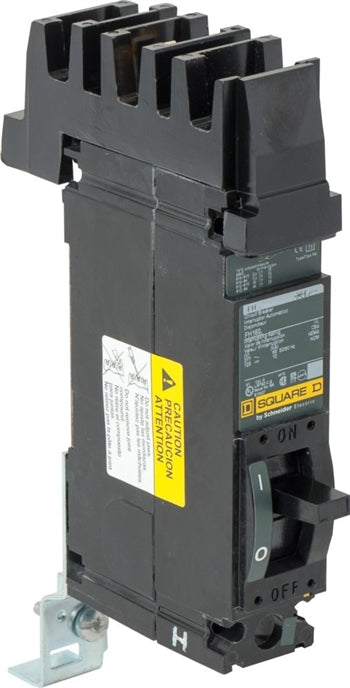

FH16100B | Square D 100A 1-Pole I-Line Thermal-Magnetic Molded Case Circuit Breaker
- Regular price
- $894.00
- Sale price
- $894.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FH16100B
Description
The Square D FH16100B is a single-pole molded case circuit breaker designed for branch circuit and distribution protection in electrical panelboards and switchboards. It uses a thermal-magnetic trip mechanism to provide reliable overload and short-circuit protection. This breaker is intended for I-Line mounting applications requiring consistent performance at medium voltage ratings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | FH16100B |
| Subcategory | Molded Case Circuit Breakers |
| Breaker Type | Molded Case Circuit Breaker |
| Trip Unit Technology | Thermal-Magnetic |
| Number of Poles | 1 |
| Rated Current | 100 A |
| Rated Voltage | 240 VAC / 480Y/277 VAC |
| Interrupting Rating | 25 kA |
| Mounting Type | I-Line |
| Load Connection | Lugs |
| Certifications | UL, CSA |
| Weight | 1.36 lbs |
Information About FH16100B
The FH16100B is part of the Square D FH series molded case circuit breakers, built for use in I-Line panelboards and switchboards. It features a compact F-frame construction with lug load connections and an I-Line line-side interface for fast installation. The breaker is designed for distribution applications where dependable thermal-magnetic protection is required. It is compatible with systems operating at multiple AC voltage levels and meets UL and CSA certification requirements.
Key Features:
-
Thermal-Magnetic Trip Unit: Provides combined overload and instantaneous short-circuit protection.
-
Single-Pole Design: Suitable for single-phase branch and distribution circuits.
-
I-Line Mounting Interface: Enables quick plug-in installation on compatible panelboards.
-
High Interrupting Capacity: Rated for up to 25 kA at specified voltage levels.
-
Lug Load Connection: Ensures secure and reliable conductor termination.
-
Compact F-Frame Construction: Optimized for space-efficient electrical installations.
-
Certified Compliance: UL and CSA listed for industrial and commercial use.
The FH16100B delivers the reliability and protection required for electrical distribution and panelboard applications.
