FH19 | Eaton Overload Relay Heater
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: FH19
Description

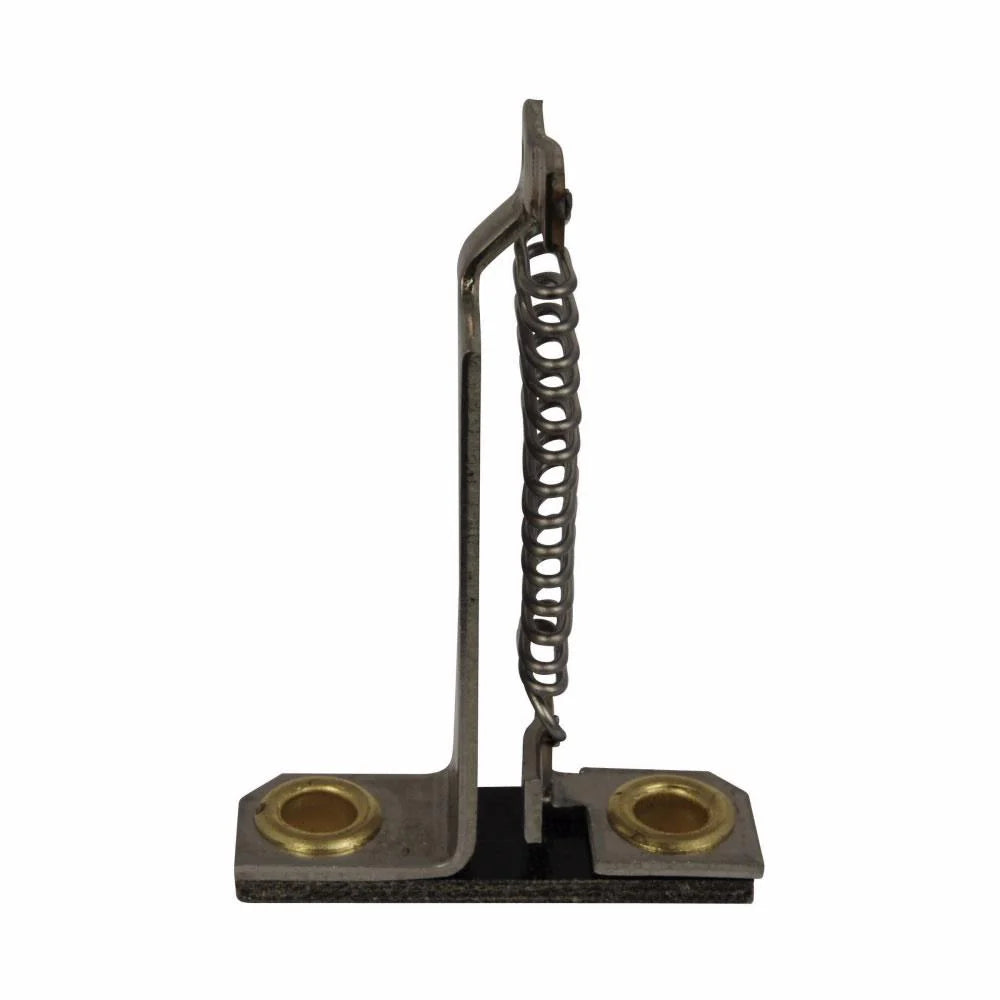

The FH19 is an overload relay heater manufactured by Eaton Cutler-Hammer. It is part of the A200 Series and is suitable for use with starter sizes 0, 1, and 2. The heater is designed with NEMA specifications and features a full load current range of Ambient 1.23-1.34, 1.42-1.55 A, and Non-Comp 1.26-1.37, 1.53-1.67 A. The overload relay types are A and B, and it includes both thermal and fast trip functionalities. The FH19 is UL Listed and CSA Certified. The dimensions of the heater are 8 inches in height, 1.3 inches in width, and 2.1 inches in length.
Technical Specifications
|
Part Number |
FH19 |
|
Category |
Contactors & Starters |
|
Subcategory |
Thermal Overload/Heater |
|
Description |
Heater Element |
|
Ampere Range |
1.14 - 1.55 A |
|
Compatible NEMA Sizes |
2000, 1, 2 |
Information About FH19
The FH19 Overload Relay Heater is a component within the Eaton A200/B100 heater series, specifically engineered for use with starter sizes 0, 1, and 2. Manufactured by Eaton Cutler-Hammer, this heater adheres to NEMA (National Electrical Manufacturers Association) standards. It is designed to provide reliable thermal and fast trip overload protection.
The heater is characterized by its full load current range. For ambient temperature conditions, the full load current ranges are 1.23-1.34 A and 1.42-1.55 A. For non-compensated conditions, the full load current ranges are 1.26-1.37 A and 1.53-1.67 A. These specifications ensure that the heater can effectively manage varying current loads, making it suitable for a range of applications involving starter sizes 0, 1, and 2.
The FH19 heater integrates Type A and B overload relay functionalities. These types are known for their robust performance in protecting electrical circuits from overload conditions. The heater's design includes both thermal and fast trip mechanisms. The thermal trip function responds to prolonged overcurrent conditions by utilizing a bimetallic strip that bends with heat and trips the circuit. The fast trip function is designed to react quickly to sudden, severe overcurrent conditions, providing immediate protection to the circuit.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
