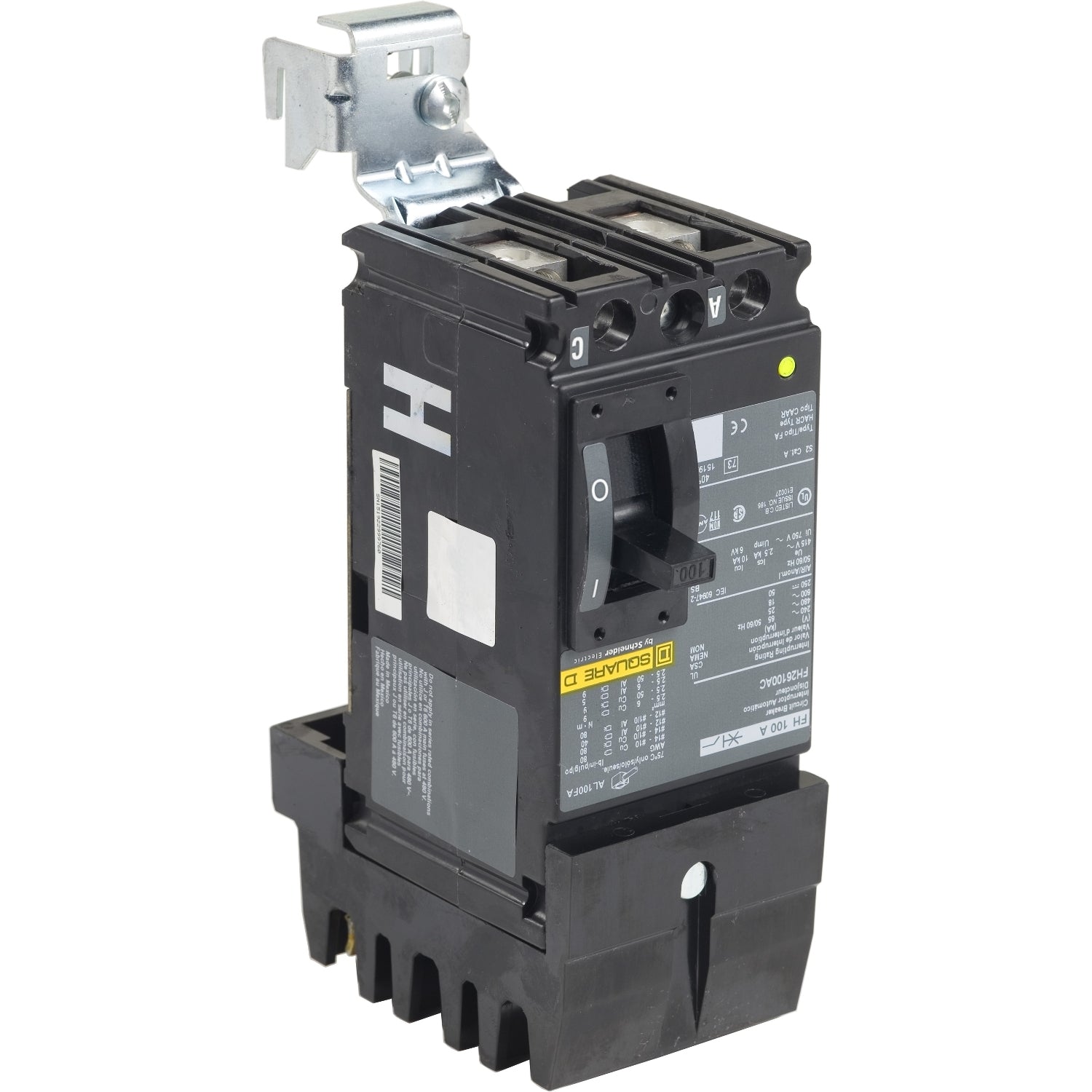

FH26100AC | Schneider Electric I-Line FH 2-Pole 100A 600V Thermal Magnetic Circuit Breaker
- Regular price
- $947.00
- Sale price
- $947.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH26100AC
Description
The Schneider Electric FH26100AC is a molded case circuit breaker designed for single-phase electrical distribution systems requiring durable overcurrent protection. Rated for 600-volt operation with a 100-amp capacity, it supports demanding load applications while maintaining consistent performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FH26100AC |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FH |
| Voltage | 600 V |
| Amperage | 100 A |
| AIC Rating | 25 kA @ 480 V |
| Poles | 2 |
| Phase | 1 |
| Functions | LI – Long-Time and Instantaneous |
| Frame Type | F Frame |
| Protection | Thermal Magnetic |
| Connection | I-Line Style Plug-In |
| Phase Configuration | A & C Phase |
| Interrupting Rating | High |
| Operating Temperature | 40°C |
| Application | Single-phase I-Line distribution systems |
| Mounting Style | I-Line Plug-In |
Information About FH26100AC
The FH26100AC is a molded case circuit breaker developed for Schneider Electric’s I-Line family, offering dependable protection for single-phase electrical systems rated up to 600 volts. As an F Frame device, it provides a 100-amp capacity and incorporates long-time and instantaneous trip characteristics through a thermal magnetic mechanism. Its I-Line style plug-in connection facilitates fast installation and secure engagement within compatible distribution assemblies. With a 25 kA interrupt rating at 480 volts and an A&C phase configuration, the FH26100AC delivers robust performance in applications that require high interruption capability and reliable circuit protection.
Key Features
- Two-pole FH Frame design: Supports single-phase distribution with durable molded case construction.
- 100-amp rating: Handles substantial single-phase electrical loads in I-Line systems.
- Thermal magnetic protection: Offers dependable long-time overload and instantaneous short-circuit response.
- 25 kA interrupt rating: Provides high-level fault-clearing capability at 480 volts.
- I-Line plug-in connection: Ensures quick installation and secure mechanical retention.
- A & C phase configuration: Designed specifically for I-Line single-phase distribution layouts.
- LI trip functions: Supports long-time and instantaneous operating characteristics.
- Industrial-grade build: Suitable for a wide range of commercial and industrial applications.
The FH26100AC delivers the reliability and precision required for ensuring safe and stable operation in single-phase I-Line distribution systems.
