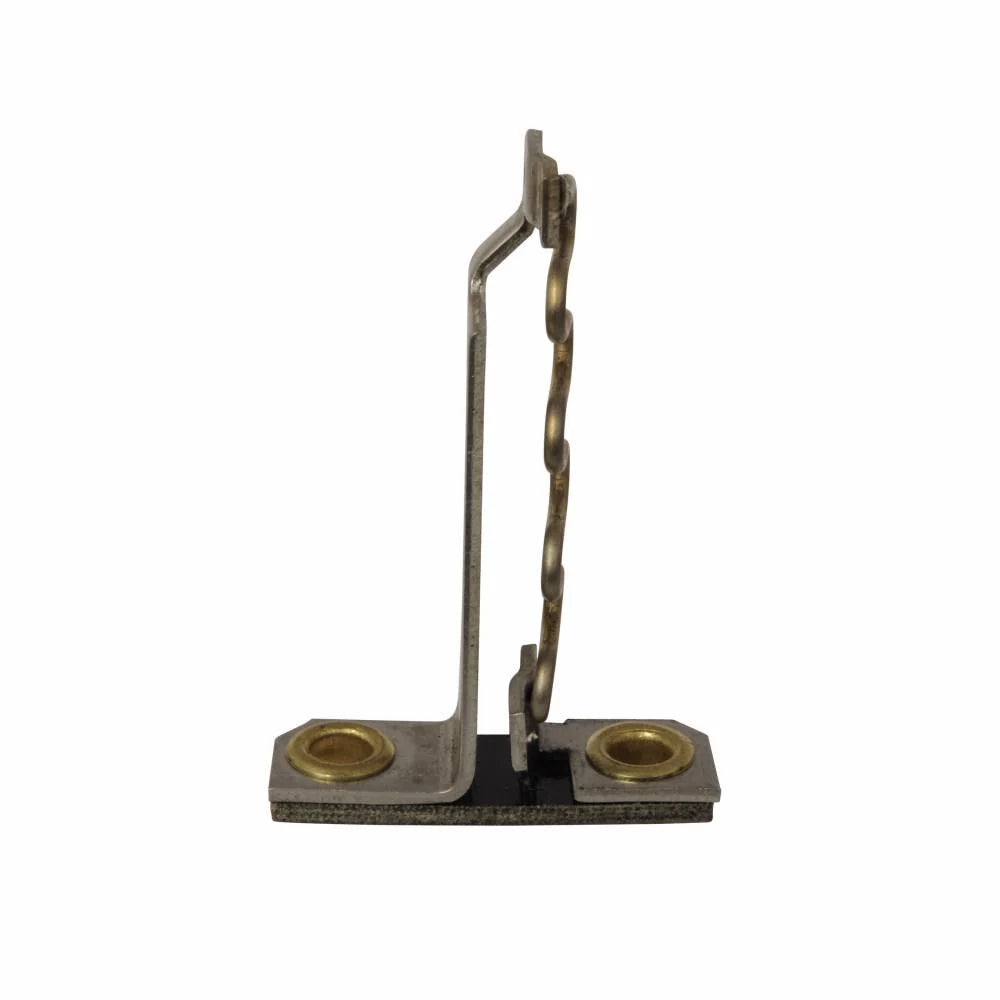

FH33 | Eaton 5–5.5A A200 Series Thermal Overload Heater Element for NEMA Starters
- Regular price
- $29.00
- Sale price
- $29.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH33
Description
The Eaton FH33 is a thermal overload heater element designed for A200 Series motor starters and overload relays. Rated for motors drawing 5 to 5.5 amps, it provides accurate thermal protection to prevent damage caused by sustained overload conditions. The FH33 supports NEMA starter sizes 0, 1, and 2, making it suitable for a wide range of industrial motor control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Contactors & Starters |
| Part Number | FH33 |
| Subcategory | Thermal Overload/Heater |
| Family | A200 Series |
| Type | FH |
| Full Load Amps (Min) | 5 A |
| Full Load Amps (Max) | 5.5 A |
| Design Standard | NEMA |
| Full Load Current Range (Ambient) | 4.40–4.87 A; 5.15–5.6 A |
| Full Load Current Range (Non-Comp) | 4.12–4.55 A; 5.0–5.5 A |
| Overload Relay Compatibility | Type A and Type B |
| Used With | Starter Sizes 0, 1, and 2 |
| Special Features | A200/B100 heater style |
| Trip Type | Thermal and Fast Trip |
| Application | Motor protection in thermal overload relay systems |
Information About FH33
The FH33 is part of Eaton’s A200 Series, a family of thermal overload elements engineered for precise motor protection in NEMA-rated control systems. Its heater design accommodates both ambient-compensated and non-compensated protection ranges, ensuring reliable performance under varying operating conditions. Compatible with Type A and Type B overload relays, the FH33 integrates easily into existing motor control assemblies. With thermal and fast-trip response characteristics, it delivers dependable overload protection for motors within the specified full-load current range.
Key Features:
- A200 Series heater element: Designed for use in Eaton NEMA motor control systems.
- 5–5.5A full-load range: Supports motors requiring medium-level overload protection.
- Thermal and fast-trip action: Provides prompt response to overload conditions.
- Starter size compatibility: Works with NEMA sizes 0, 1, and 2.
- Relay compatibility: Suitable for Type A and Type B overload relays.
- Ambient and non-compensated ratings: Ensures accurate protection in varying environments.
- FH type construction: Standardized heater design for A200/B100 starters.
The FH33 delivers the reliability and precision required for thermal overload protection in NEMA-based motor control systems.
