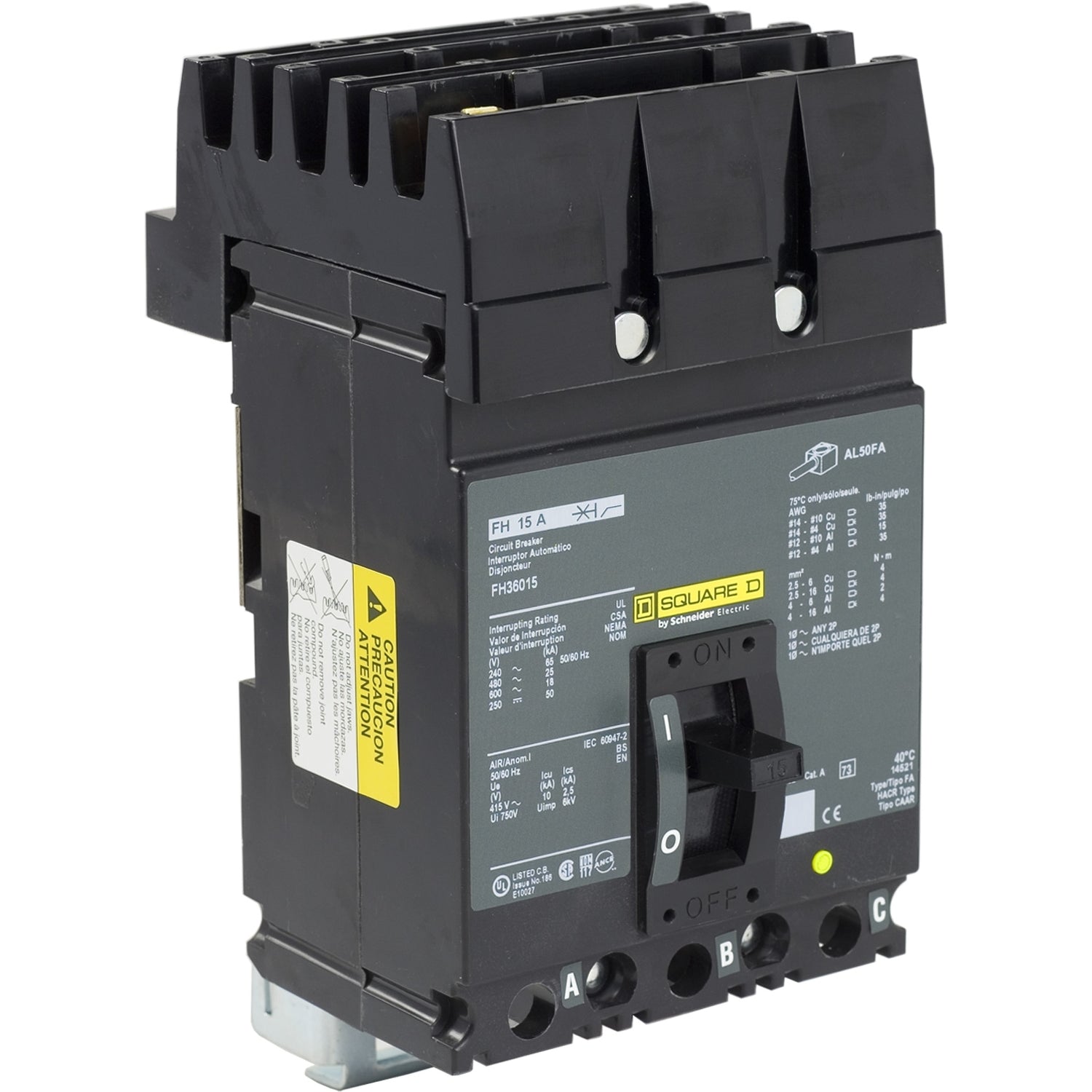

FH36015 | Schneider Electric I-Line 3-Pole 15A Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,075.00
- Sale price
- $1,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FH36015
Description
The Schneider Electric FH36015 is a three-pole molded case circuit breaker designed for protection of three-phase electrical distribution systems. It is rated for 15 amps at 600 volts and provides thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FH36015 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FH |
| Frame Type | F Frame |
| Rated Voltage | 600 VAC |
| Rated Current | 15 A |
| Interrupt Rating | 25 kA at 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | I-Line Style Plug-In |
| Operating Temperature | 40 °C |
Information About FH36015
The FH36015 is part of the Schneider Electric I-Line FH series, engineered for dependable low-voltage power distribution in industrial and commercial environments. It features an F-frame molded case design that provides mechanical durability while maintaining a compact footprint. The non-interchangeable thermal magnetic trip unit delivers consistent long-time overload protection combined with instantaneous short-circuit interruption. This circuit breaker is commonly installed in I-Line panelboards and switchgear where high interrupting capacity and plug-in mounting are required.
Key Features
- Three-pole molded case design: Provides coordinated protection and isolation across all phases in three-phase electrical systems.
- 15 amp continuous current rating: Suitable for low-current branch and control circuits in industrial installations.
- Thermal magnetic protection system: Combines long-time overload sensing with instantaneous magnetic short-circuit response.
- Long-time and instantaneous trip functions: Ensures reliable protection against sustained overcurrent and sudden fault conditions.
- High interrupting capacity: Rated at 25 kA at 480 V for applications with elevated available fault current.
- I-Line style plug-in connection: Enables fast, secure installation into compatible Schneider Electric I-Line distribution equipment.
- F-frame construction: Delivers durability and consistent performance in demanding industrial environments.
The FH36015 delivers the reliability and precision required for protecting three-phase electrical distribution circuits in industrial and commercial power systems.
