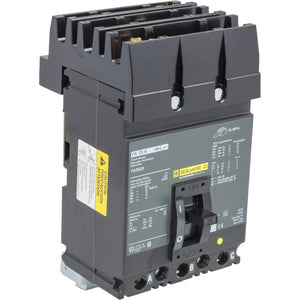

FH36025 | Schneider Electric FH Series Molded Case Circuit Breaker 25A 3-Pole 600V I-Line 25 kAIC
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FH36025
Description
The Schneider Electric FH36025 is a molded case circuit breaker designed to provide reliable overload and short-circuit protection in industrial and commercial electrical systems. This three-pole breaker is rated at 25 A and operates at up to 600 VAC using a thermal-magnetic trip mechanism. The FH36025 features an I-Line plug-on design that supports efficient installation and maintenance in compatible power distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FH36025 |
| Subcategory | Molded Case Circuit Breaker |
| Series | FH Series |
| Frame Type | 100 Amp Frame |
| Current Rating | 25 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Interrupt Rating | 25 kA at 480 V |
| Trip Unit Type | Thermal-Magnetic |
| Connection Type | I-Line Plug-On |
| Protection Type | Overload, Short-Circuit |
| Construction | Molded Case |
| Application | Industrial and Commercial Power Distribution |
Information About FH36025
The FH36025 is part of Schneider Electric’s FH series, developed to deliver dependable circuit protection in demanding electrical distribution environments. It incorporates a molded case construction with a thermal-magnetic trip unit that responds accurately to overload and short-circuit events. The breaker is configured as a three-pole device to protect three-phase circuits commonly used in industrial and commercial installations. Its I-Line plug-on mounting design allows for fast installation, replacement, and maintenance while maintaining secure electrical connections.
Key Features:
- FH Series Molded Case Design: Engineered for durability and stable performance in industrial and commercial power systems.
- Thermal-Magnetic Trip Unit: Provides consistent overload protection and instantaneous response to short-circuit conditions.
- 25 Amp Current Rating: Supports precise protection for lower-current three-phase circuits.
- Three-Pole Configuration: Enables coordinated protection and disconnection of all three phases.
- High Interrupting Capacity: Rated at 25 kA at 480 V to safely interrupt high fault currents.
- I-Line Plug-On Connection: Simplifies installation and servicing in compatible Schneider Electric distribution systems.
- Industrial-Grade Construction: Protects internal components and supports long-term operational reliability.
The FH36025 delivers the reliability and precision required for effective overcurrent protection in Schneider Electric industrial and commercial power distribution applications.
